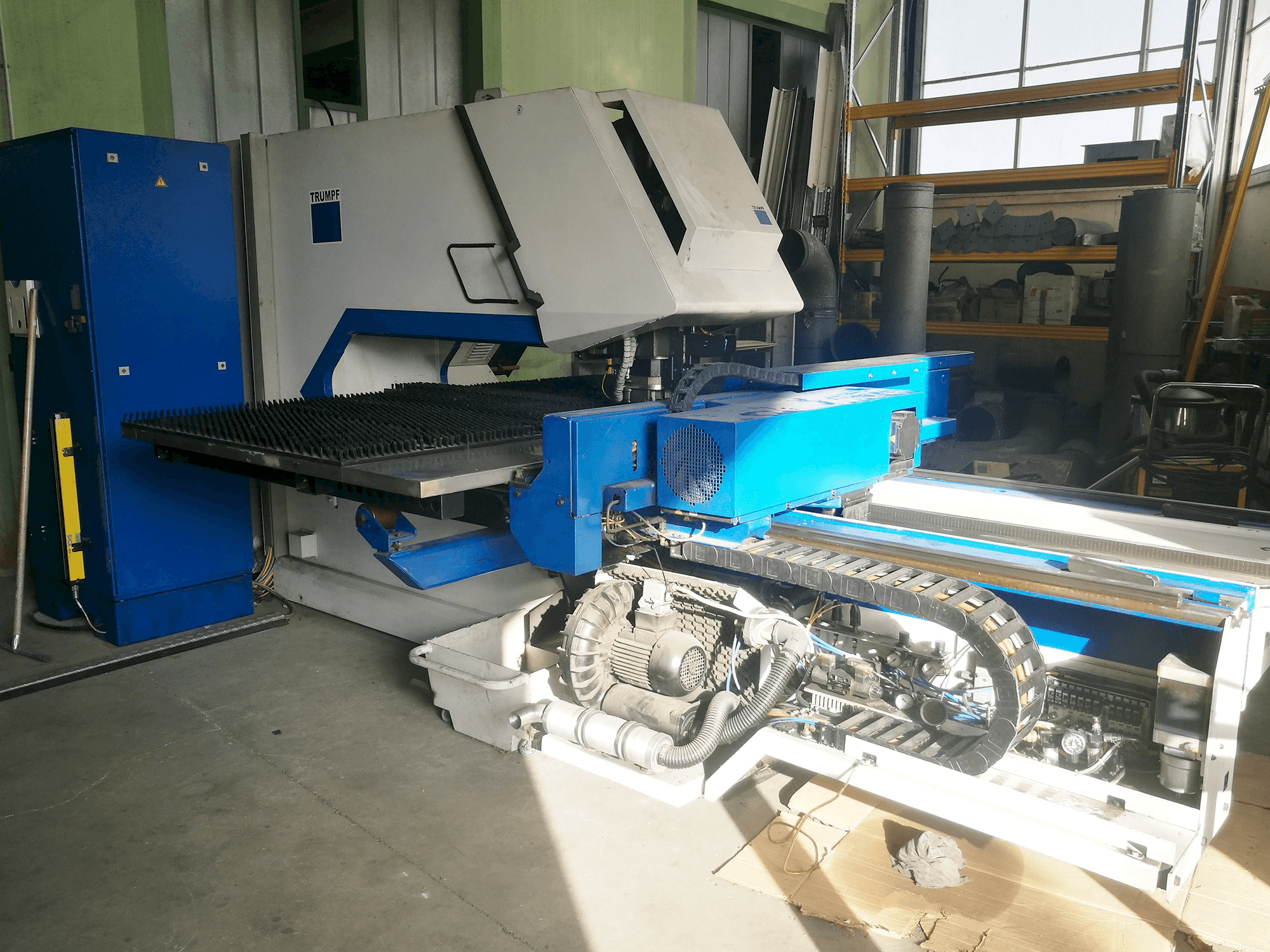

Trumpf Trumatic 2000R Punching Machine

This Trumpf Trumatic 2000R Punching Machine from 2000 was made in Germany and counts with 18402 production hours since then. Operated through a Trumpf Tops 2000 Control unit, this machine includes a punching force of 180 kN. During the past, it has mainly worked with steel and brass up to 2 mm of thickness. It presents good conditions, as it has been serviced by Trumpf Official Service and it has had all its oils and lubricants changed. Additional tools included upon request.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic 2000R
production hours: 18402
application type: Punching
Location: Croatia
machine type: CNC Punch Press
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 2000R

General Data

Measurements width: 3500 mm
Measurements depth: 5000 mm
Measurements height: 2000 mm
Machine weight: 9200 kg

Control Unit

Model: Tops 2000
CNC main language: English
CNC language customizable: Yes
Brand: TRUMPF

Main drive

Punching force: 180 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1270 mm

Max Material thickness

Steel: 6.4 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 17 kVA

Additional Equipment

- tools (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
