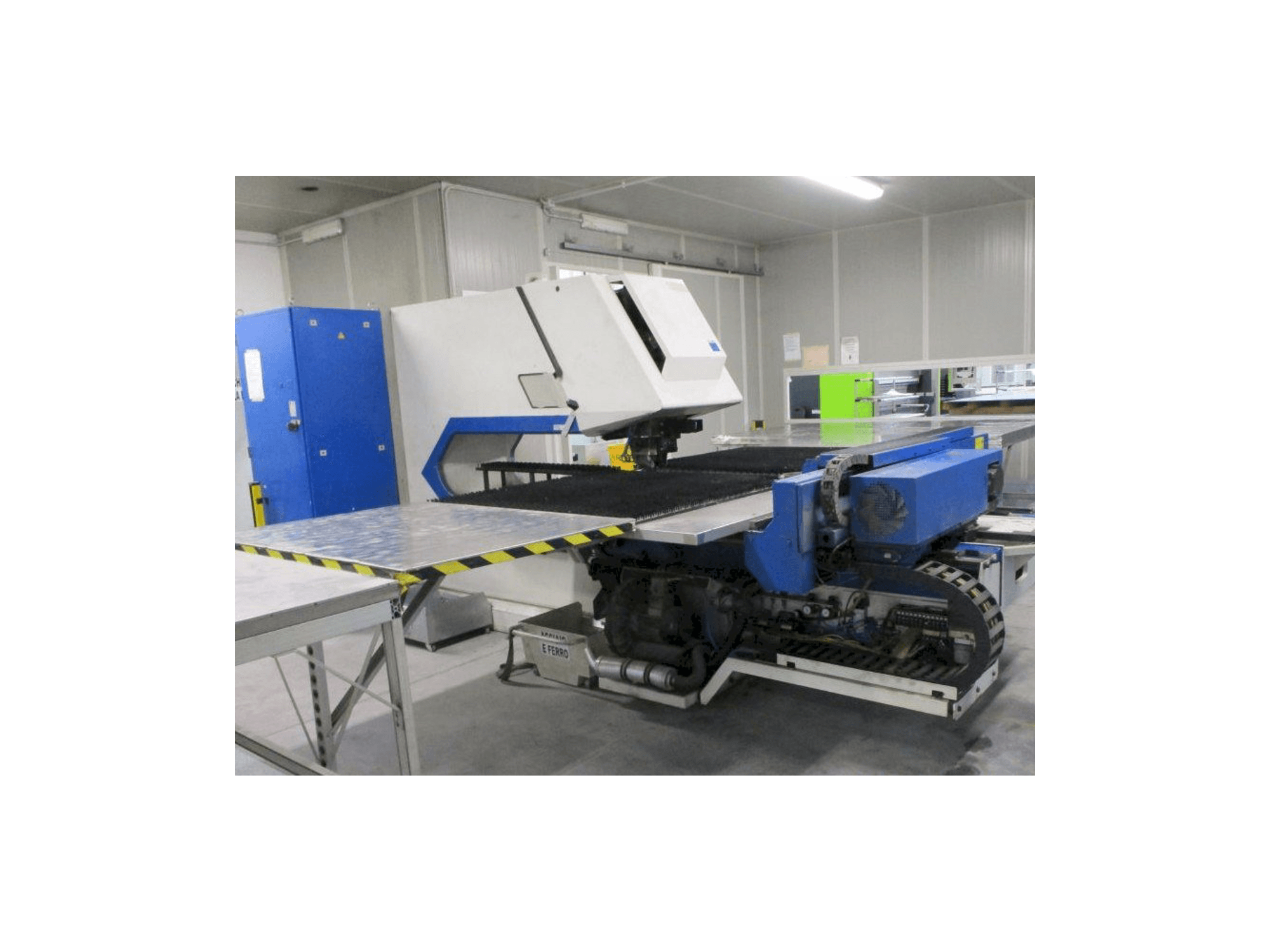

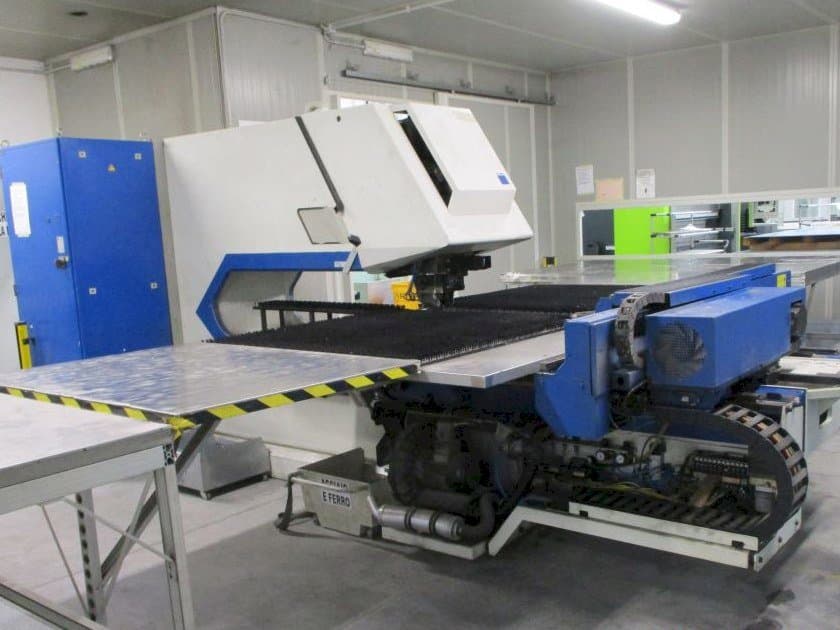

Trumpf Trumatic 2000R Turret Punching Machine

This Trumpf Trumatic 2000R Turret Punching Machine was made in the year 2000 in Germany and has been working for 39329 hours. Operated through a Bosch Type 3 Control unit, this machine can work with a punching force of 180 kN with a maximum sheet thickness of 6.4 mm. It stands out for its 21 punch boxes and 45 punches of various shapes and sizes. Must be noted that the machine is currently inside a soundproof box.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic 2000R
production hours: 39329
application type: Punching
Location: Italy
machine type: Turret Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 2000R

General Data

Measurements width: 4100 mm
Measurements depth: 5700 mm
Measurements height: 2255 mm
Machine weight: 8000 kg

Control Unit

Model: Type 3
Brand: BOSCH

Main drive

Punching force: 180 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 90 m/min MM
Y-AXIS Movement: 60 m/min MM
X-Y-Simultaneous Movement: 108 m/min MM

Workpiece

Workpiece weight: 75 kg

Table

Outer length: 1275 mm
Outer width: 1280 mm

Tools

Slots in storage: 9-90
Max tool diameter: 200 mm

Media

Power consumption: 17 kVA

Additional Equipment

- 21 tool holders
- 45 punches
- soundproof box

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Programmable extractor force 4000-17000 kn
- - 9 tools linear magazine
- - Rotation of all tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
