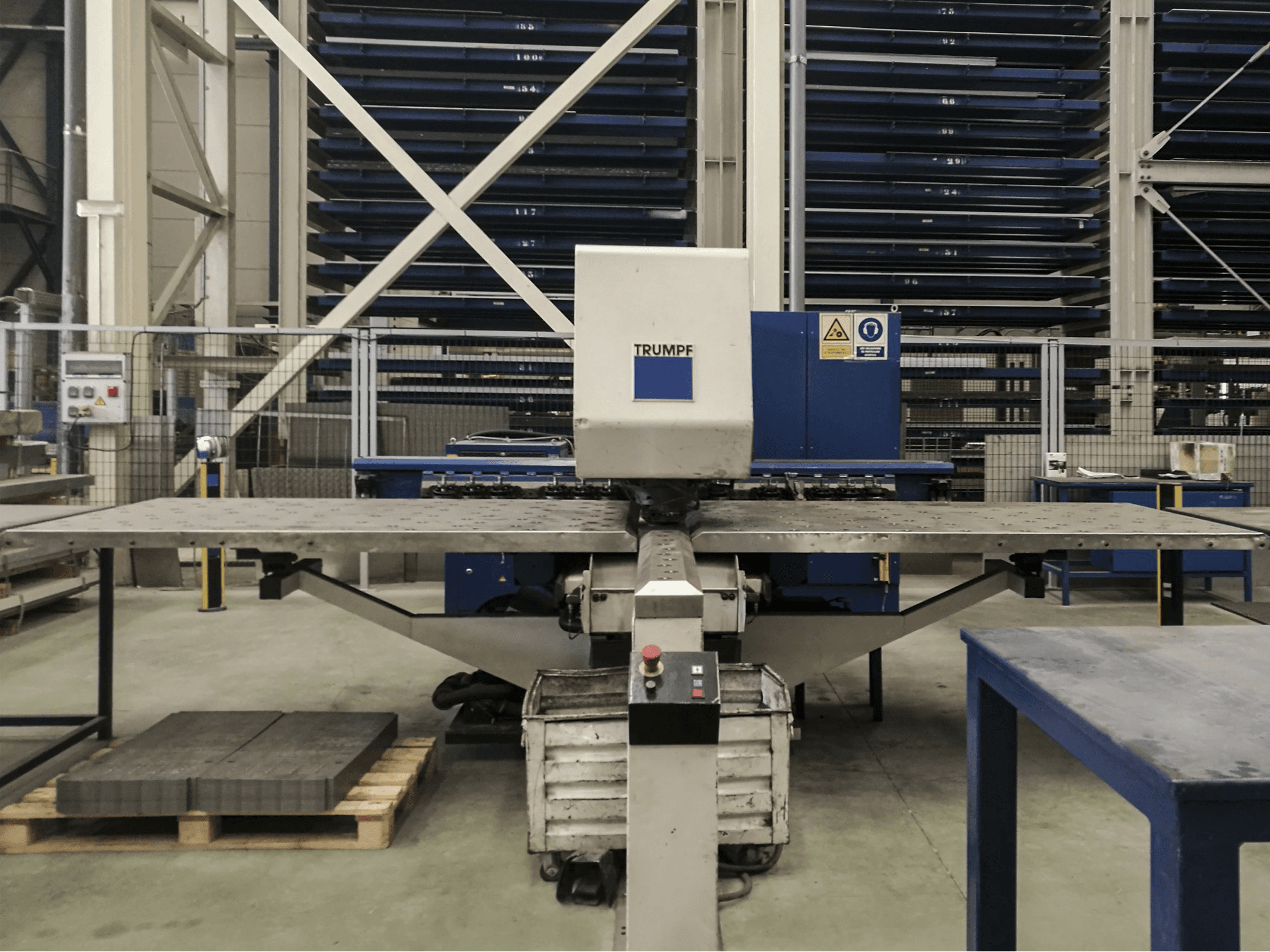

Trumpf Trumatic 200 Turret Punching Machine

This Trumpf Trumatic 200 Turret Punching Machine was manufactured in the year 2001 in Germany and has a working record of 24998 production hours. Equipped with a Bosch Trumagraph CC220 Control unit, this machine stands out due to its versatility and agility and comes with a wide selection of additional tools. In the past, this unit has mainly processed metal sheets up to 4 mm of thickness.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic 200
production hours: 24998
application type: Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 200

General Data

Measurements width: 2440 mm
Measurements depth: 2670 mm
Measurements height: 2080 mm
Machine weight: 8000 kg

Control Unit

Model: Trumagraph CC220
Brand: BOSCH

Main drive

Punching force: 165 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2070 mm
Y-AXIS Movement: 1280 mm

Workpiece

Workpiece weight: 150 kg

Table

Max punching diameter: 76.2 mm

Tools

Number of stations: 15+2

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 14 kVA
Air pressure: 6

Additional Equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
