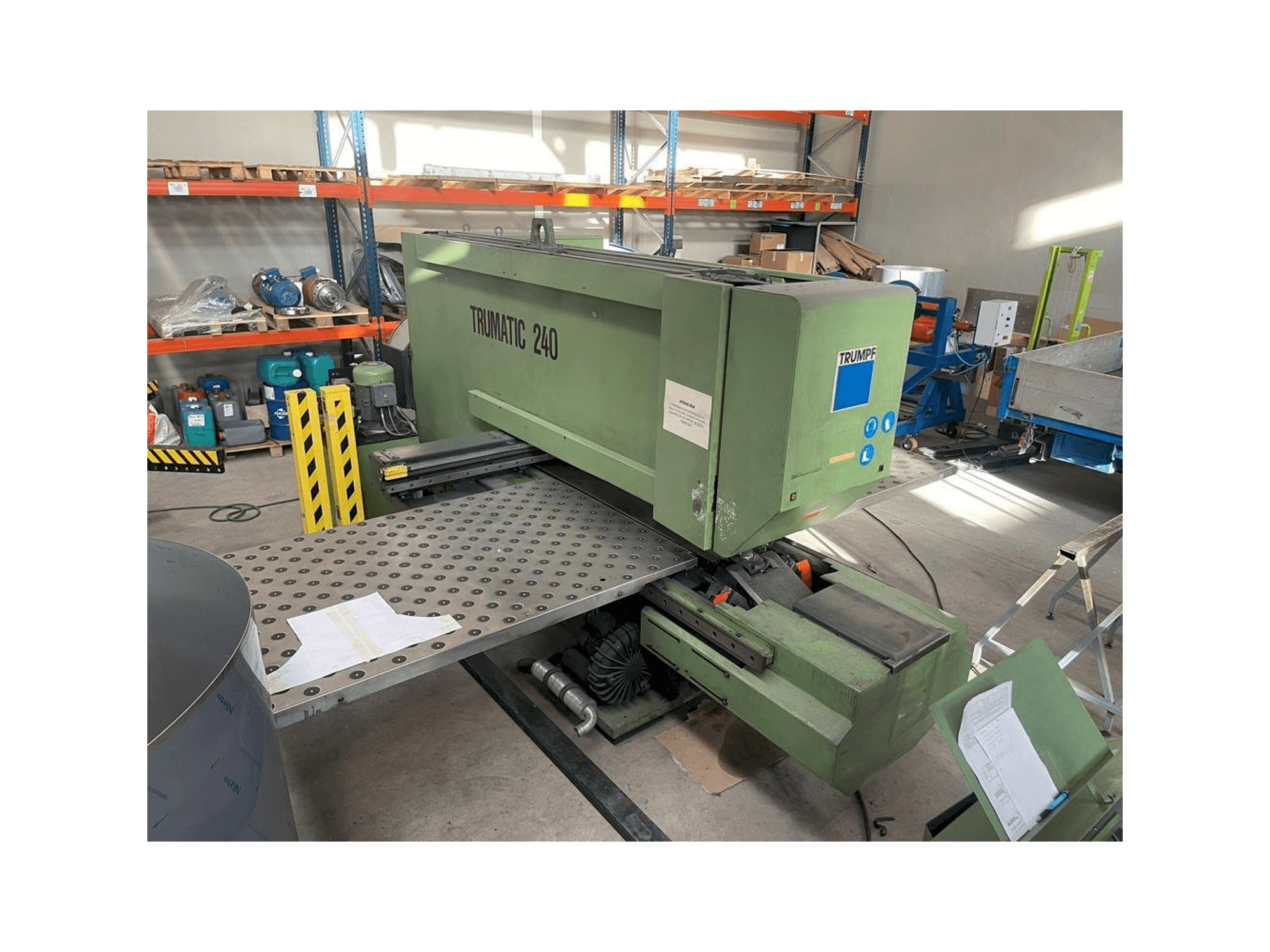

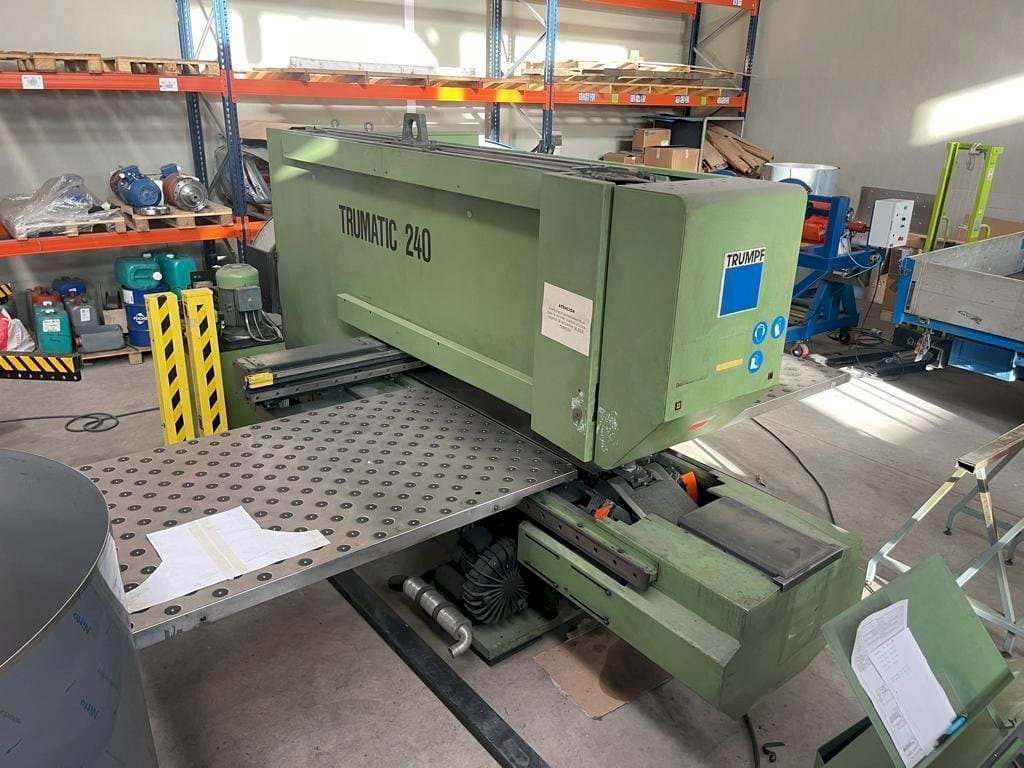

Trumpf TRUMATIC 240 Punching machine

This Trumpf TRUMATIC 240 Punching machine was manufactured in the year 1991 in Germany. It is equipped with a BOSCH TRUMAGRAPH CC300 control unit. The machine has a punching force of 250 kN.

Overview

brand: TRUMPF
year: 1991
MODEL: TRUMATIC 240
application type: Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF TRUMATIC 240

General Data

Machine weight: 9000 KG

Control Unit

Model: TRUMAGRAPH CC300
Brand: BOSCH

Main drive

Punching force: 250 KN
Maximum sheet thickness: 6,4 MM

Movement

X-AXIS Movement: 2000 MM
Y-AXIS Movement: 1000 MM

Workpiece

Workpiece weight: 100 KG

Media

Main electronic connection: 380 V
Power consumption: 23 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 10 tool positions 360º
- - For 2000 x 1000 mm sheets
- - All pneumatic hoses have been replaced
- - The air maintenance unit has been replaced
- - Hydraulic power unit filters changed
- - Hydraulic power unit oil changed
Qualitative Machine Benefits:
- - Good conditions
- - Changed the hoses on the clamp that holds the plates.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
