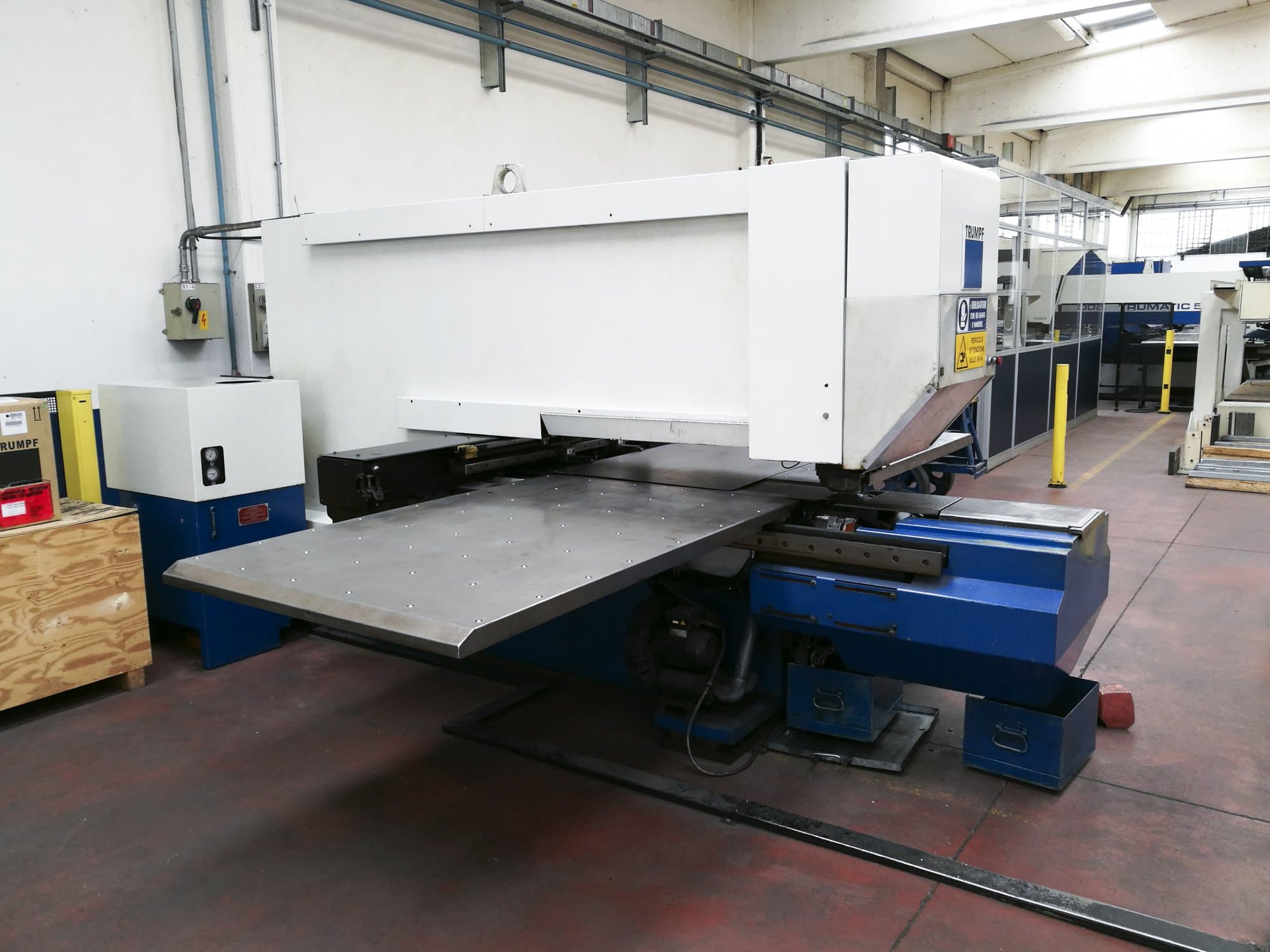

Trumpf Trumatic 240 Turret Punching Machine

This Trumpf Trumatic 240 Turret Punching Machine dates from the year 1989 and has a production history of 33600 working hours. This 250 kN-strong machine operates through a Bosch Trumagraph Control unit (with Ethernet interface). In the past, this solid equipment has worked mostly with up to 3 mm thick steel, but is able to work on up to 6.4 mm thick sheets. As additional equipment, a 10x tool changer and laser security guides are included.

Overview

brand: TRUMPF
year: 1989
MODEL: Trumatic 240
production hours: 33600
application type: Punching
Location: Italy
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 240

General Data

Measurements width: 6500 mm
Measurements depth: 5500 mm
Measurements height: 2300 mm
Machine weight: 8000 kg

Control Unit

Model: Trumagraph
Interface: Ethernet
Brand: BOSCH

Main drive

Punching force: 250 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 1300 mm
Y-AXIS Rapid traverse: 45 m/min

Workpiece

Workpiece weight: 150 kg

Table

Max punching diameter: 76.2

Tools

Number of stations: 10

Media

Main electronic connection: 380 V / 3P / 50 Hz
Power consumption: 19 kVA
Air pressure: 6 bar
Oil tank: 200 L
Oil pressure: 170 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
