TRUMPF - Trumatic 500DE-PUN-TRU-1999-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

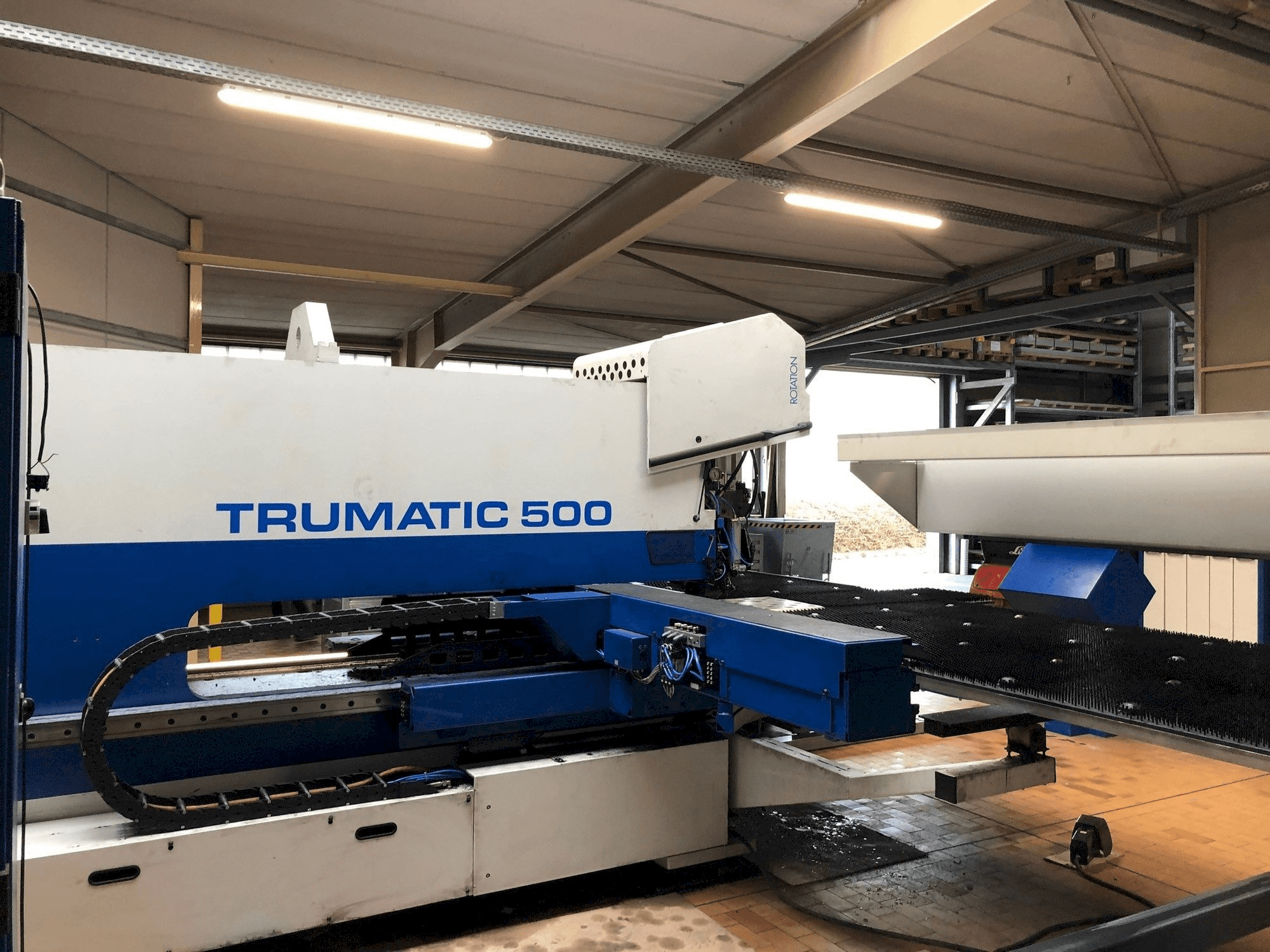

This Trumpf Trumatic 500 Punching Machine was manufactured in the year 1999. It has been working for approximately 68000 hours. It is equipped with a TRUMPF TRUMAGRAPH CC 220S control unit. This machine can work with a punching force 220 kN and a max. sheet thickness 8 mm. It includes several equipment as many tool inserts, two tapping dies and various smaller spare parts. This machine has been maintained from the beginning with "Classic Maintenance Contract" by Trumpf (2x annual maintenance).

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic 500
production hours: 68000
application type: Punching
Location: Germany
machine type: Punch-Laser Combination
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 500

Control Unit

Model: TRUMAGRAPH CC 220S
Brand: TRUMPF

Main drive

Punching force: 220 kN
Maximum sheet thickness: 8 mm
Max Sheet length: 3085 x 1650 MM

Workpiece

Workpiece weight: 230 kg

Additional Equipment

- 4x Multitool 6-fold
- 2x Multitool 4-fold incl.
- many tool inserts and two tapping dies
- various smaller spare parts
- Stable C-frame
- Coordinate guide with integrated linear magazine
- 17 tool stations, automatic tool change
- Drives: Maintenance-free three-phase servo motors
- Programmable blank holder for repositioning
- for all tools, automatic tool length compensation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max punching 1700 1/min
- - Accuracy +/- 0. 1mm
- - Repeatability +/- 0. 03mm
- - Punching head: hydraulic mono tool holder, 360° rotation
- - Tool spray lubrication, programmable stripper movement
- - Punching slug extraction
- - Safety: ce marking, multi-beam light barriers
- - Quick shutdown hydraulics
- - Equipment with brush tables (for max. Sheet thickness s=4 mm)
- - Extension of the part program memory to 448 kb
Qualitative Machine Benefits:
- - Machine from the beginning with "classic maintenance contract" by trumpf (2x annual maintenance)
- - Preparation for extension trumasort r4
- - Sheetmaster 1600 4-fold chainfinger
- - Residual sheet disposal unit trumagrip with scissor lift table
- - Sheet thickness gauge for double sheet control
- - Control system tasc 100
- - Stop system for loading pile w. Spreading magnets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
