TRUMPF - Trumatic 500HR-PUN-TRU-1995-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

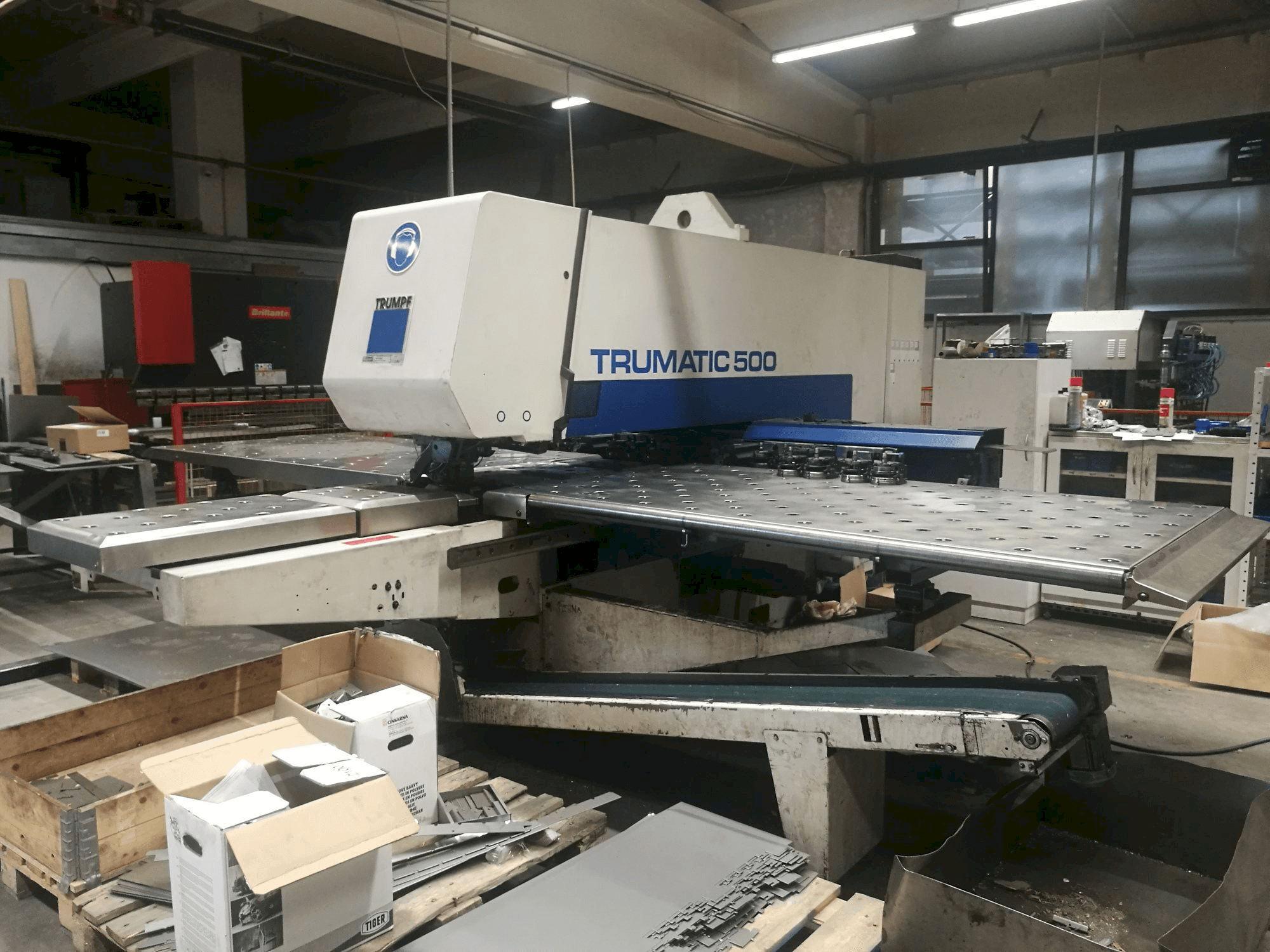

Trumpf Trumatic 500 Punching Machine

This Trumpf Trumatic 500 Punching Machine was manufactured in Germany in the year 1995. It is operated with a Bosch CC 200 S control unit. This machine works with a punching force of 220 kN and a maximum sheet thickness of 8 mm.

Overview

brand: TRUMPF
year: 1995
MODEL: Trumatic 500
application type: Punching
Location: Croatia
machine type: CNC Punch Press
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 7000 mm
Measurements depth: 6000 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: CC 200 S
CNC main language: English
Brand: TRUMPF

Main drive

Punching force: 220 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1300 mm

Workpiece

Workpiece weight: 150 kg

Tools

Number of index: 1
Slots in storage: 31

Media

Main electronic connection: 400 V
Power consumption: 19 kVA
Chip conveyor: Yes

Additional Equipment

- Sheetmaster
- PC with Trutops software V15
- 6 sheetholders
- 2 Multitools x 6 places = 12 + 19 free places, totals 31

Additional Information

Machine history

Material type: Steel
material thickness: 2 mm
End product: Metal furniture
Industries: Interiors

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
