- TRUMPF Trumatic 6000 L + Sheetmaster Laser punch combination machine

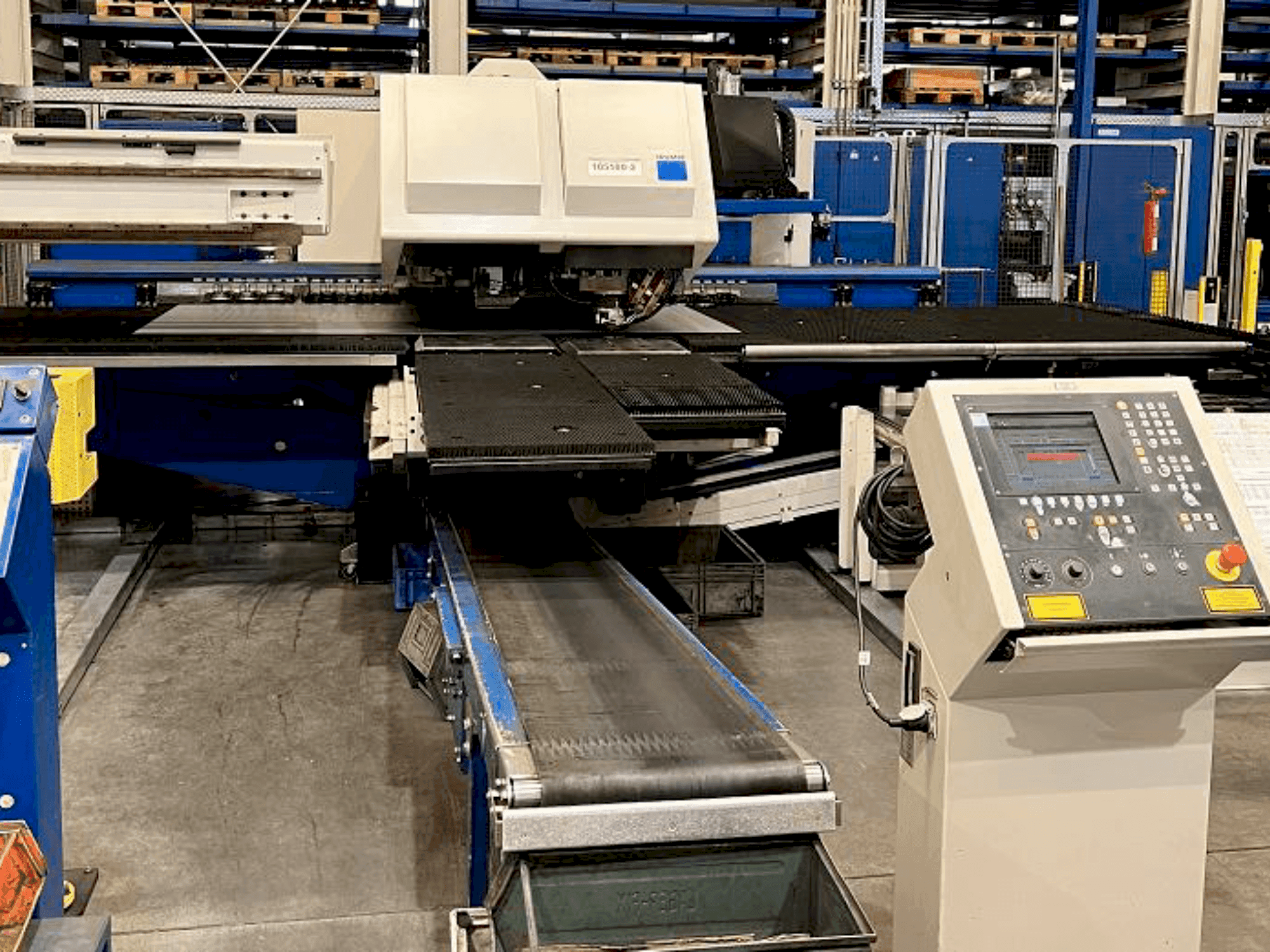

This TRUMPF Trumatic 6000 L + Sheetmaster Laser punch combination machine was manufactured in the year 2005. It is equipped with a 3.2 kW laser and a SIEMENS SINUMERIK 840D control unit. The TruMatic 6000 seamlessly combines advanced laser cutting and punching technology to deliver exceptional speed and precision for all your sheet metalworking needs.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: Trumatic 6000 L + Sheetmaster
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - TRUMPF Trumatic 6000 L + Sheetmaster
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840D
Main drive
- Laserpower: 3.2 KW
Table
- Outer length: 2585 mm
- Outer width: 1650 mm
Tools
- Slots in storage: 21
Additional Information
- Technical Machine Benefits:
- - Working area: 2585 x 1650 mm, sturdy c-frame
- - Coordinate guide with integrated linear magazine, 21 places for tools and 3 clamping claws, 3 clamping claws- drives: maintenance-free three-phase servomotors
- - Programmable hold-down device for repositioning, sensor-monitored parts chutes 500 x 500 mm for punching and laser station, print cylinder on laser chute
- - Laser unit: high-frequency excited co2 laser tlf 2000, vibration-insulated, integrated in machine frame, incl. Cooling unit and laser control dias 3, hi-las® high-pressure cutting, contourlas® for the production of small perforations, programmable cutting gas pressure setting, laser cutting head: 5" lens, quick-change device, apc distance control, lens monitoring sensor system, additional cutting head with 7. 5" lens
- - Punching head: hydraulic mono tool holder, 360° rotation for all tools, automatic tool length compensation, tool spray lubrication, 2nd lubricant holder, punching slug extraction system
- - Sinumerik 840d control, tft color screen 10. 4", simple operation, online help, diagnostic functions, maintenance logbook, technology data, order tables, teleservice, 3. 5" floppy disk drive, rj45 network connection
- - Safety: multi-beam light barriers, quick shut-off hydraulics, suction and compact dust extractor, protective device against stray radiation on the cutting head
- - Configuration: voltage 400 v, frequency 50 hz, electrical regulation iec, standard color ral9002/5010, laser tlf 3200 incl. 9" cutting head for stainless steel
- - Functions: autolas plus multitool, multl bend function tapping, signing/quick beading function rolling technology, softpunch
- - Repositioning cylinder
- Qualitative Machine Benefits:
- - Trl sheetmaster 1606, trumalift sheetmaster, (included in sheetmaster) unloading monitoring system trumagrip 3000x1500
- - 3.2 kW laser
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
