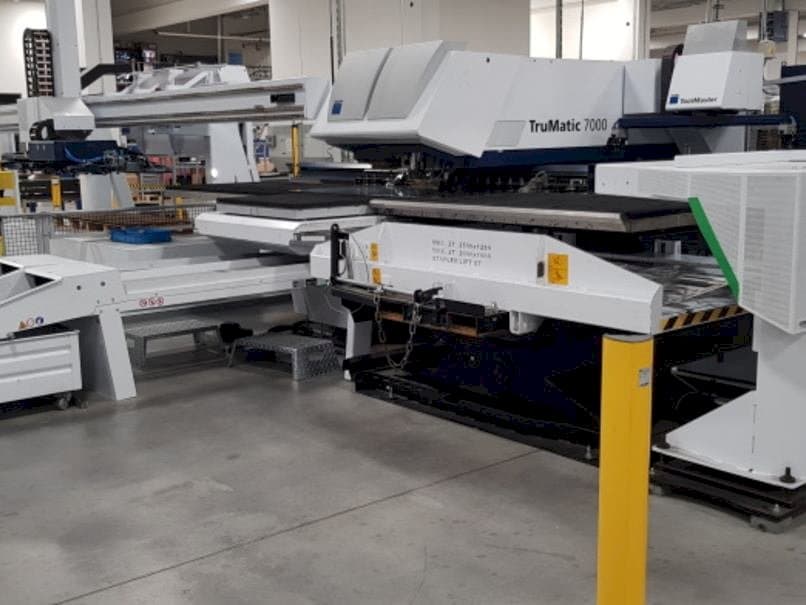

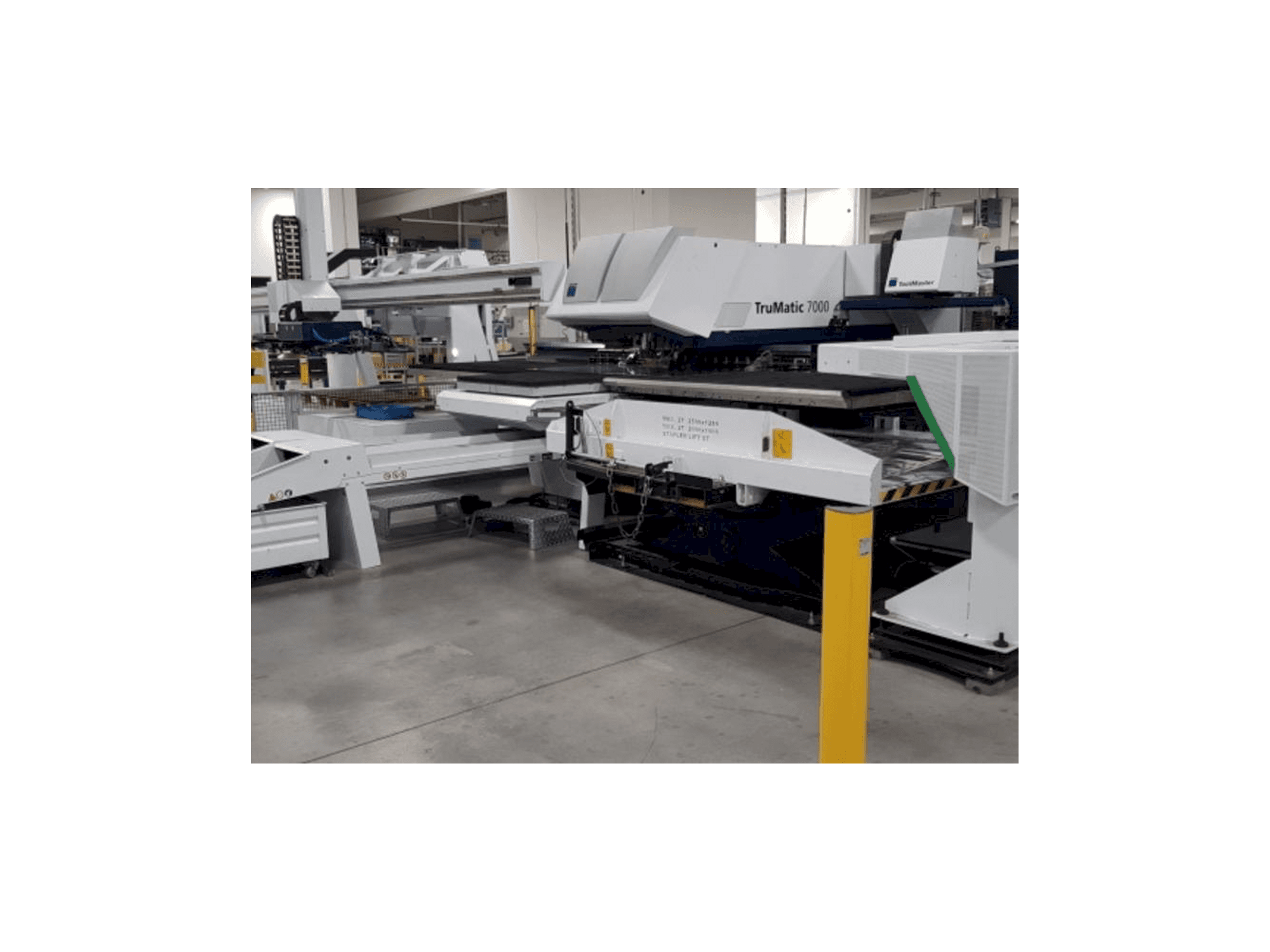

Trumpf Trumatic 7000 Laser Punch Combination

This Trumpf Trumatic 7000 Laser Punch Combination Machine was manufactured in Germany in the year 2016. This machine can work with a punching force of 220 kN and a laser power of 3,2 kW. It includes a software options, and tooling.

Overview

brand: TRUMPF
year: 2016
MODEL: Trumatic 7000
application type: Punching
Location: Czech Republic
machine type: Punch-Laser Combination
availability: Sold

Technical Information - TRUMPF Trumatic 7000

Main drive

Laserpower: 3,2 kW
Laser type: CO2
Punching force: 220 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece weight: 200 kg

Tools

Slots in storage: 22

Max Material thickness

Steel: 8 mm
Stainless steel: 8 mm
Aluminum: 6 mm

Media

Main electronic connection: 400 V 50 Hz
Power consumption: 82 kVA

Additional Equipment

- Software options
- Tooling

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool master
- - Sheet master
- - Max. Stroke rate: punching 1200 1/min; marking 3000 1/min
- - Active die
- - Automatic nozzle changer
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
