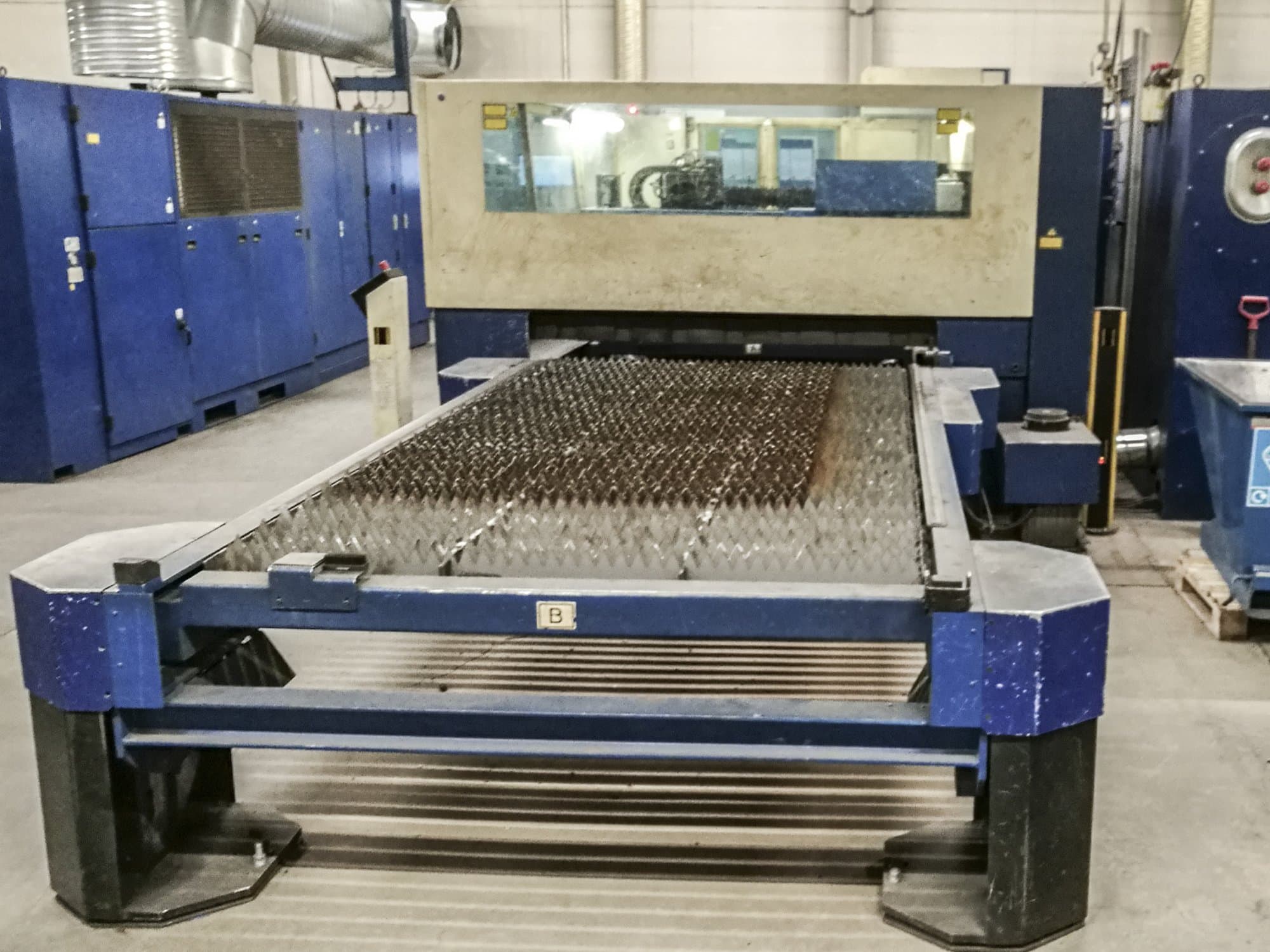

Trumpf Trumatic L3050 Laser Cutting Machine

This Trumpf Trumatic L3050 Laser Cutting Machine was built in 2001 in Germany and has a working record of 78583 production hours, respectively 37960 laser hours since then. Equipped with a SIEMENS SINUMERIK 840D Control unit and a TLF 5000 turbo laser unit, this machine has mainly worked with steel sheets during the past.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic L3050
production hours: 78583
application type: Cutting
Location: Estonia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 4600 mm
Measurements depth: 11100 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Laserpower: 5 kW
Laser brand: TLF 5000 turbo

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1580 mm
Workpiece z: 123 mm
Workpiece weight: 900 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 128 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
