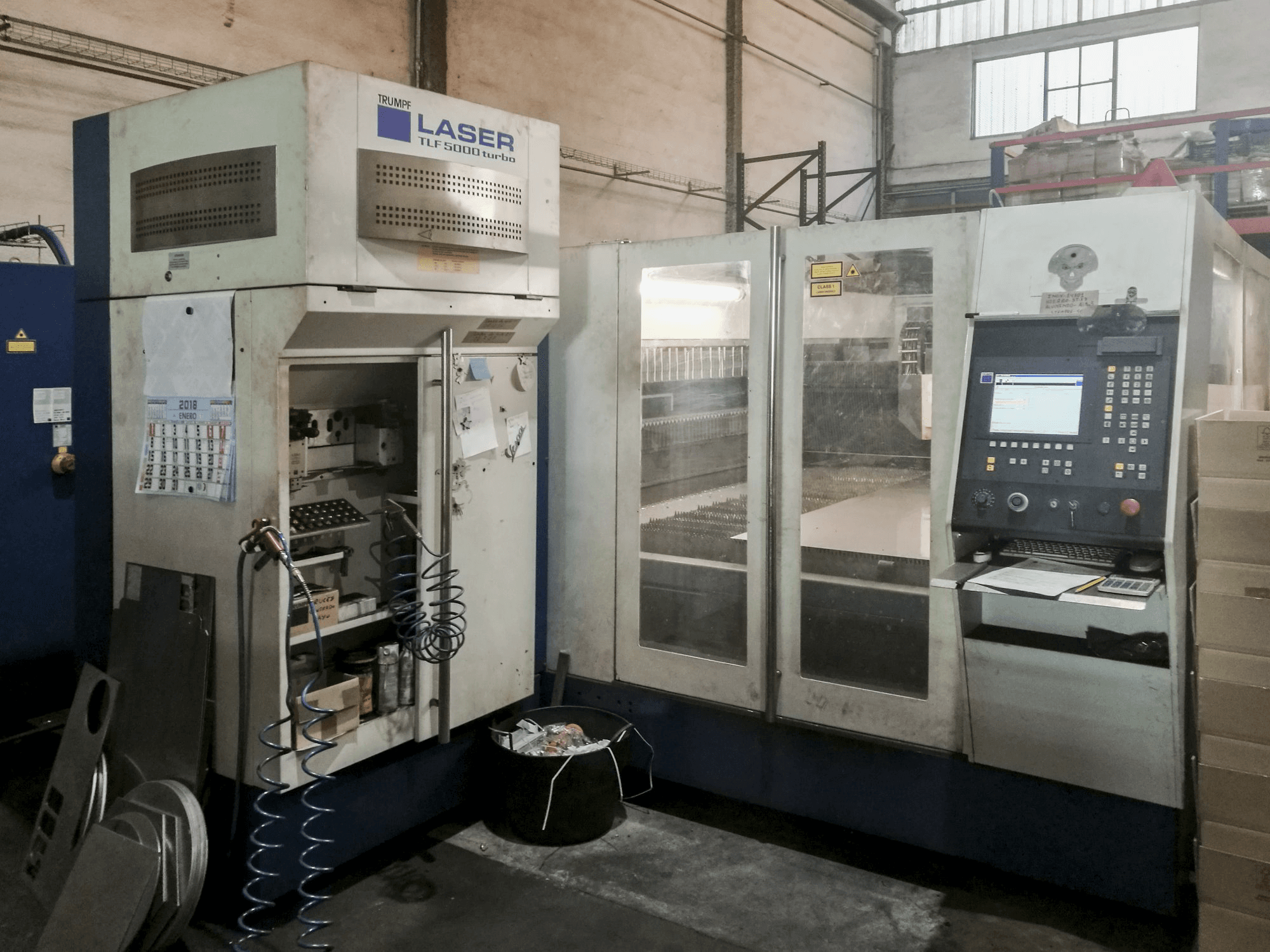

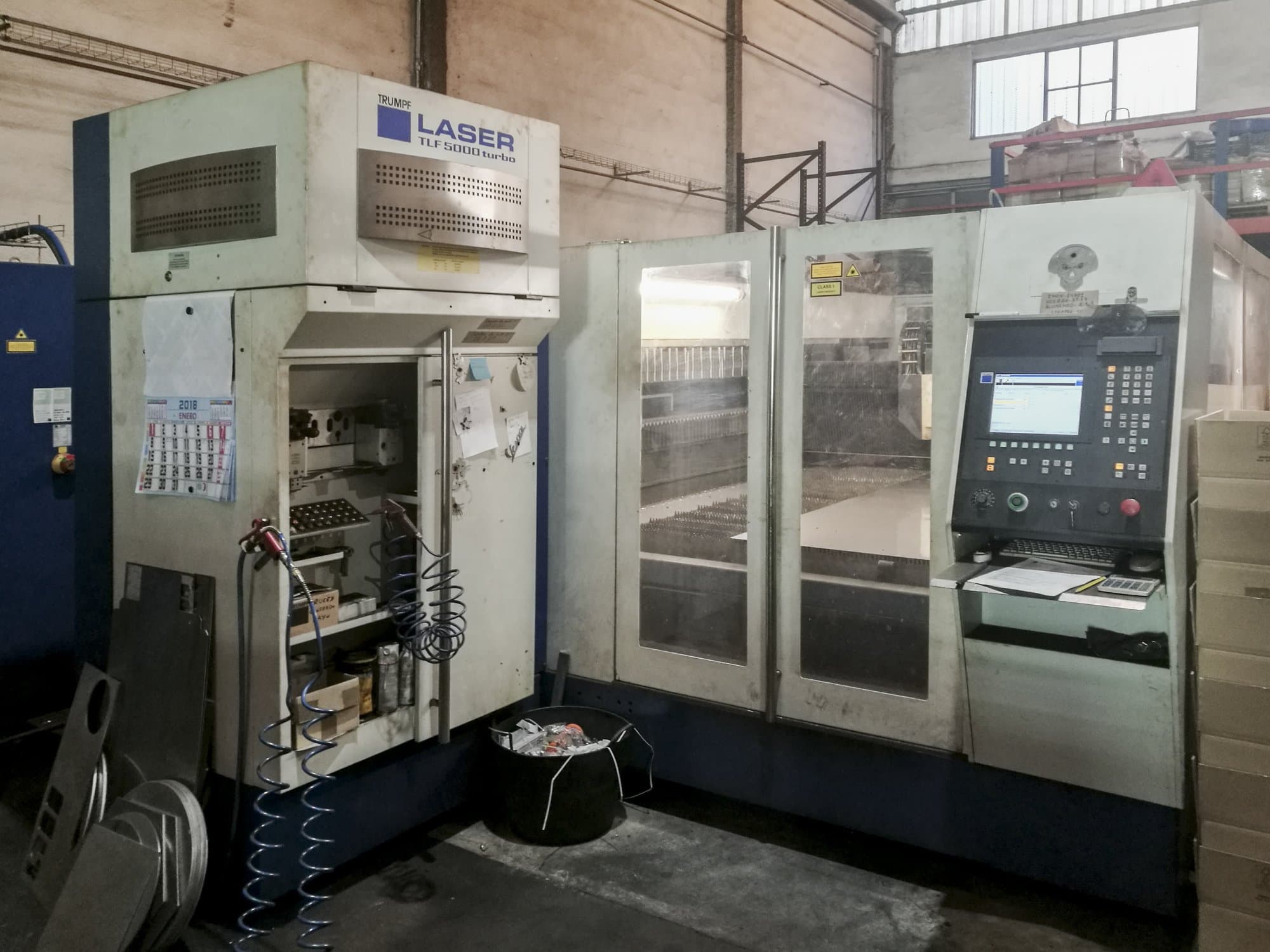

This Trumpf Trumatic L3050 Laser Cutting Machine from 2002 was manufactured in Germany and has a working record of 51731 laser hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine comes in a very good condition as it was regularly inspected. The big working table size as well as the powerful laser make this machine a strong system, able to cut metal sheets up to 25 mm of thickness.
Overview
- brand: TRUMPF
- year: 2002
- MODEL: Trumatic L3050
- production hours: 51731
- application type: Cutting
- Location: Spain
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - TRUMPF Trumatic L3050
General Data
- Measurements width: 11100 mm
- Measurements depth: 4600 mm
- Measurements height: 2400 mm
- Machine weight: 12000 kg
Control Unit
- Brand: Siemens
- Model: SINUMERIK 840D
Main drive
- Laserpower: 5 kW
- Laser type: CO2
- Laser brand: TLF 5000T
Movement
- X-AXIS Movement: 3130 mm
- Y-AXIS Movement: 1580 mm
- Z-AXIS Movement: 123 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
- Workpiece z: 100 mm
- Workpiece weight: 900 kg
Media
- Main electronic connection: 3x 400V
- Power consumption: 105 kVA
- He consumption: 780 l/h
- CO2 consumption: 60 l/h
- N2 consumption: 360 l/h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
