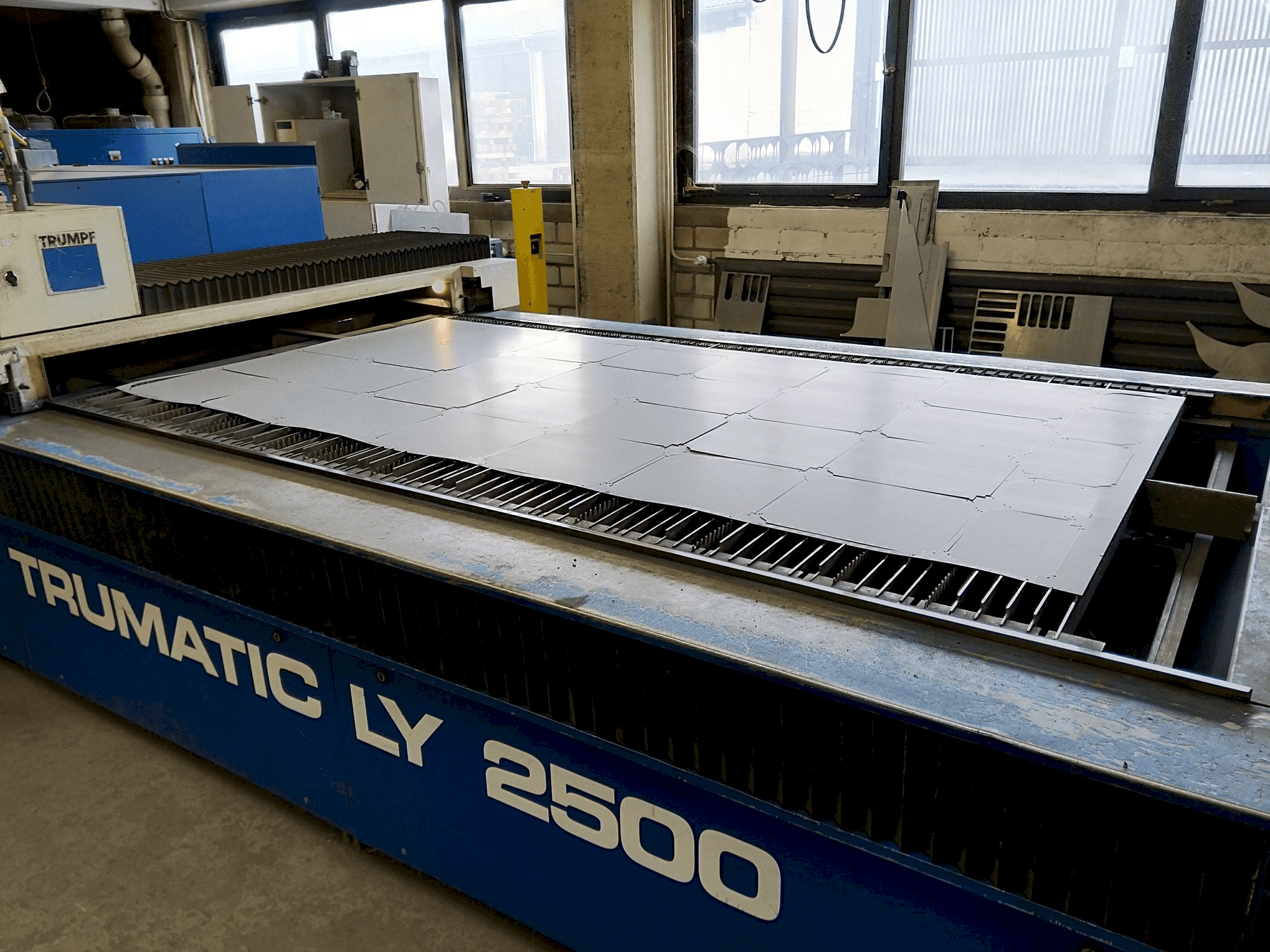

Trumpf Trumatic LY2500 Laser Cutting Machine

This Trumpf Trumatic LY2500 Laser Cutting Machine was built in 1997 in Germany and has been operative for 35436 hours. Equipped with a Trumpf Trumagraph CC 220 S Control unit, this machine is capable of cutting steel up to 10 mm of thickness.

Overview

brand: TRUMPF
year: 1997
MODEL: Trumatic LY2500
production hours: 35436
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic LY2500

General Data

Measurements width: 7000 mm
Measurements depth: 4300 mm
Measurements height: 1800 mm
Machine weight: 5000 kg

Control Unit

Model: Trumagraph CC 220 S
Brand: TRUMPF

Movement

Z-AXIS Movement: 100 mm

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 2500 mm
Outer width: 1250 mm

Max Material thickness

Steel: 10 mm
Stainless steel: 3 mm
Aluminum: 3 mm

Media

Power consumption: 45 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max concurrent speed 84 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
