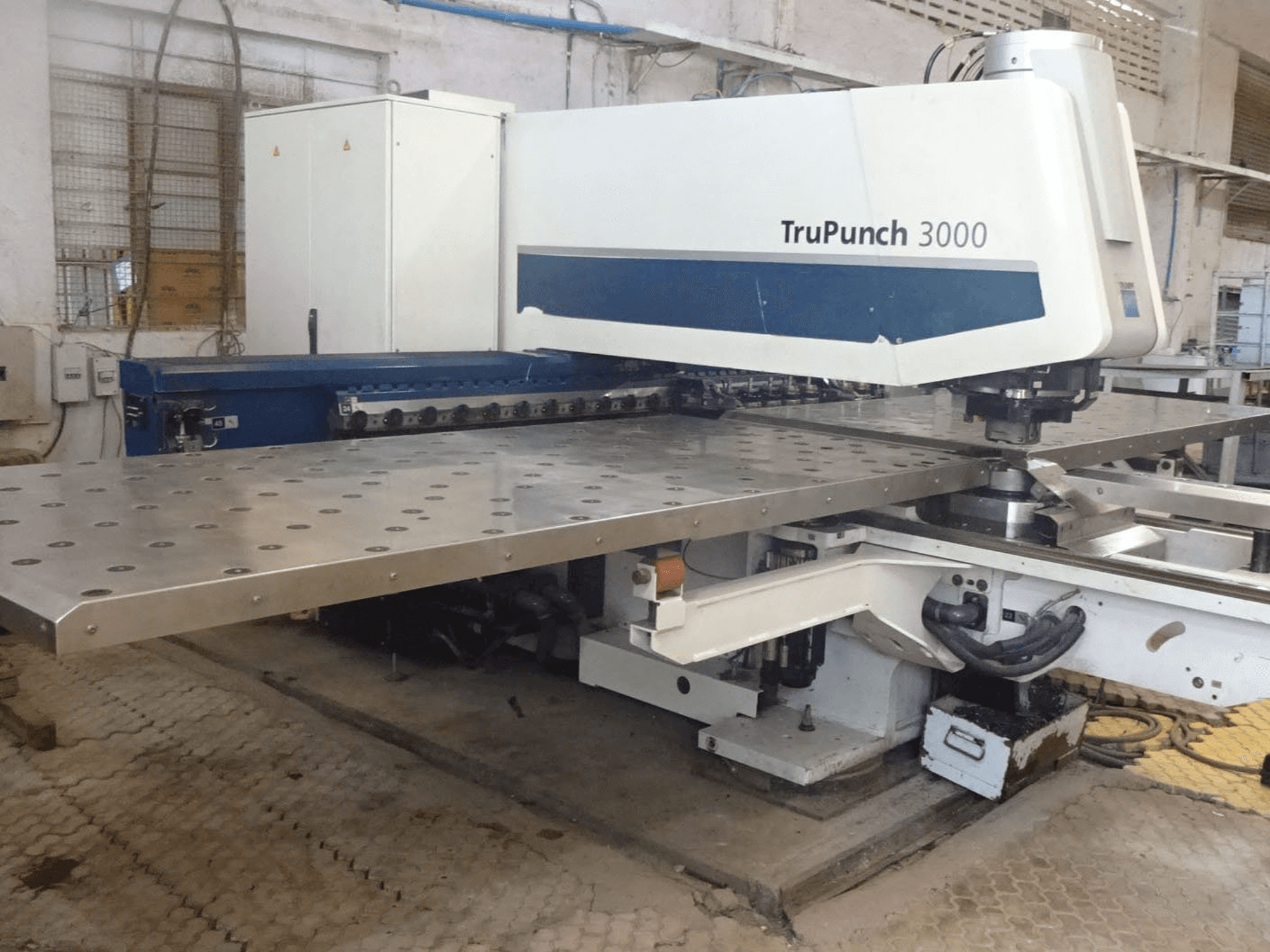

Trumpf TruPunch 3000 Punching Machine

This Trumpf TruPunch 3000 Punching Machine from 2012 was manufactured in Germany and counts with a production record of 20000 working hours. Operated through a Bosch Control unit, this innovative machine stands out for its dynamic electric punching head with fast rotation and high stroke rates. Moreover, it incorporates a skeleton-free processing that saves material and increases process safety.

Overview

brand: TRUMPF
year: 2012
MODEL: TruPunch 3000
production hours: 20000
application type: Bending & Punching
Location: India
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF TruPunch 3000

General Data

Measurements width: 5500 mm
Measurements depth: 4500 mm
Measurements height: 2200 mm

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: BOSCH

Main drive

Punching force: 200 kN
Maximum sheet thickness: 4 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece weight: 160 kg

Tools

Number of index: 20
Number of stations: 20

Max Material thickness

Steel: 4 mm
Stainless steel: 2 mm
Aluminum: 3 mm

Media

Main electronic connection: 400 V
Power consumption: 18 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
