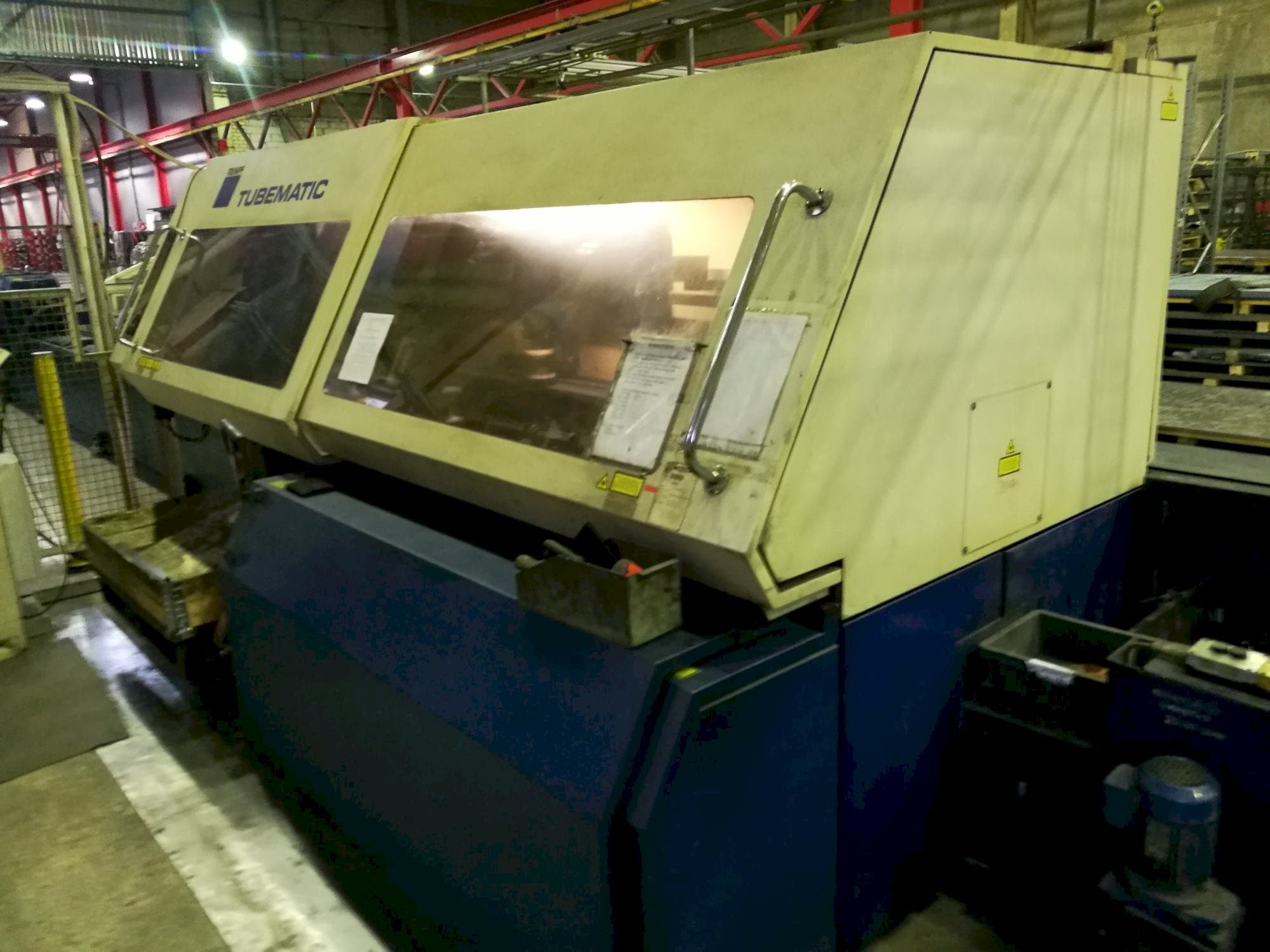

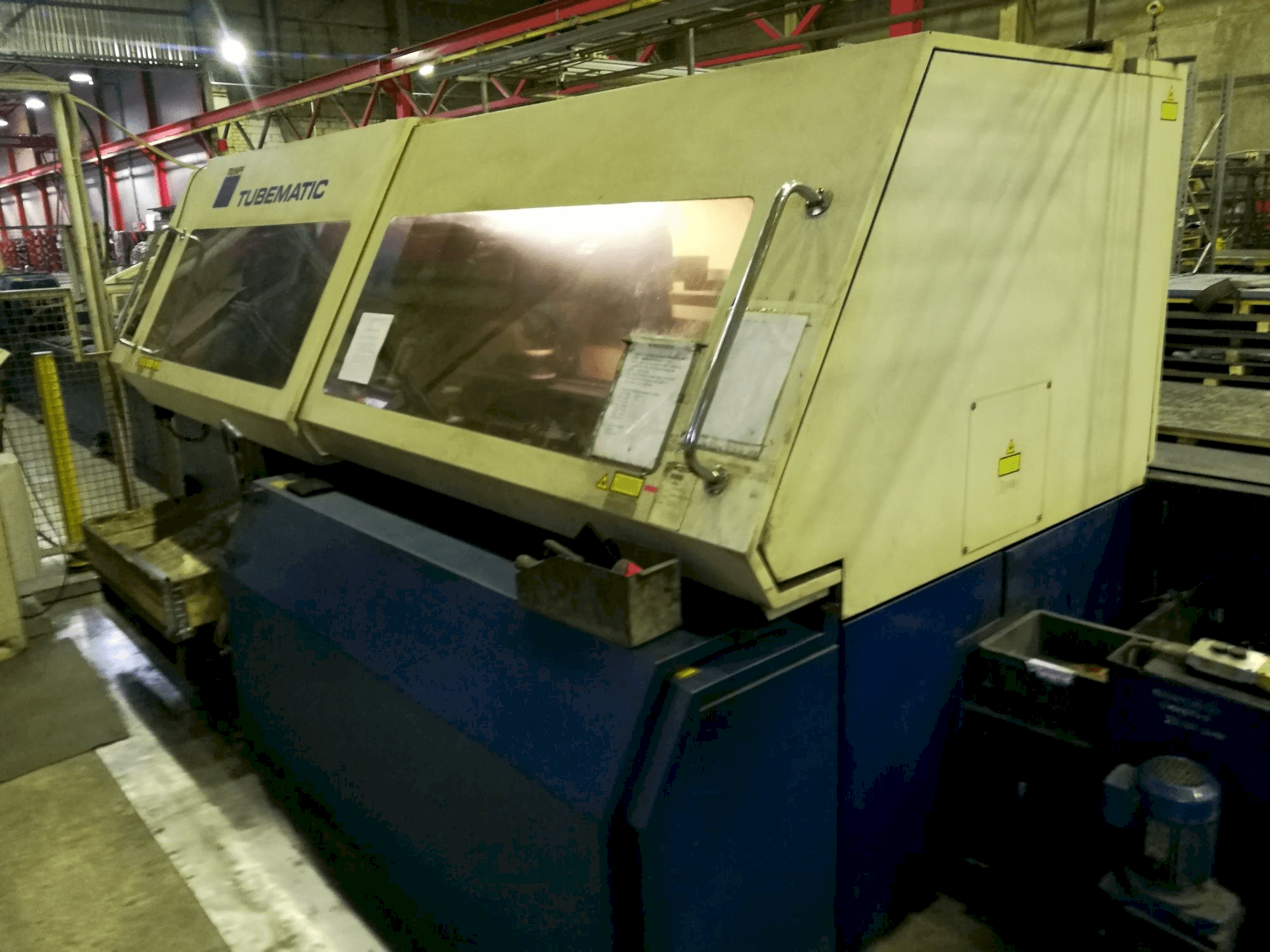

Trumpf Tubematic Laser Cutting Machine

This Trumpf Tubematic Laser Cutting Machine was manufactured in the year 2000 in Germany and has been working for 98664 hours. Equipped with a control unit of the same brand, this machine can perform with a laser power of 2.4 kW. During the past, it has mainly been used for tube laser cutting.

Overview

brand: TRUMPF
year: 2000
MODEL: Tubematic
production hours: 98664
application type: Cutting
Location: Estonia
machine type: Tube Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Tubematic

General Data

Measurements width: 1550 mm
Measurements depth: 2950 mm
Measurements height: 2400 mm
Machine weight: 18500 kg

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: TRUMPF

Main drive

Laserpower: 2.4 kW
Laser type: TLF 2400
Laser brand: Trumpf

Movement

X-AXIS Movement: 6500 mm

Workpiece

Workpiece drm: 20-150 mm
Workpiece x: 3000-6500 mm
Workpiece y: 2000-3000 mm
Workpiece z: 141 mm
Workpiece weight: 120 kg

Max Material thickness

Steel: 4 mm
Stainless steel: 3 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 72 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Loading unit
- - Gas unit
- - Cooler

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
