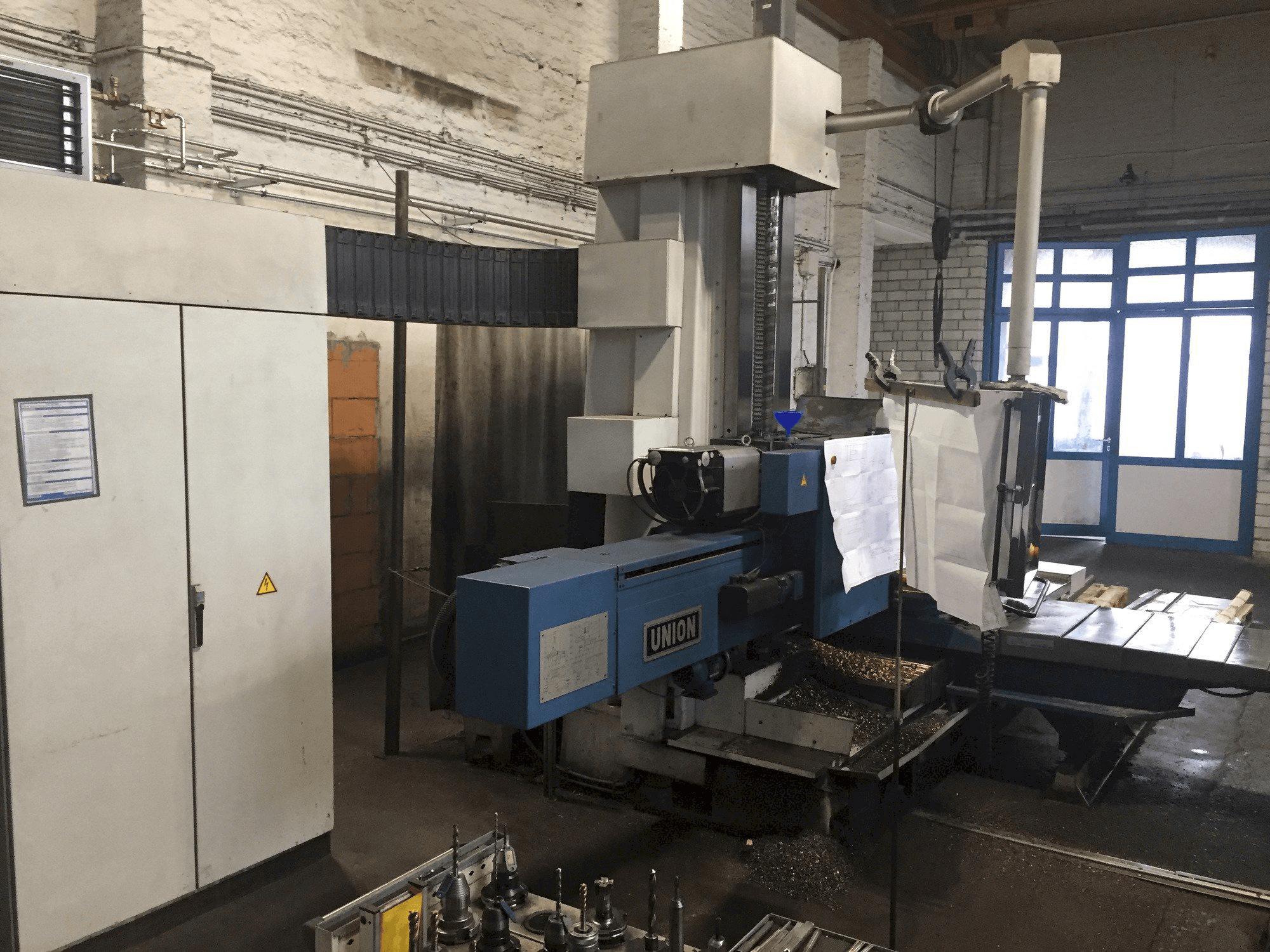

Union BFT 102 boring machine

This Union BFT 102 boring machine was made in the year 1998. It is equipped with a Heidenhain TNC 426 control unit and has 3 axis. The machine has a spindle speed of 4 - 1600 rpm.

Overview

brand: UNION
year: 1998
MODEL: BFT 102
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - UNION BFT 102

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 4 - 1600 1/MIN
Number of axis: 3

Table

Outer length: 1250 mm
Outer width: 1400 mm

Tools

Type of tool holder: SK 50 DIN 69871 Typ

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Longitudinal movement (x): 1600 mm
- - Transverse movement (y): 1250 mm
- - Table movement (z): 1600 mm
- - Spindle movement (w): 710 mm
- - Spindle Ø: 102 mm
- - Positioning accuracy (xyz): 30μm/1000 mm
- - Circular form deviation spindles: 0,008 mm
- - Cylindricity of spindles: 0,012 mm
- - Circular form deviation circular inside: 0,012 mm
- - Circular form deviation circular outside: 0,016 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
