➤ Used Union TC 110 - 2002 - Milling machine For sale

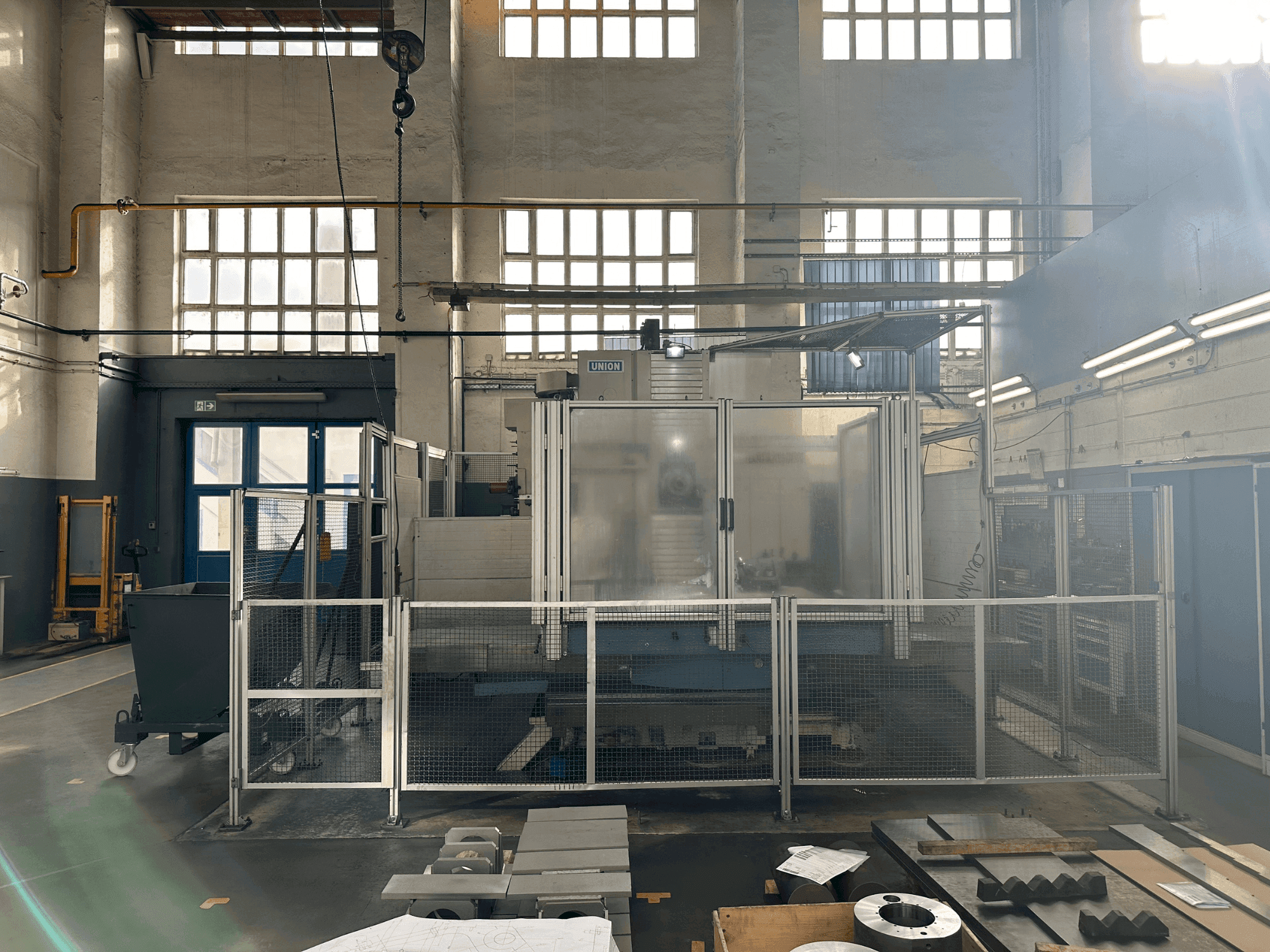

This 3-Axis Union TC 110 milling machine, crafted in 2002, is adeptly controlled by a Heidenhain TNC 426 system. It comes with a SIDEPALSA 40-fold tool changer and an SK50 tool holder. The table dimensions are 1250 x 1600mm, and it features movement in X, Y, Z, and W axes measuring 2000mm, 1600mm, 1500mm, and 550mm, respectively. Its spindle supports a diameter of 110mm, enhancing the precision with a nominal torque of 1639 Nm and speeds ranging up to 4000 min^-1. For more information about this Union TC 110 milling machine, reach out to us.

Overview

brand: UNION
year: 2002
MODEL: TC 110
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - UNION TC 110

General Data

Measurements width: 5150 mm
Measurements depth: 8600 mm
Measurements height: 5150 mm

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN
Tool taper: SK50
Number of axis: 3

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 15m/min
Y-AXIS Movement: 1600 mm
Y-AXIS Feed Force: 16kN
Y-AXIS Rapid traverse: 15m/min
Z-AXIS Movement: 1500 mm
Z-AXIS Feed Force: 20kN
Z-AXIS Rapid traverse: 15m/min
W-Axis Movement: 550 mm

Tools

Number of index: 40
Type of tool holder: SK50

Additional Equipment

- Tool changer SIDEPALSA 40-fold
- Control on 79431 hrs // Machine on 76080 hrs // Program run 27696 hrs

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Advanced control unit (heidenhain tnc 426) enhances precision in operations.
- - Spindle diameter: 110mm
- - Pressure, min. : 6 bar
- - Outer tube diameter: 8mm
- - Number of gear stages: 2
- - Speed range gear stage 1: 5-670min-1
- - Speed range gear stage 2: 671-4000 min-1
- - Nominal torque of the spindle: 1639 nm
- - Max torque of the spindle: 2012nm
Qualitative Machine Benefits:
- - High spindle accuracy with circular deviation and cylindricity values ensuring high-quality finishes.
- - Strong spindle torque providing robust cutting capabilities.
- - Table dimensions: 1250 x 1600mm

Extra information

- MACHINE STILL UNDER POWER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
