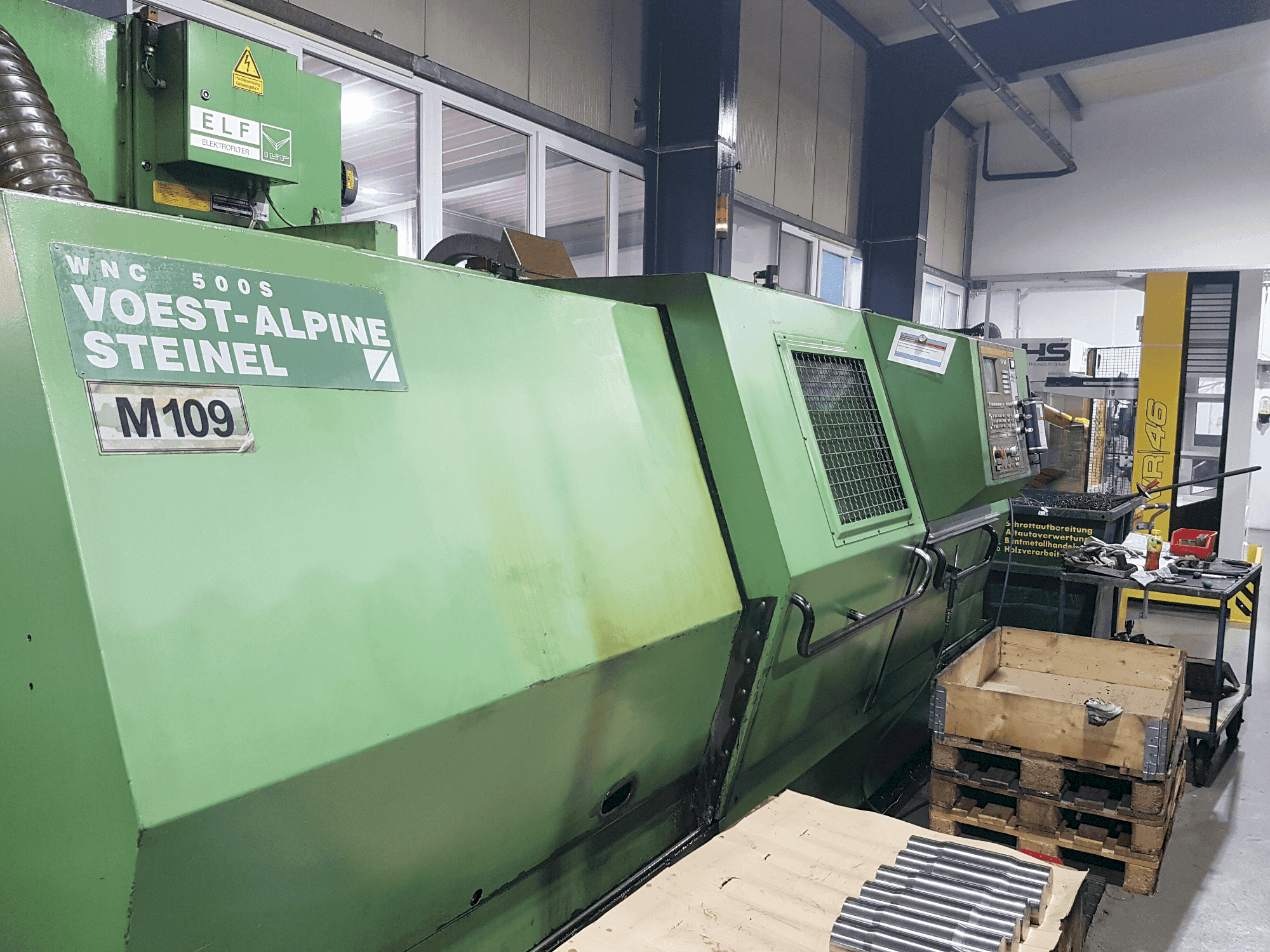

VOEST ALPINE WNC 500 S/1.6 Lathe

This VOEST ALPINE WNC 500 S/1.6 Lathe was manufactured in 1992 in Austria. It is equipped with 2-axis (Z-travel 1715mm, X-travel 305mm), a SIEMENS SINUMERIK control. This machine stands out for its stability and is in well maintained condition with direct availabilty. See original tech specs attached.

Overview

brand: Voest Alpine
year: 1992
MODEL: WNC 500 S/1.6
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Voest Alpine WNC 500 S/1.6

General Data

Machine weight: 10000 kg

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Main drive

Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 37.5 kW
Spindle bore: 77 mm

Movement

X-AXIS Movement: 1715 mm
Z-AXIS Movement: 305 mm

Turret

Number of tool slots: 12
Tool taper: VDI 3425

Tail Stock

Pinol diameter: 100 mm
Pinol force: 3000 - 12500 (adjustable)
Pinol way: 60 mm/s
Pinol tool taper: SK 30

Additional Equipment

- Hydraulic power clamping device Type: OZRJ 175, FORKARDT (50mm / 5500 min -1)
- Power-operated three-jaw chuck from SMW Type KNCS 315 65 3A 8 (315mm / 18800 daN)
- Hydraulic steady rest SMW Type SLK 212 Z 80 V (20-120mm)
- Face driver from NEIDLEIN
- Chip transport and coolant device (1100 mm / 250l)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tip width: 160 mm
- - Max. Turning diameter between centers: 360 mm
- - Turning diameter over bed: 540 mm
- - Turning diameter over carriage: 450 mm
- - Spindle diameter in front bearing: 120 mm
- - Spindelkopf: din/gr. 55026 / 8
- - Shank diameter vdi holder: 40 mm

Extra information

- Height of turning spindle above floor: 1100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
