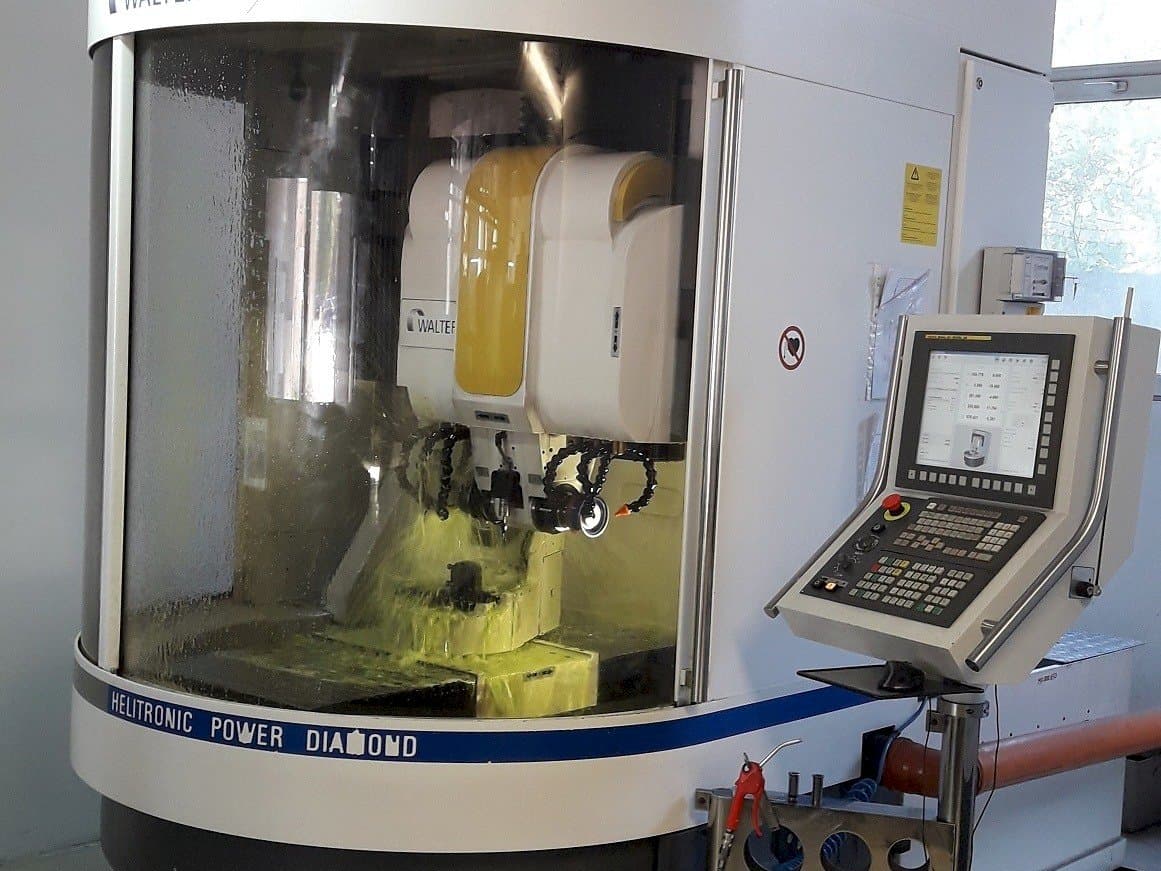

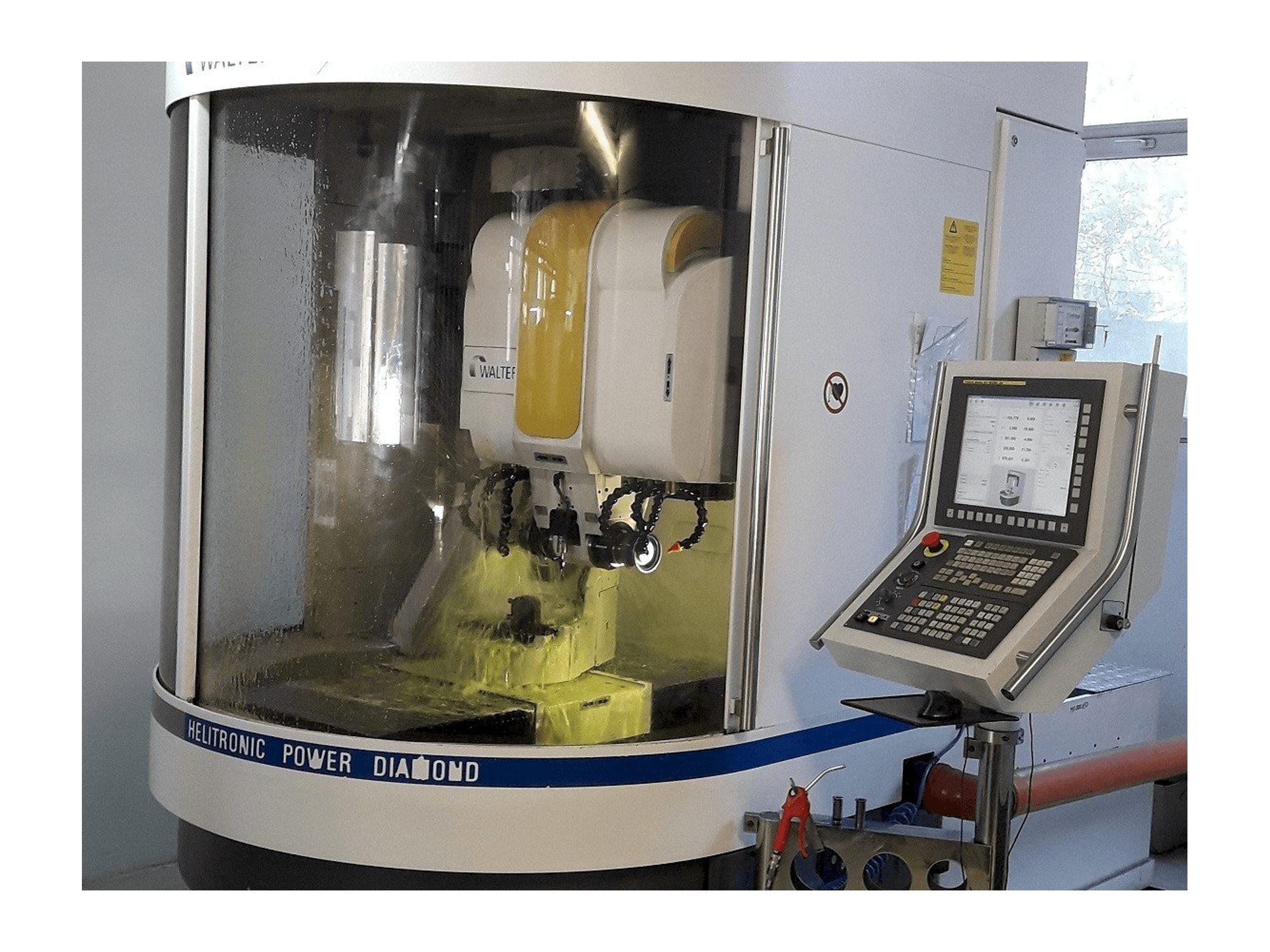

Walter Helitronic Power F Grinding Machine

This Walter Helitronic Power F Grinding Machine was made in 2014 in Germany. It is operated with a Fanuc Series 3ij- Model A5 control unit. This machine can works with a spindle speed range up to 9500 rpm. It includes an electrostatic coolant, and a turning tool holder for dressing.

Overview

brand: WALTER
year: 2014
MODEL: Helitronic Power F
application type: Grinding
Location: Romania
machine type: Grinding Machine
availability: Sold

Technical Information - WALTER Helitronic Power F

General Data

Measurements width: 2970 mm
Measurements depth: 2650 mm
Measurements height: 2280 mm
Machine weight: 4500 kg

Main drive

Spindle speed range: 0 - 9500 1/MIN
Spindle motor power: 25 kW

Movement

X-AXIS Movement: 470 mm
Y-AXIS Movement: 330 mm
Z-AXIS Movement: 660 mm

Tools

Type of tool holder: ISO 50

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 35 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece diameter 320 mm
- - Max. Workpiece length 280 mm
- - Max. Grinding wheel diameter 200 mm
- - Peak height (with/without top table) 145 / 190 mm
- - C - axis round table swivel range + / - 200°
- - Frequency controlled pump 7 and 20 bar
- - Hollow shaft spindle drive
- - Electrostatic coolant and mist separator
- - Probe insert for extremely spiral tools
- - Turning tool holder for dressing
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
