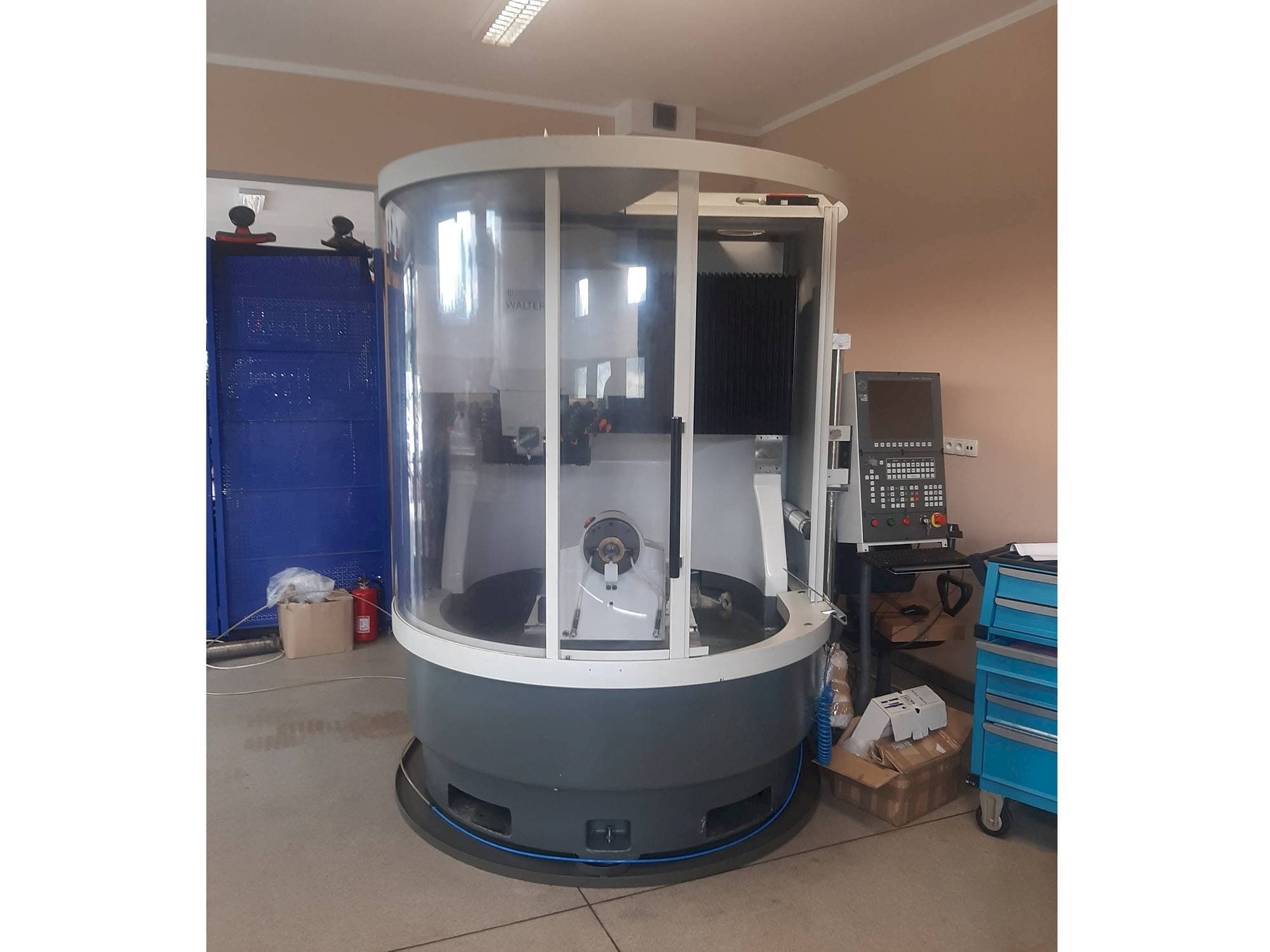

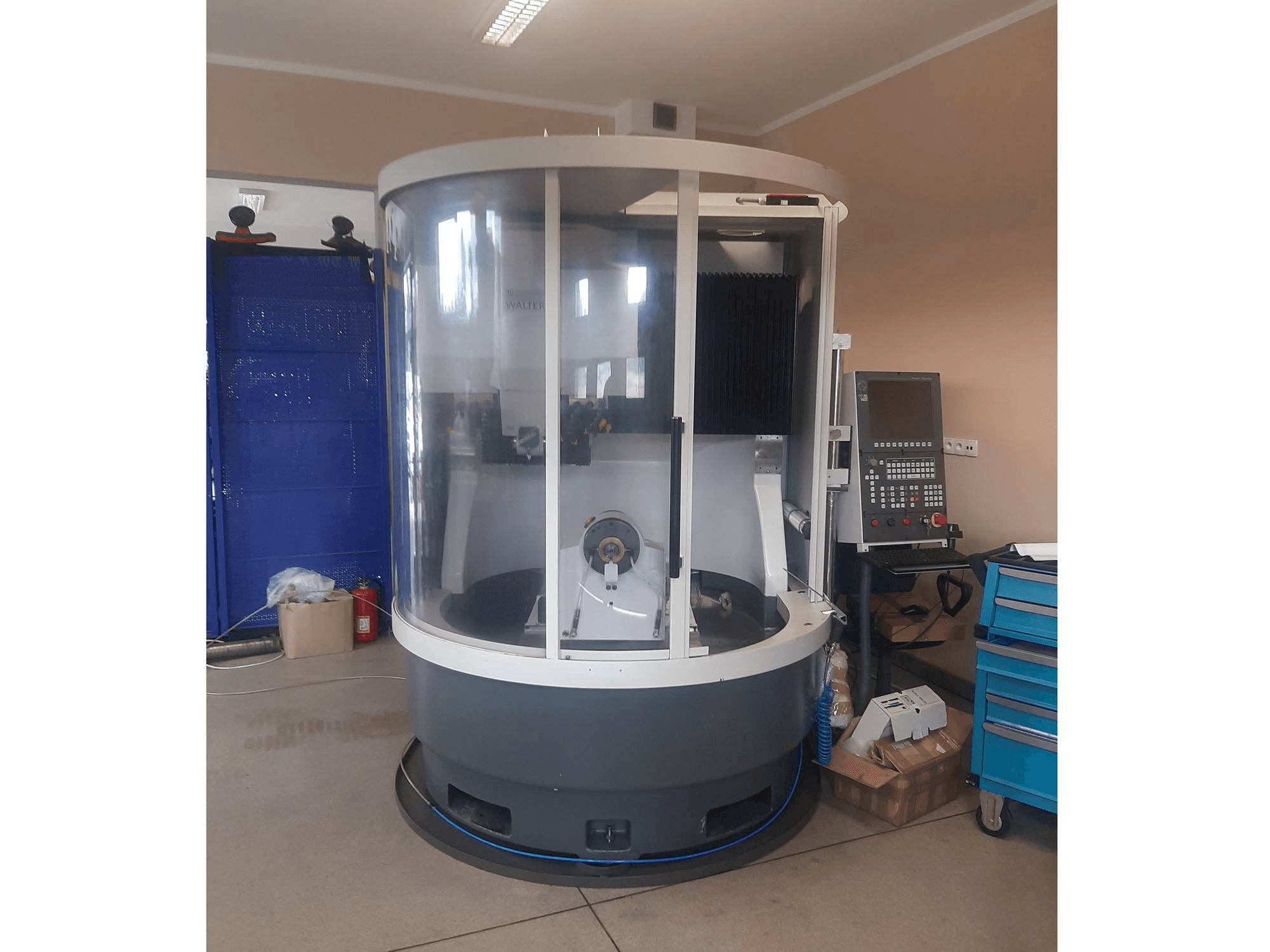

WALTER HELITRONIC POWER REGRINDER Grinding machine

This WALTER HELITRONIC POWER REGRINDER Grinding machine was made in 2001 in Germany. It is equipped with a HMC 500 control unit and has 5 axis. The machine has a spindle speed of 9500 rpm, is in good condition and well maintained.

Overview

brand: WALTER
year: 2001
MODEL: HELITRONIC POWER REGRINDER
application type: Grinding
Location: Poland
machine type: Grinding Machine
availability: Sold

Technical Information - WALTER HELITRONIC POWER REGRINDER

General Data

Measurements width: 2427 mm
Measurements depth: 2930 mm
Measurements height: 2273 mm
Machine weight: 4600 kg

Control Unit

Model: 500

Main drive

Spindle speed range: 9500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 470 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 660 mm
C-AXIS Movement: 200 deg. MM

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 25 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max workpiece diameter : 320 mm
- - Max workpiece length: 350 mm
- - Grinding wheel speed range : 0 - 9500 rpm
- - Spindle taper : iso50
Qualitative Machine Benefits:
- - The machine is in very good, working condition and ready for tests. It is suitable to regrind / manufacture wood and metal working tools. An accuracy protocol from the walter service available and documentation.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
