WEHRMANN - Combima Double End Tenoner for Solid Wood PanelsDE-WOO-WEH-2007-00001

Name: WEHRMANN Combima Double End Tenoner for Solid Wood Panels
Brand: WEHRMANN
SKU: DE-WOO-WEH-2007-00001
Price: 195000 EUR
Availability: InStock

195,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used WEHRMANN Combima For sale | gindumac.com

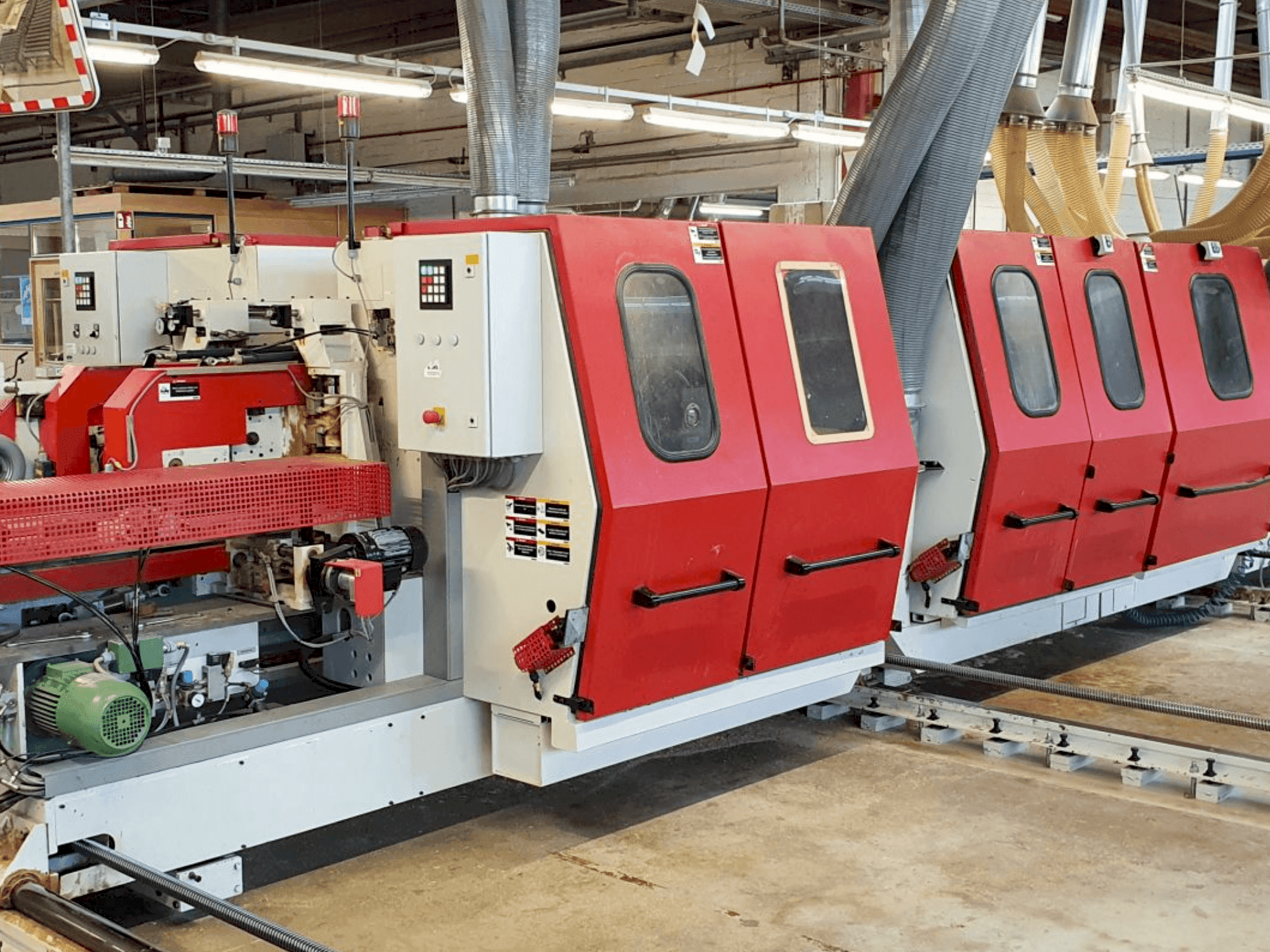

This 3-axis Wehrmann Combima Double End Tenoner for Solid Wood Panels was manufactured in 2007, designed for precision in massiv wood panel processing. It features a robust IMA Combima chassis, NC control, and advanced Heesemann sanding technology. Key specifications include a maximum working width of 2,500 mm, motorized width adjustments, and a high working height of 950 mm. The machine is equipped with multiple milling and sanding units, ensuring versatility and high-quality finishes. For more information about this Wood machine, please reach out to us.

Overview

brand: WEHRMANN
year: 2007
MODEL: Combima Double End Tenoner for Solid Wood Panels
application type: Other Woodworking Machinery
Location: Germany
machine type: Tenoning Machine
availability: Immediately

Technical Information - WEHRMANN Combima Double End Tenoner for Solid Wood Panels

Main drive

Spindle speed range: 12,000 rpm 1/MIN
Spindle motor power: 6.6 kW
Number of axis: 3

Additional Equipment

- Double end tenoner for massive wood panels
- Modular equipped with multiple milling and sanding units
- NC controlled with grinding units
- Motorized width adjustment
- Precision roller transport chains
- Electromechanical height-adjustable top prints // Electronic frequency controllers
- Machine control with fast Pentium computer, touchscreen display, and integrated programming software
- Pneumatically foldable center support with roller track
- Chain conveyor extension
- Retraction device from above

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-quality and sturdy design for reliable operation
- - Advanced control system for precise and efficient processing
- - Versatile modular configuration to meet various production needs
Qualitative Machine Benefits:
- - Enhanced productivity with nc controlled grinding units
- - User-friendly interface with logbook function and clear machine data table

Extra information

- Max. working width: approx. 2500 mm Min. working width: approx. 280 mm Working height approx. 950 mm Includes various profile and milling units with adjustable settings Equipped with blow-off nozzle for cleaning workpiece tops Suction sluice with blow nozzle Extension device approx. 700 mm long

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
