➤ Used WEINGÄRTNER Finish 450/3000 For sale | gindumac.com

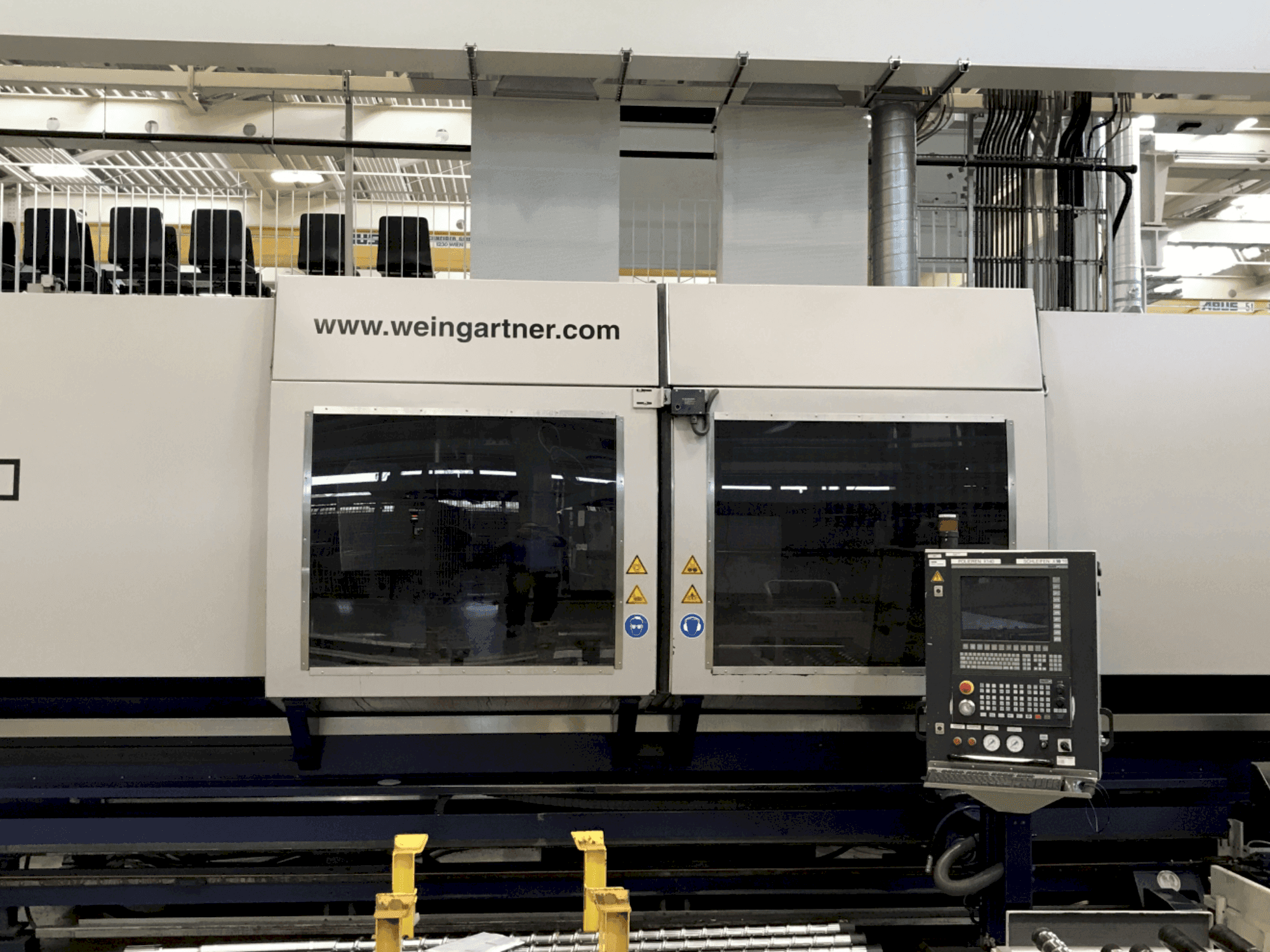

This 5-Axis WEINGÄRTNER Finish 450/3000 grinding machine, manufactured in 2009, integrates a NUM Axium Power control system for precision operations. It features a manual 3-jaw chuck with a 128mm passage diameter and a workpiece capacity of up to 320mm in diameter and 3000mm in length, with a maximum weight of 3500kg including support. The machine’s work spindle offers speeds tailored to the workpiece diameter, enhancing versatility. Buy this WEINGÄRTNER Finish 450/3000 grinding machine for specialized finishing tasks. For more information about this grinding machine, please reach out to us.

Overview

brand: Weingartner
year: 2009
MODEL: Finish 450/3000
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Weingartner Finish 450/3000

General Data

Measurements width: 4500 mm
Measurements depth: 6000 mm
Measurements height: 2900 mm
Machine weight: 12900 kg

Control Unit

Model: Axium Power

Main drive

Number of spindles: 1
Spindle speed range: 120 rpm 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 200 mm
X-AXIS Rapid traverse: 5m/min
Z-AXIS Movement: 3500 mm
Z-AXIS Rapid traverse: 15m/min
W-Axis Movement: 3500 mm
W-Axis Rapid traverse: 10 m/min

Workpiece

Workpiece weight: 3500 kg

Additional Equipment

- 3-jaw chuck with passage diameter 128mm
- Coolant system with 300L tank
- Sanding belt and sisal disk for surface finishing

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A-axis: swivel range +/- 70°
- - Workpiece diameter max: 320 mm
- - Workpiece length max: 3000 mm
- - Advanced control system for precision grinding.
- - Multiple rapid traverse options to reduce non-cutting time.
Qualitative Machine Benefits:
- - High precision and versatility in handling different sizes and weights of workpieces.
- - Stability and accuracy in grinding operations, enhanced by specific design features such as pneumatic weight compensation.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
