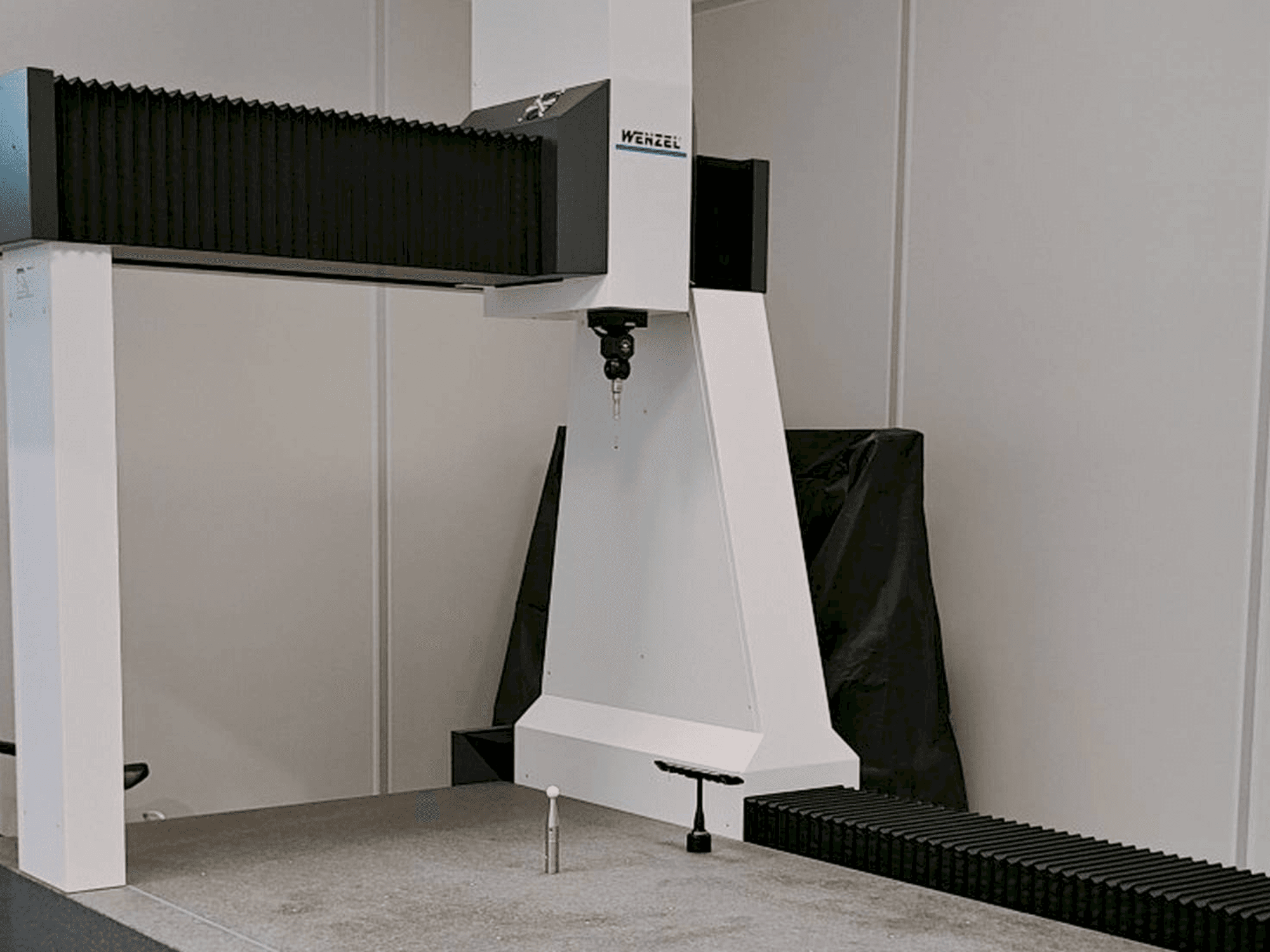

WENZEL LH 1010 Coordinate Measuring Machine

This WENZEL LH 1010 Coordinate Measuring Machine was made in the year 2021 in Germany. The machine has an accuracy of measurement up to ± 0.005 mm.

Overview

brand: Wenzel
year: 2021
MODEL: LH 1010
application type: Measuring
Location: France
machine type: Coordinate Measuring Machine (CMM)
availability: Sold

Technical Information - Wenzel LH 1010

General Data

Measurements width: 3600 mm
Measurements depth: 1875 mm
Measurements height: 3460 mm
Machine weight: 6600 kg

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 3050 mm
Outer width: 1310 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Accuracy of measurement: up to ± 0. 005 mm
- - Permissible part weight: 2400 kg
- - Useable table surface: 1310 x 3050 mm
- - Permissible part weight: 2400 kg
- - Options included: active damping software: metrosoft quartis r21-1 ht400 control part with standard cable wpc2040/3 3-axis controller tp200 stylus module ph10m-plus recording head scr200 interchangeable magazine phc10-3plus +pi 200 card
- - List of software modules included: step (cad converter) vda-fs (cad converter) iges (cad converter) emd ([prev. Q-das] export measuring data) impex-elem (import export elements) curve (curve measurement) surf (surf measurement) dmis (dmis functionality) iph (indexing probe head) prc (probe changer)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
