➤ Used WFL Millturn M 35-G - Lathe For Sale | gindumac.com

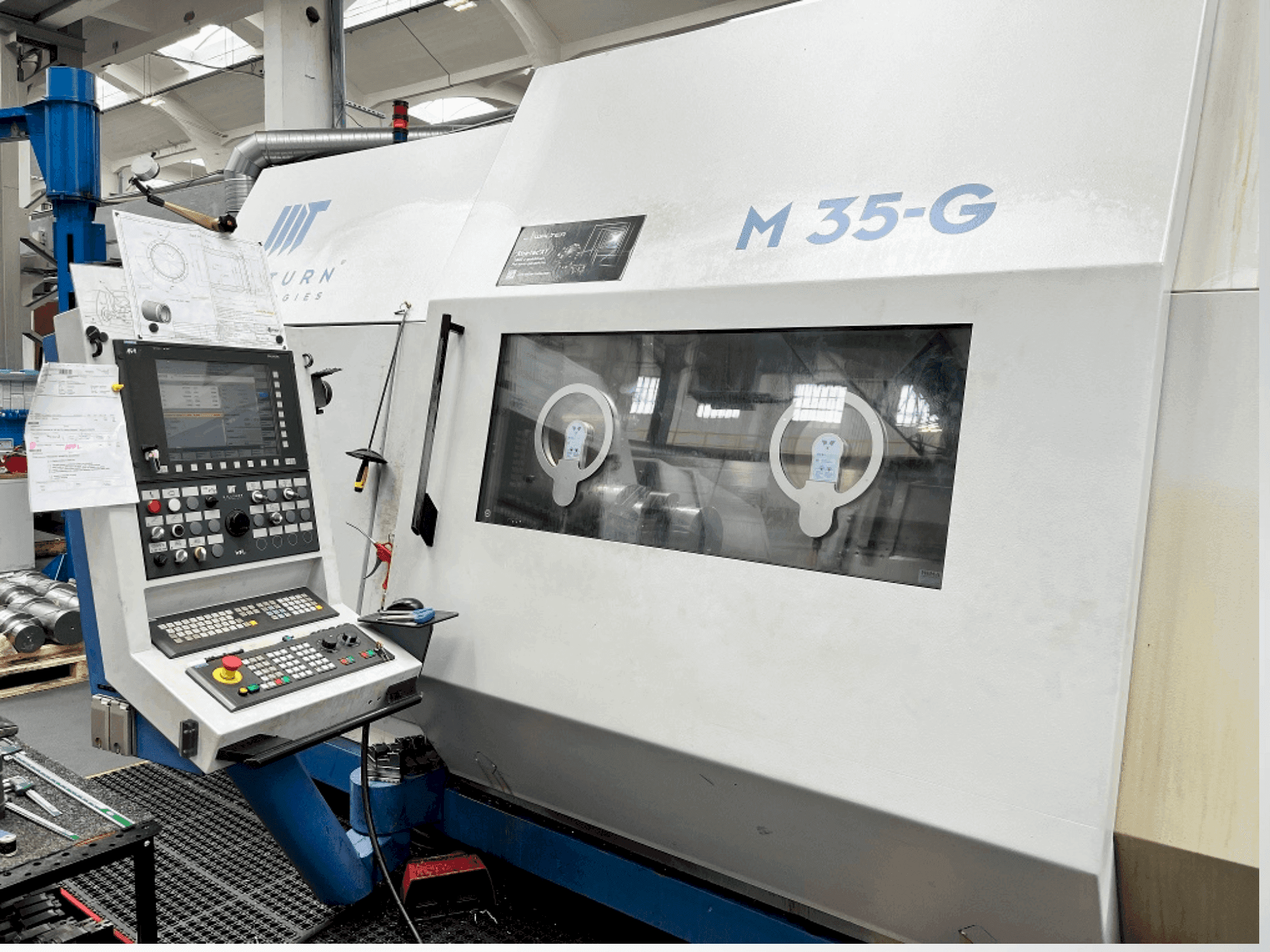

This 6-axis WFL Millturn M 35-G lathe was manufactured in 2006. It features a SIEMENS SINUMERIK 840D pl control system, a maximum turning diameter of 520mm, and a center distance of 1800mm. The B axis offers a swivel range of +/- 110 degrees at speeds up to 9000 rpm. It includes a tool magazine with 80 positions and dual spindles with C axis functionality. A great opportunity to buy this WFL Millturn M 35-G lathe. Contact us for more information.

Overview

brand: WFL
year: 2006
MODEL: Millturn M 35-G
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - WFL Millturn M 35-G

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 9000 1/MIN
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 600 MM
Z-AXIS Movement: 1500 MM
B-AXIS Movement: +/- 110 deg. MM
C-AXIS Movement: 0.0001 deg. MM

Additional Equipment

- Tool magazine: 80 positions

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter: 520 mm
- - Center distance: 1800 mm
- - B axis (turning-boring-milling unit) swivel range +/- 110 deg. High spindle speed of 9000 rpm
- - Hours data: total on 83829 / spindle 11281
Qualitative Machine Benefits:
- - High precision with c axis resolution of 0. 0001 deg.

Extra information

- 2 spindles with C axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
