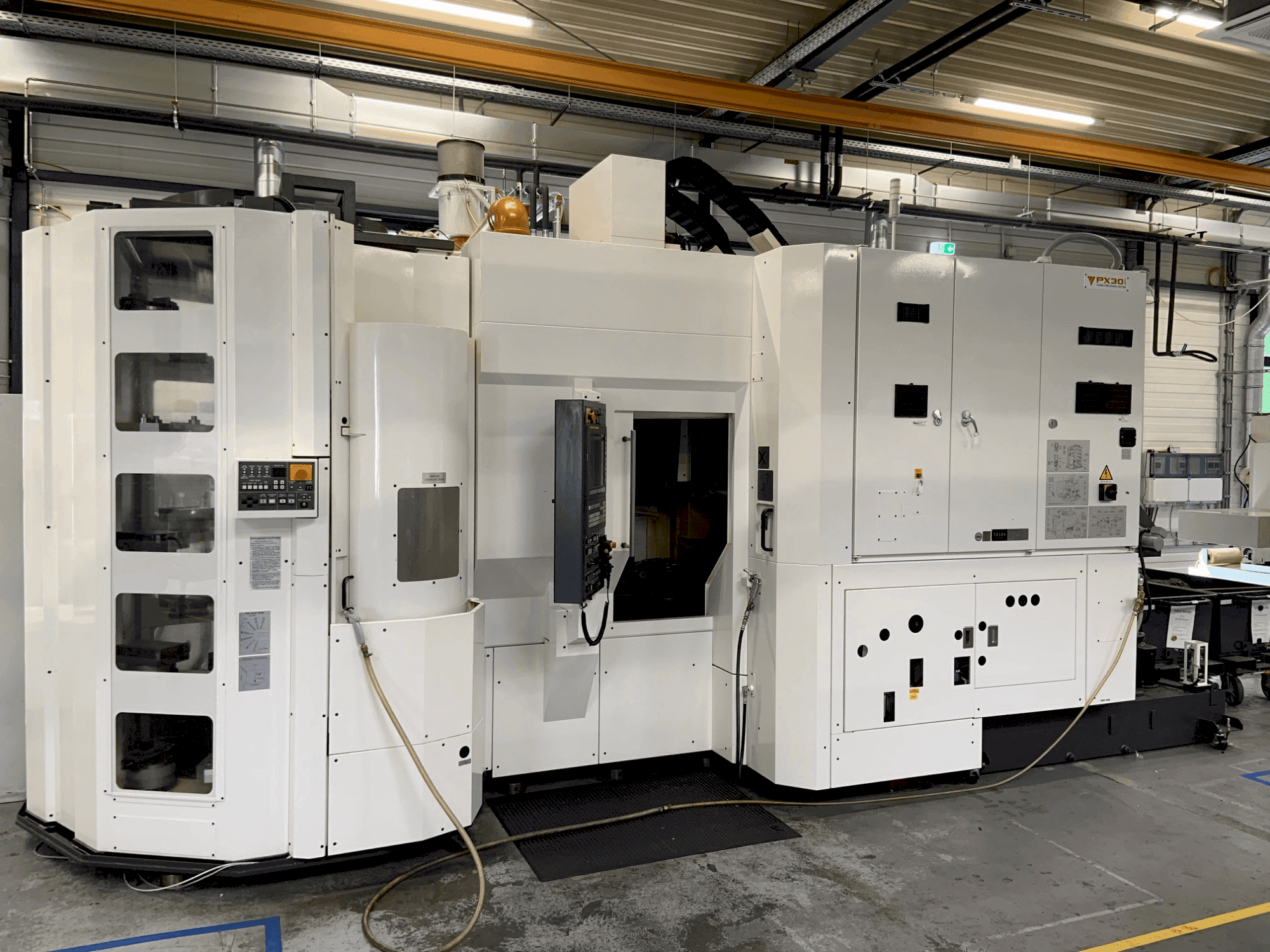

Front view of YASDA Px30i  machine

YASDA - Px30iDE-MIL-YAS-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis YASDA Px30i vertical machining center was manufactured in 2018. It features a control unit Fanuc 31i B5, a spindle speed range up to 20,000 min-1, and a rapid traverse speed of 60,000 mm/min. The machine supports a maximum workpiece diameter of 400 mm and includes an automatic tool changer, cooling unit, and pallet clamping device. A great opportunity to buy this YASDA Px30i vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

  • brand: YASDA
  • year: 2018
  • MODEL: Px30i
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - YASDA Px30i

General Data

  • Machine weight: 13,000 KG

Control Unit

  • Model: 31i B5
  • Brand: FANUC

Main drive

  • Spindle speed range: 100-20,000 1/MIN

Movement

  • X-AXIS Movement: 680 mm
  • X-AXIS Feed Force: 20,000
  • X-AXIS Rapid traverse: 60,000
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Feed Force: 20,000
  • Y-AXIS Rapid traverse: 60,000
  • Z-AXIS Movement: 500 mm
  • Z-AXIS Feed Force: 20,000
  • Z-AXIS Rapid traverse: 60,000
  • AXIS 1 Movement: -125 ° to + 65
  • AXIS 1 Feed Force: 50min-1

Workpiece

  • Workpiece drm: 400 mm
  • Workpiece z: 315 mm

Table

  • Min distance between vertical spindle and table: 120 mm
  • Max distance between vertical spindle and table: 620 mm
  • Table load: 80 kg

    Additional Equipment

    • - Automatic tool changer (ATC)
    • - cooling unit
    • - Pallet clamping device
    • - Measuring probe
    • - Calibration mandrel
    • - Over 300 BBT 40 milling holders

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Load moment: 80 nm
        • - Inner diameter of the spindle bearing diameter: 65 mm.
        • - Tool holder: 3000kg
        • - Pls unit: 3000kg
      • Qualitative Machine Benefits:
        • - Automatic pallet changer (apc) with 33 spaces.
        • - The tool changer has 314 tool positions.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
