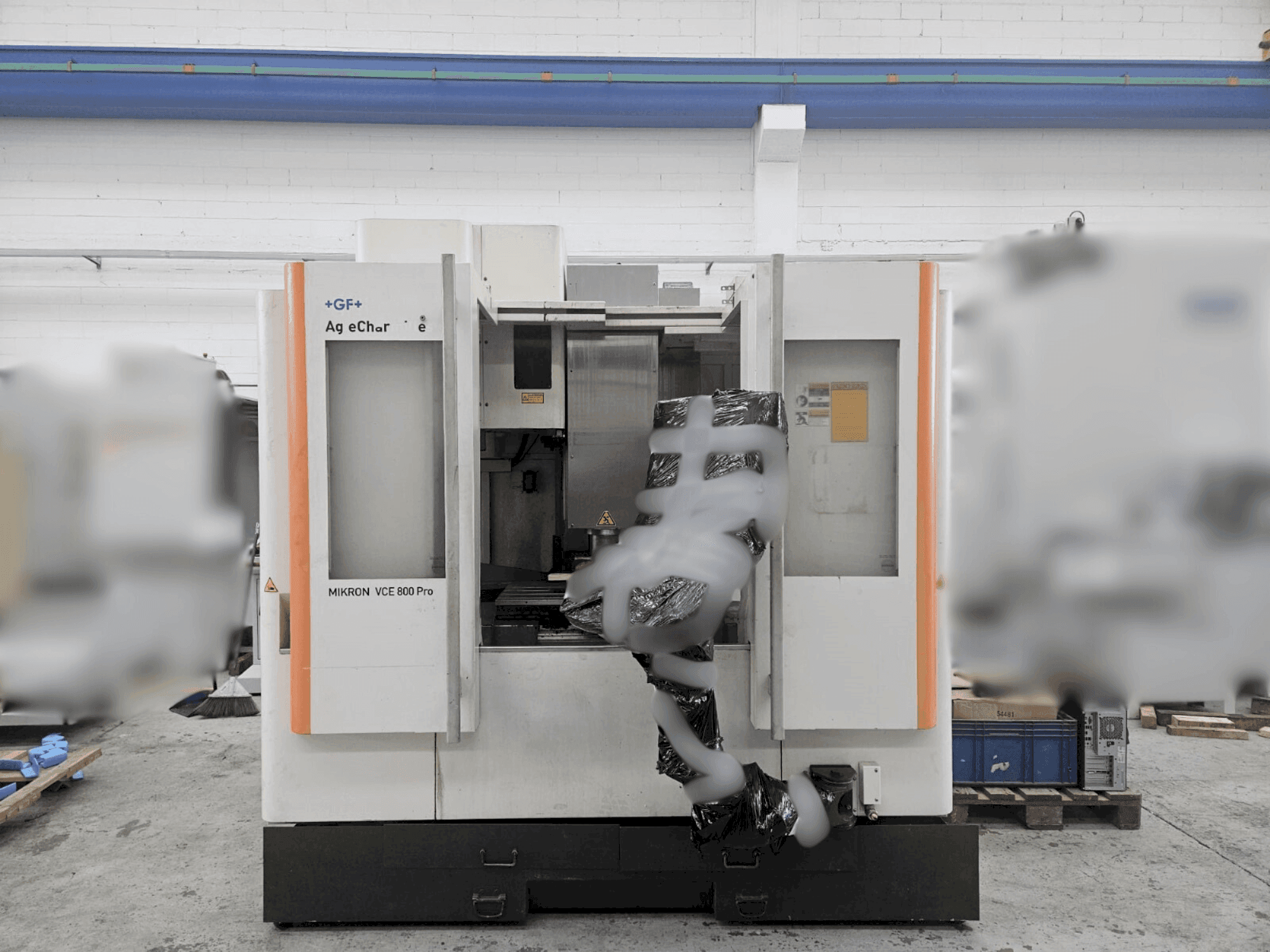

Front view of +GF+ AGIE CHARMILLES VCE 800 PRO  machine

+GF+ - AGIE CHARMILLES VCE 800 PROIT-MIL-GFX-2014-00001

65,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis +GF+ AGIE CHARMILLES VCE 800 PRO vertical machining centre was manufactured in 2014. It features a robust HEIDENHAIN iTNC530 control, a maximum spindle speed of 10,000 min/¹, and a tool holder of ISO 40. The work table measures 910x500 mm, supporting up to 1100 kg. Ideal for precision machining, it includes a 24-position tool changer. If you are looking to get high-quality milling capabilities consider the +GF+ AGIE CHARMILLES VCE 800 PRO machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: +GF+
  • year: 2014
  • MODEL: AGIE CHARMILLES VCE 800 PRO
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - +GF+ AGIE CHARMILLES VCE 800 PRO

General Data

  • Machine weight: 5000 KG

Control Unit

  • Brand: HEIDENHAIN
  • Model: iTNC530

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 12 kW
  • Tool taper: ISO 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 540 mm

Table

  • Outer length: 910 mm
  • Outer width: 500 mm
  • TSlots size: 18 +0.006/ + 0.024 mm
  • Number of tslots: 5
  • Distance between: 100 mm
  • Table load: 1100 kg

Tools

  • Slots in storage: 24
  • Max weight: 6 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tool holder spindle drive type: toothed belt
      • - Torque at 100% ri: 96 nm
      • - Tool change time: 6 sec
      • - Tightening-loosening times according to vdi 2852: 8 sec
      • - Coolant system capacity: 300 l
      • - Machine supplied with manuals and ce declaration of conformity
      • - Voltage: 50/60 hz
      • - Consumption: 32 a
      • - Connected load: 16 kw

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
