- ACCUWAY UM - 350V5 Vertical Machining Center

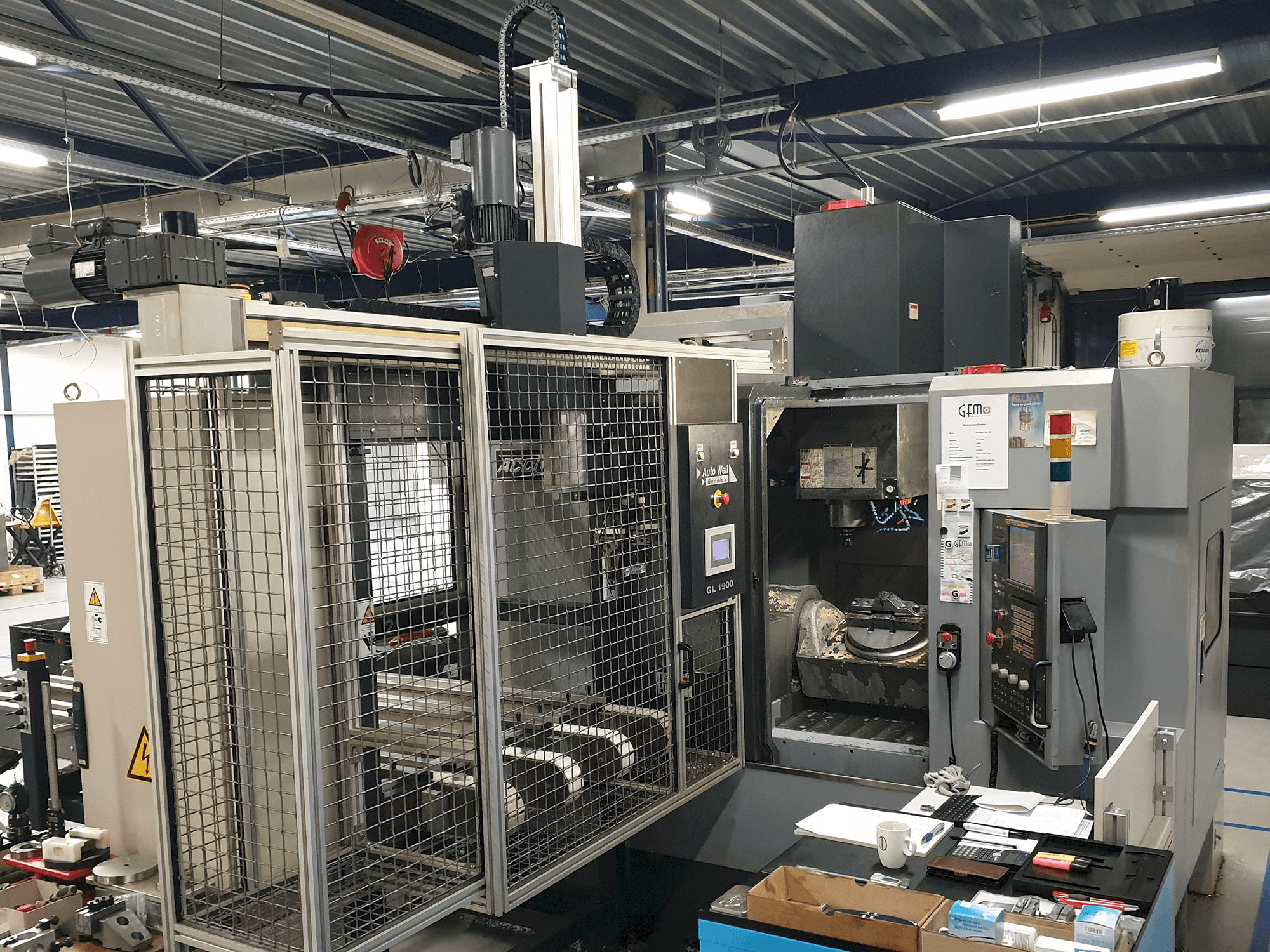

This ACCUWAY UM - 350V5 Vertical Machining Center was manufactured in 2009 in Taiwan and has a production time of 35000 hours. Operated through a FANUC Series 18i-M Control unit, this 5 axis machine counts with 32 tool slots. It incorporates a rotary table with a dimension of 350mm. Its meehanite cast structure keeps long-term accuracy, and is capable of performing with a maximum workpiece diameter of 450 mm. A robot and several tools are included within the machine.
Overview
- brand: ACCUWAY
- year: 2009
- MODEL: UM - 350V5
- production hours: 35000
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - ACCUWAY UM - 350V5
General Data
- Measurements width: 2700 mm
- Measurements depth: 2200 mm
- Measurements height: 3200 mm
- Machine weight: 9500 kg
Control Unit
- Brand: Fanuc
- Model: Series 18i-M
Movement
- X-AXIS Movement: 700 mm
- Y-AXIS Movement: 550 mm
- Z-AXIS Movement: 470 mm
Workpiece
- Workpiece x: 42 mm
- Workpiece y: 42 mm
- Workpiece z: 30 mm
- Workpiece weight: 200 kg
Table
- Outer length: 350 mm
Media
- Main electronic connection: 380 V
- Power consumption: 30 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Material type: Aluminium
- material thickness: 20 mm
- End product: Moulds
- Technical Machine Benefits:
- - Meehanite cast structure keeps long-term accuracy
- - Rotary table and integral 5 axes motion saddle
- - Max. Workpiece of 450 mm of diameter
- Qualitative Machine Benefits:
- - Always working without any downtime
- - Yearly inspected
- - Perfect conditions
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
