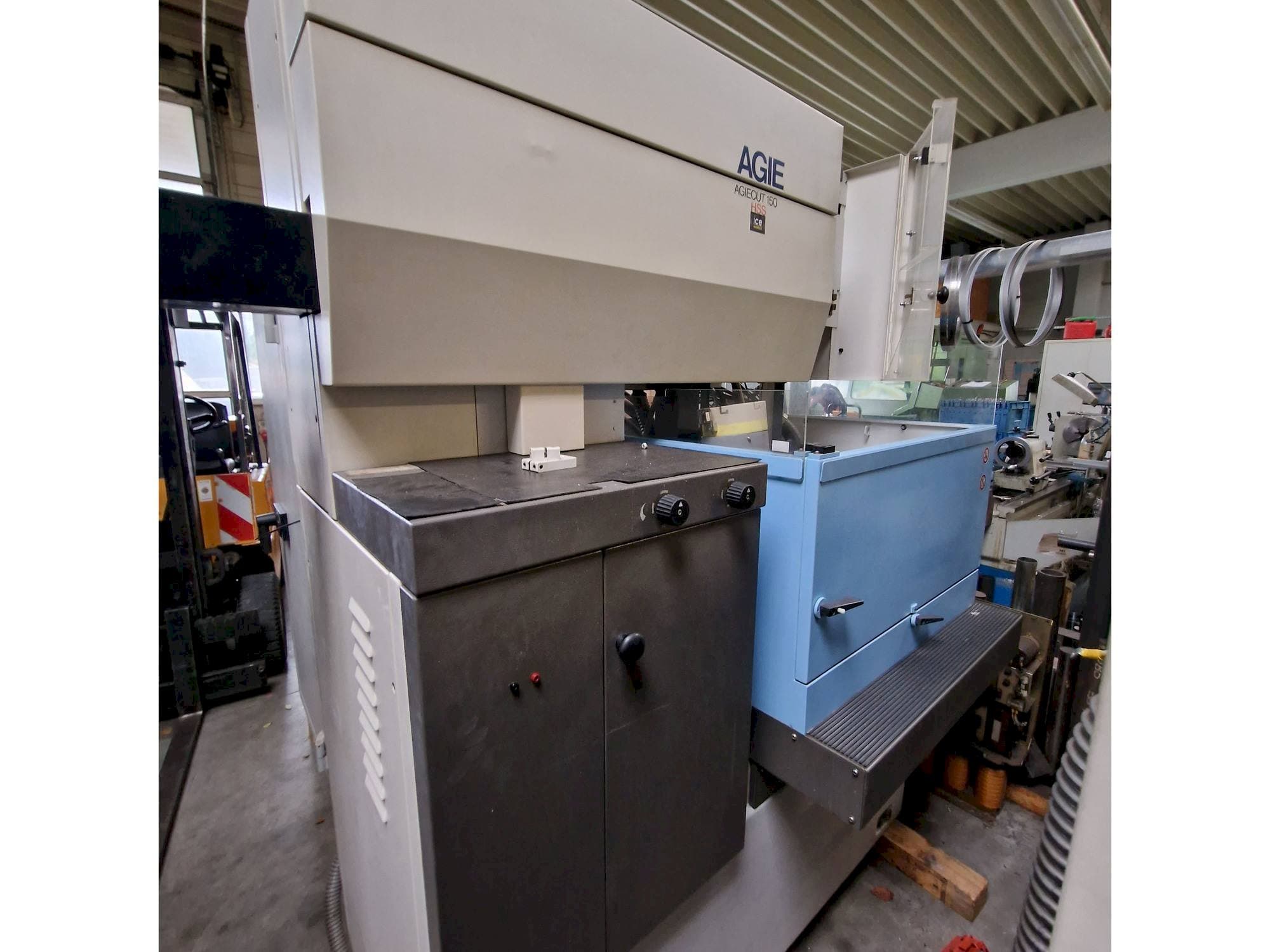

AGIE AGIECUT 150 HSS Erosion machine

This AGIE AGIECUT 150 HSS Erosion machine was built in 1994 in Switzerland. It is equipped with an Agie Agiematic CF control unit. The machine has a wire diameter of 0,1 - 0,33 mm.

Overview

brand: AGIE
year: 1994
MODEL: AGIECUT 150 HSS
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold
control unit brand: AGIE

Technical Information - AGIE AGIECUT 150 HSS

General Data

Measurements width: 1700 mm
Measurements depth: 1600 mm
Measurements height: 2140 mm
Machine weight: 2720 kg

Control Unit

Model: Agiematic CF
Brand: AGIE

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 224 mm
V-Axis Movement: ± 30 mm
U-Axis Movement: ± 30 mm

Workpiece

Workpiece x: 810 mm
Workpiece y: 580 mm
Workpiece z: 220 mm

Table

Outer length: 560 mm
Outer width: 445 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Minimum starting hole: 2,0 diameter
- - Max. Threadable workpiece height: 220 mm
- - Wire diameter: 0,1 - 0,33 mm
- - Max. Wire spool weight: 16 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
