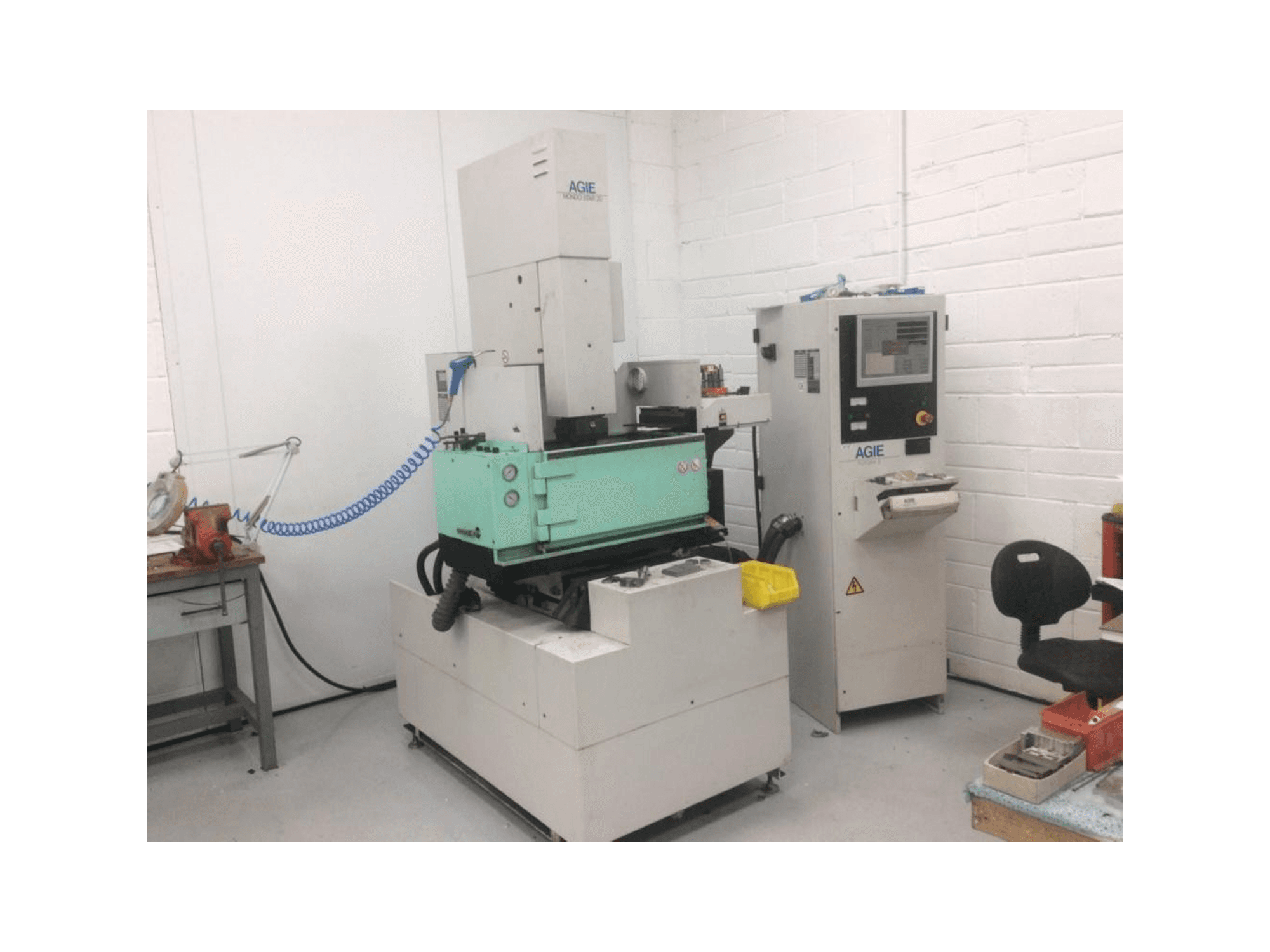

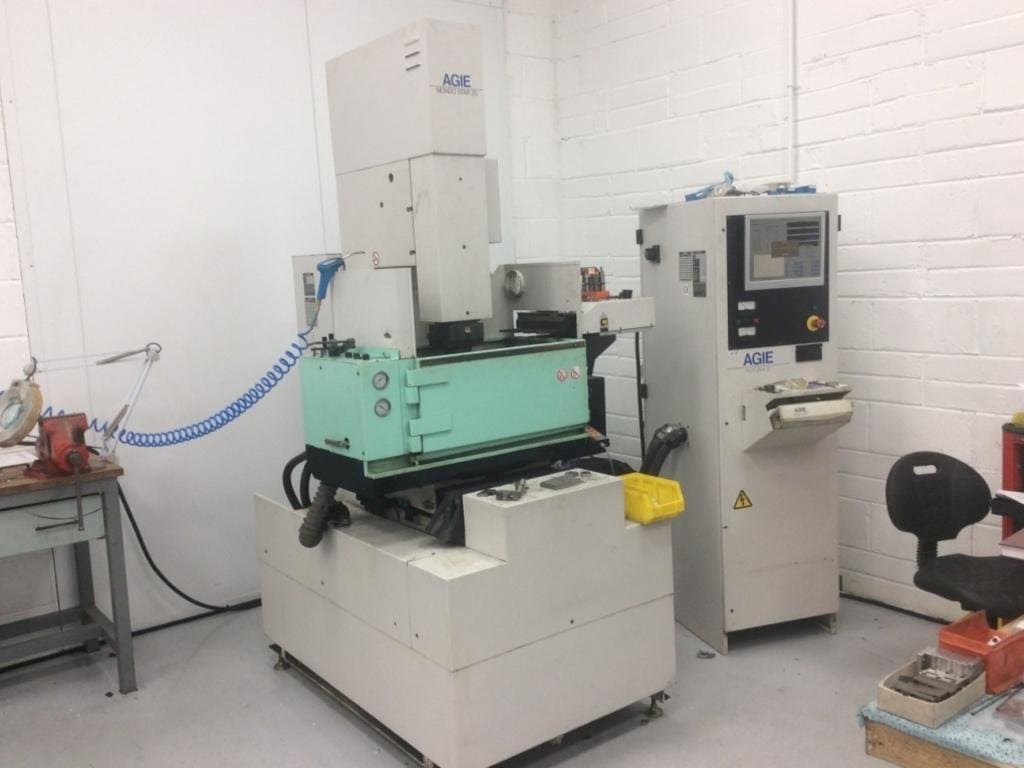

AGIE Mondo 20 Star Erosion Machine

This AGIE Mondo 20 Star Erosion Machine was built in the year 1996 in the United States. It is equipped with an Agie Futura V control unit. This machine includes several pieces of additional equipment: I/O module assembly, heat exchanger, filter, regulator, lubrication assembly, and a tool changer assembly.

Overview

brand: AGIE
year: 1996
MODEL: Mondo 20 Star
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
availability: Sold
control unit brand: AGIE

Technical Information - AGIE Mondo 20 Star

General Data

Measurements width: 1330 mm
Measurements depth: 1555 mm
Measurements height: 2360 mm
Machine weight: 1265 kg

Control Unit

Model: Futura V
CNC main language: English
Brand: AGIE

Main drive

Working current: 64 A

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm
C-AXIS Movement: 360 Degrees MM

Workpiece

Workpiece x: 630 mm
Workpiece y: 400 mm
Workpiece z: 165 mm
Workpiece weight: 200 kg

Table

Outer length: 400 mm
Outer width: 300 mm

Media

Main electronic connection: 400 V
Power consumption: 9,9 kVA

Additional Equipment

- I/O module assembly
- Heat exchanger
- Filter/Regulator/Lubrication assembly
- C axis assembly
- Tool changer assembly

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Full c axis
- - 4 station auto tool changer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
