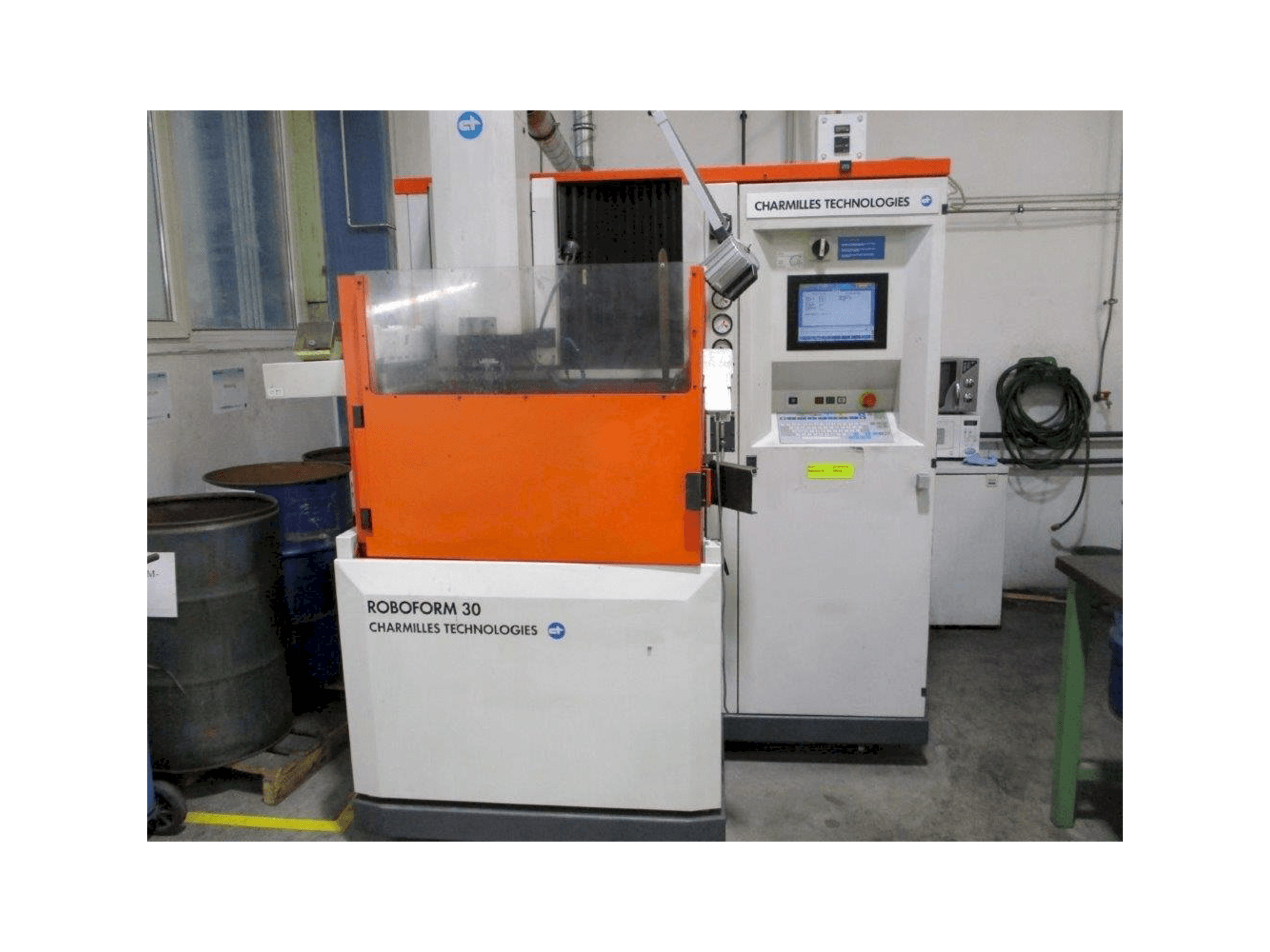

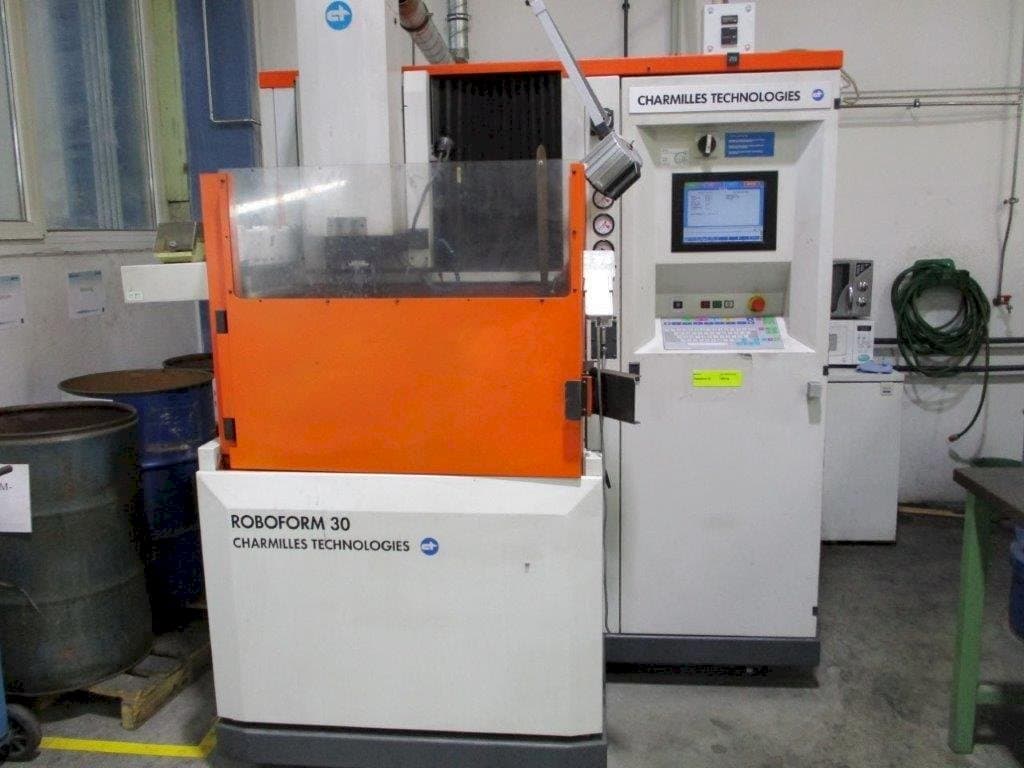

AgieCharmilles Roboform 30 Erosion Machine

This AgieCharmilles Roboform 30 Erosion Machine was manufactured in the year 1995 in Switzerland. It has a production record of 22527 working hours. It is equipped with control unit of the same brand. This machine can works with a max. speed of 900 rpm.

Overview

brand: AgieCharmilles
year: 1995
MODEL: Roboform 30
production hours: 22527
application type: EDM
Location: Austria
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - AgieCharmilles Roboform 30

General Data

Measurements width: 2050 mm
Measurements depth: 1800 mm
Measurements height: 1550 mm
Machine weight: 1870 kg

Main drive

Spindle speed range: 900 1/MIN

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 300 mm

Table

Outer length: 500 mm
Outer width: 400 mm
Table load: 500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Insulating plate intermediate file 559 mm
- - Sleeve erowa its 459 mm
- - Sleeve system 450 mm
- - Sleeve hirschmann system h 452 mm
- - Sleeve mecatool grs 70 456 mm
- - Max. Electrode weight without changer 25 kg
- - T-slots quantity 3
- - Distance between the grooves 125 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
