AJAX EVOLUTION AJEV 310

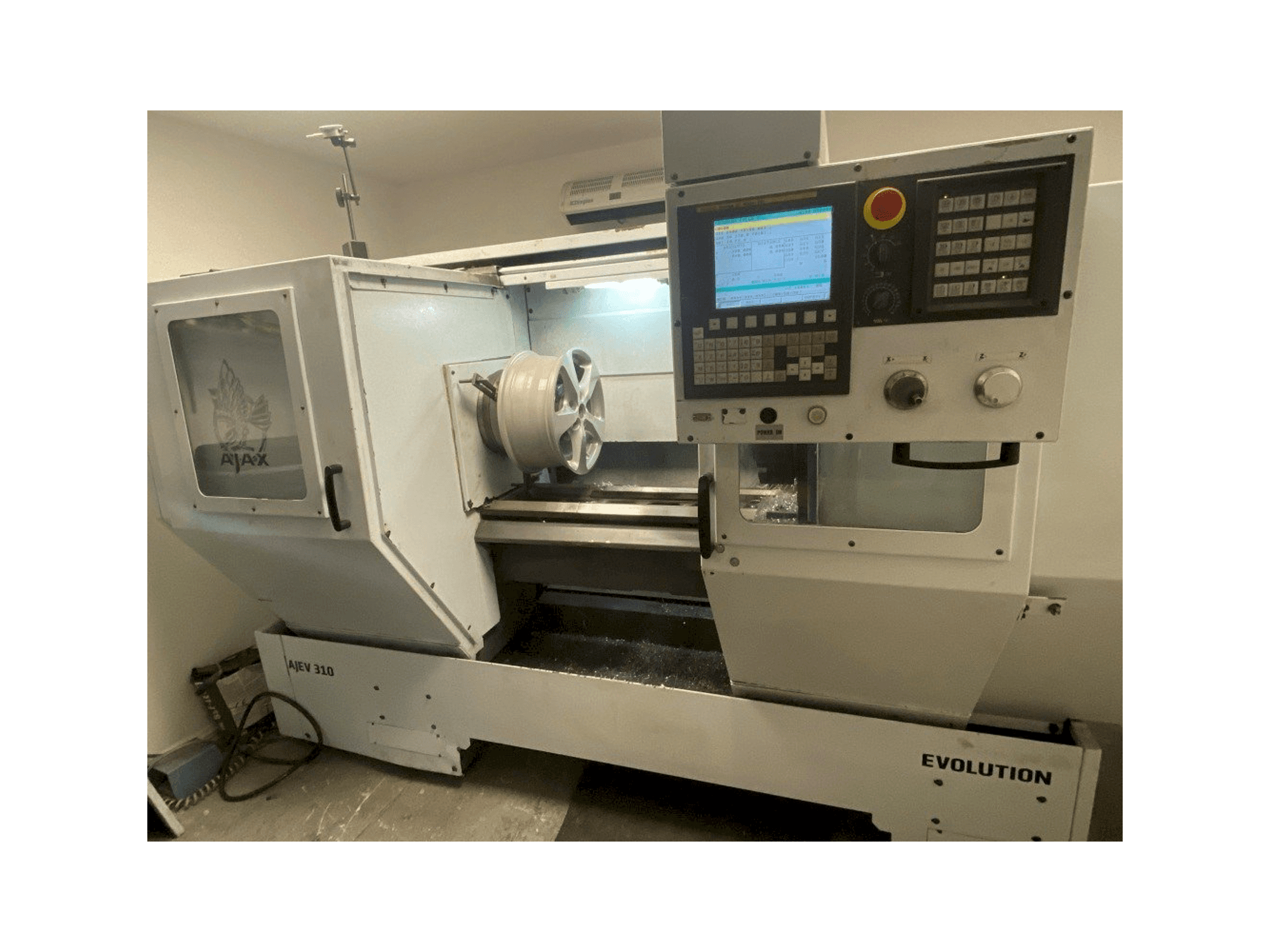

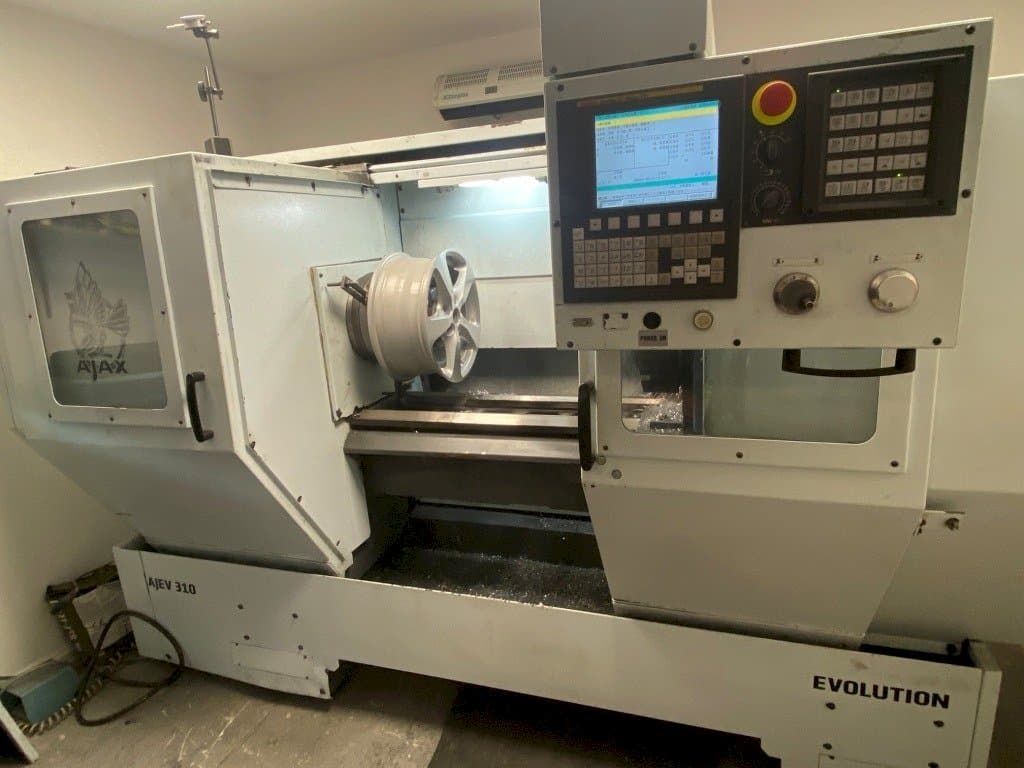

This AJAX EVOLUTION AJEV 310 Lathe was manufactured in the year 2014 in the United Kingdom. It is operated through a FANUC Series Oi Mate-TD control unit. This 2 axis machine works with a spindle speed up to 2500 rpm and a hydraulic chuck 310 mm. It includes some additional equipment as a Pragati BTP-80 8 station turret. This machine has mainly worked in the allow wheel repairs industry

Overview

brand: AJAX
year: 2014
MODEL: EVOLUTION AJEV 310
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - AJAX EVOLUTION AJEV 310

General Data

Measurements width: 2800 mm
Measurements depth: 1350 mm
Measurements height: 1850 mm
Machine weight: 2300 kg

Control Unit

Model: Series Oi Mate-TD
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 310 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece drm over bed: 610 mm
Workpiece z: 1000 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 8
Max tool diameter: 40 mm
Type of tool holder: Pragati BTP-80

Media

Main electronic connection: 415V 3PH 50Hz

Additional Equipment

- Pragati BTP-80 8 Station Turret
- Selection of tool holders
- Tailstock
- 310mm Hydraulic Chuck

Additional Information

Machine history

Material type: Aluminium
End product: Allow wheels
Industries: Allow wheel repairs

Machine Benefits

Technical Machine Benefits:
- - null

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
