Alzmetall GS 1000/5-T

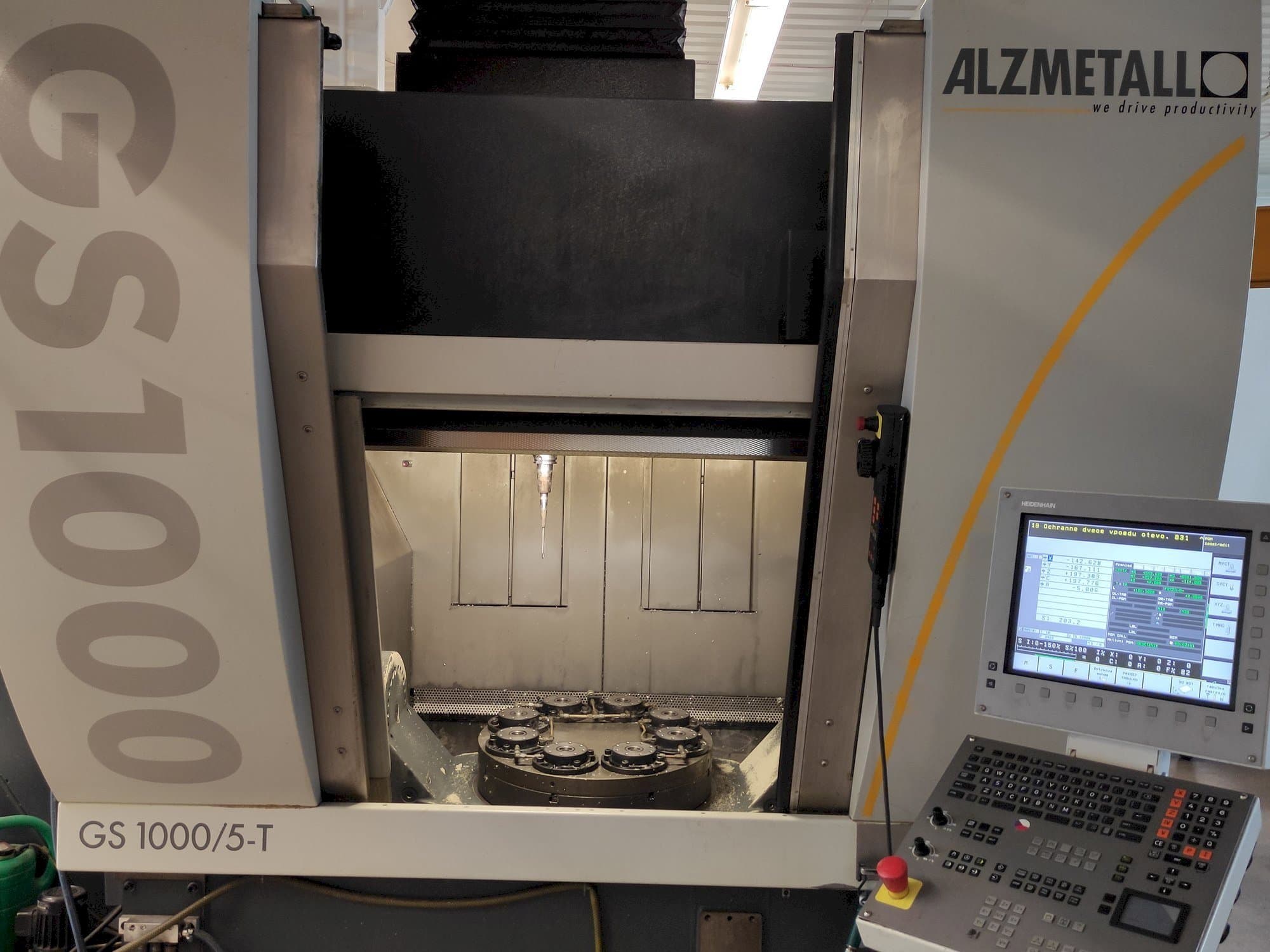

This Alzmetall GS 1000/5-T Vertical Machining Center was manufactured in Germany in 2011. It has been working for 45717 hours, of which 17732 are programming hours. This 5 axis machine is operated through a HEIDENHAIN iTNC 530 control unit. It works with a spindle speed up to 18000 rpm and a table diameter 630 mm. This machine has worked mainly in the Die & Mould industrie. It is in very good condition and has been regularly maintained.

Overview

brand: Alzmetall
year: 2011
MODEL: GS 1000/5-T
production hours: 45717
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Alzmetall GS 1000/5-T

General Data

Machine weight: 15500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 22 kW (S6-40% ED)
Number of axis: 5

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 800 MM
Z-AXIS Movement: 600 MM

Workpiece

Workpiece weight: 1000 KG

Table

Outer length: 630 MM

Media

Main electronic connection: 3 X 400 V 50 HZ
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

End product: Mould
Industries: Die & mould

Machine Benefits

Technical Machine Benefits:
- - Table diameter 630 mm
- - A axis +/- 120 degrees
- - C axis 360 degrees
- - Rapid traverse 45 m/min
- - Coolant
- - Cooling through spindle
- - Automatic tool changer: 126 positions
Qualitative Machine Benefits:
- - Very good condition, regularly maintained.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
