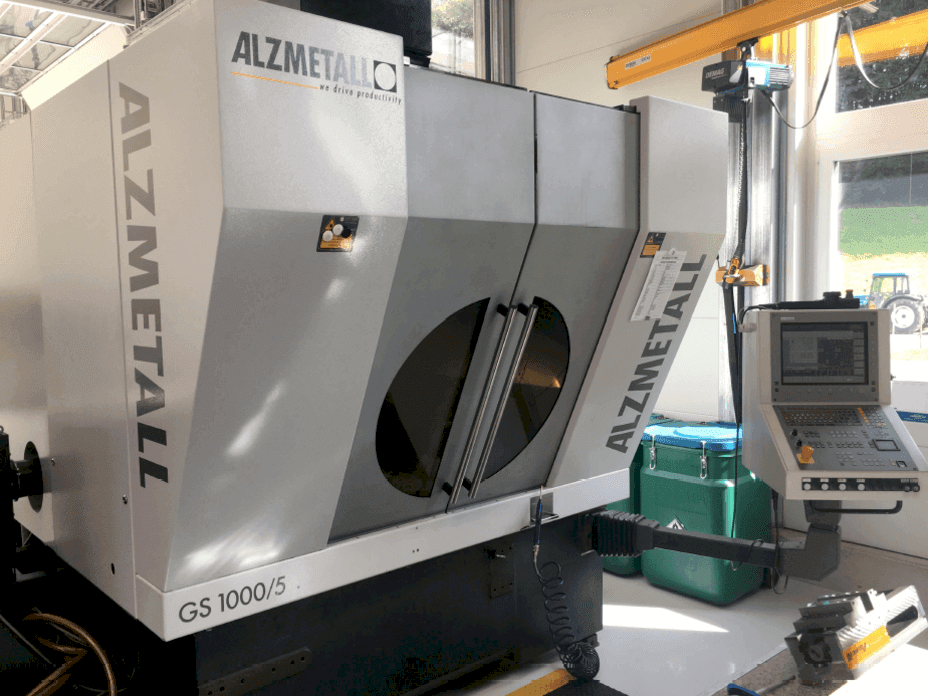

Alzmetall GS1000/5 Vertical Machining Center

This Alzmetall GS1000/5 Vertical Machining Center was manufactured in 2007 and has been operative for 22500 hours. Equipped with a HEIDENHAIN iTNC 530 Control unit, this machine incorporates a spindle speed up to 18000 rpm. An IKZ 50 bar with compact belt filter and a scraper belt conveyor are included among several other technical benefits.

Overview

brand: Alzmetall
year: 2007
MODEL: GS1000/5
production hours: 22500
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Alzmetall GS1000/5

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 800 mm
X-AXIS Feed Force: 10kN
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 600 mm

Table

Table load: 1000 kg

Tools

Type of tool holder: HSK63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ikz 50 bar with compact belt filter and scraper belt conveyor
- - Chip washing pistol
- - Oil mist extraction
- - Electric handwheel
- - 3d probe m&h
- - Blum tool measurement
- - Roof covering
- - Machine interior cladding in va
- - Tool magazine: 66-fold
Qualitative Machine Benefits:
- - Measuring protocol or laser measurement from 03/2017

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
