- ANAYAK HVM-6000 multiangular head Milling Machine

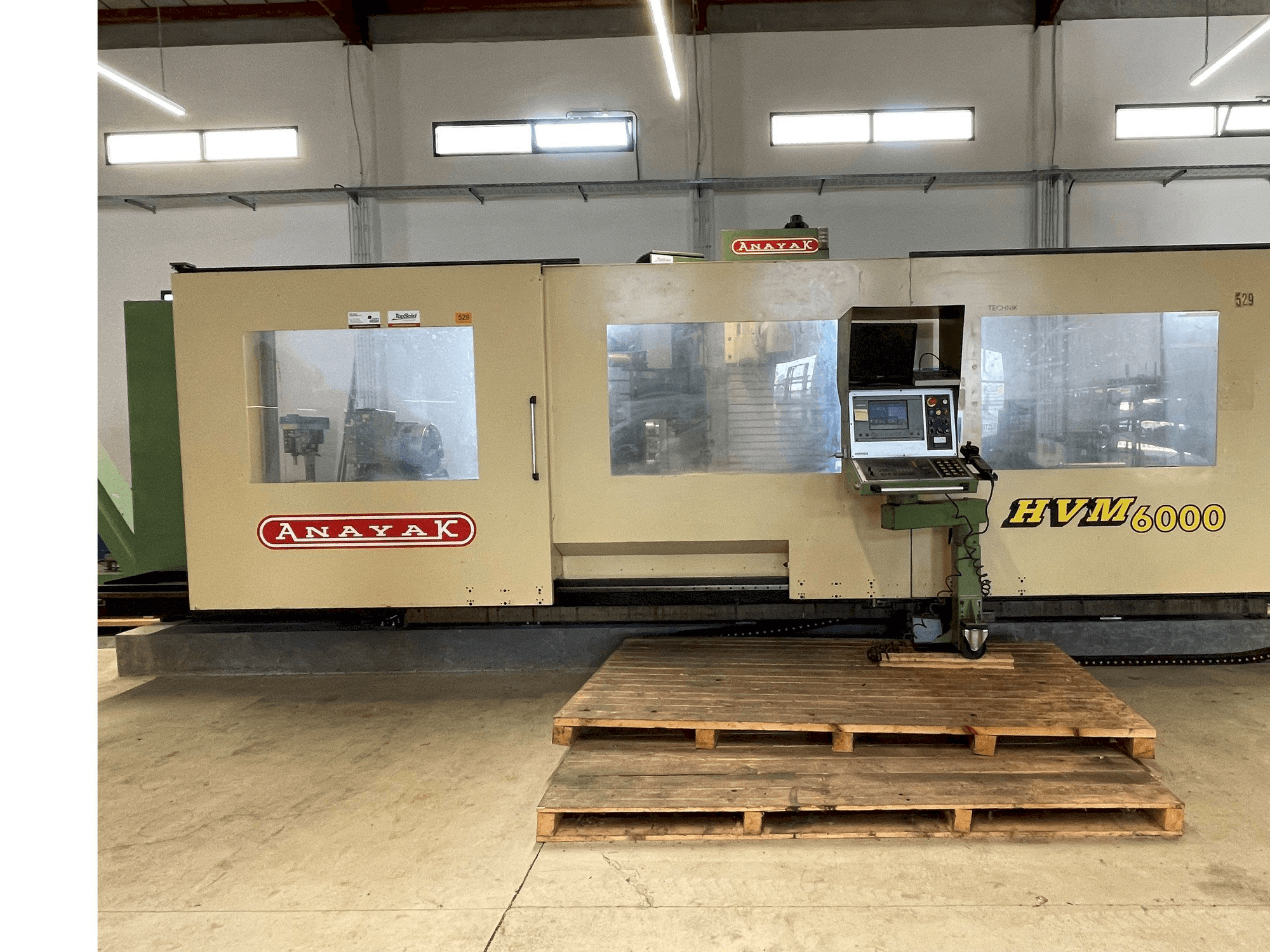

This ANAYAK HVM-6000 multiangular head Milling Machine was built in 2001 in Spain. It has been on for 15739 hours, of which 6542 are program run hours. With an HEIDENHAIN control unit, this 5 axis machine can works with a spindle speed range of 60 - 3000 rpm.
Overview
- brand: ANAYAK
- year: 2001
- MODEL: HVM-6000
- production hours: 15739
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
- availability: Sold
- control unit brand: Heidenhain
Technical Information - ANAYAK HVM-6000
Control Unit
- Brand: Heidenhain
Main drive
- Number of spindles: 1
- Spindle speed range: 60 - 3000 1/MIN
Movement
- X-AXIS Movement: 5300 mm
- Y-AXIS Movement: 1000 mm
- Z-AXIS Movement: 1050 mm
Table
- Outer length: 6000 mm
- Outer width: 1000 mm
Tools
- Type of tool holder: ISO-7388/1 DIN 69871-A
Additional Information
- Technical Machine Benefits:
- - Multiangular head 45º
- - Angular positioning b and c axes automatic
- - Hydraulical rotation blocking
- - Motor power 22,5/34 kw
- - Pump flow 24 l/min
- - Working pressure 130 bar
- - Tank capacity 250l
- - Spindle taper iso 50
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
