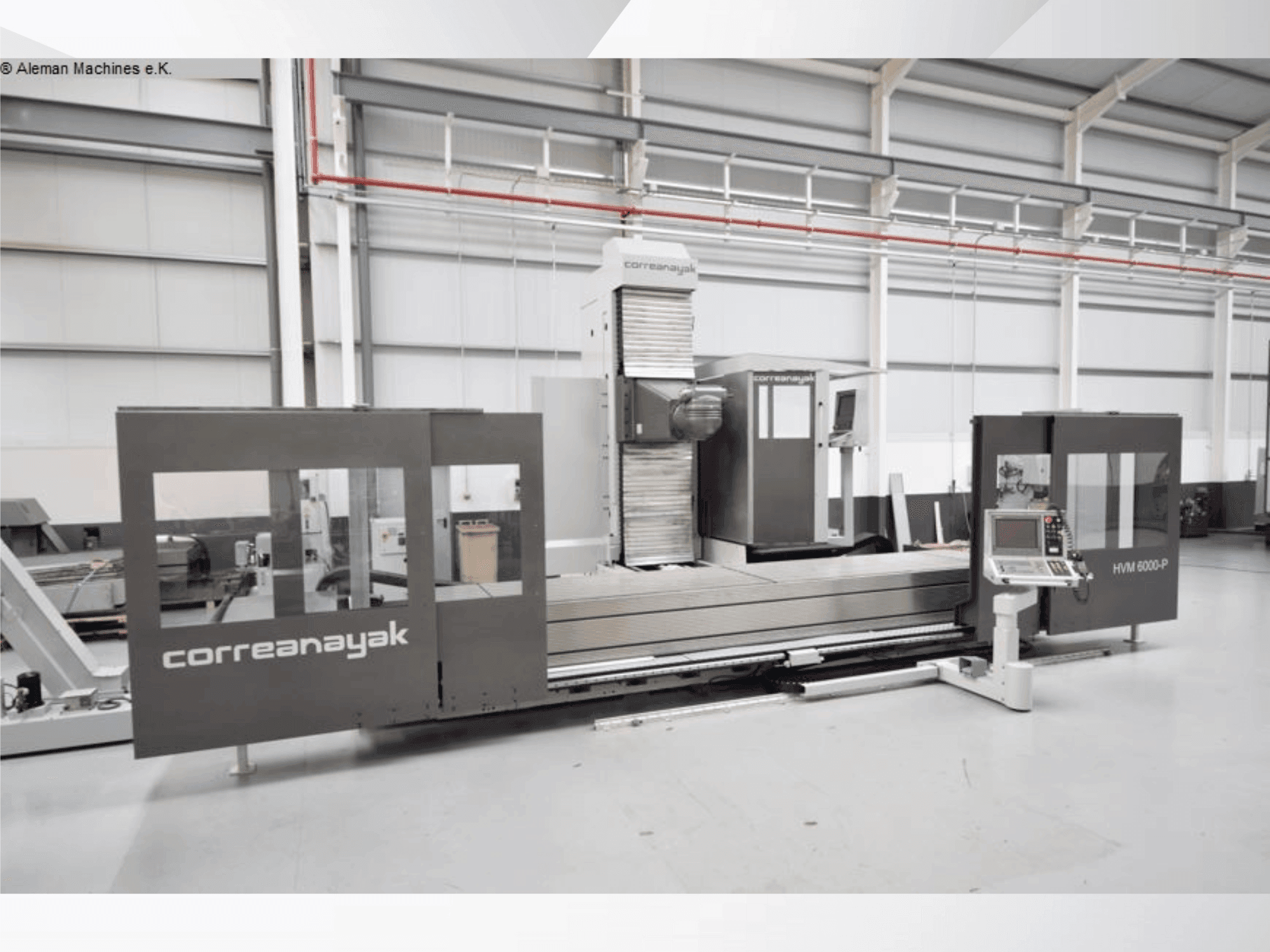

Front view of ANAYAK HVM 6000  machine

ANAYAK - HVM 6000DE-MIL-ANA-2004-00001

180,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis ANAYAK HVM 6000 universal machining center was manufactured in 2004. It features a HEIDENHAIN TNC 530 control, extensive travel capabilities with x-travel at 5,300 mm, y-travel at 1,500 mm, and z-travel at 2,000 mm. The machine has undergone a thorough overhaul, ensuring all components meet original specifications. If you are looking to get high-quality milling capabilities, consider the ANAYAK HVM 6000 machine we have for sale. Contact us for more information.

Overview

  • brand: ANAYAK
  • year: 2004
  • MODEL: HVM 6000
  • production hours: 30238
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - ANAYAK HVM 6000

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 530

Main drive

  • Spindle speed range: 60 - 5000 rpm 1/MIN
  • Spindle motor power: 28/38 kW
  • Tool taper: SK 50 DIN 69871

Movement

  • X-AXIS Movement: 5300 MM
  • Y-AXIS Movement: 1500 MM
  • Z-AXIS Movement: 2000 MM
  • A-AXIS Movement: +45 to -225° MM
  • B-AXIS Movement: +165 to -18° MM

Clamping unit

  • Clamping force: 8 kg KN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Mechanical checks of the x, y, and z axes (spindle repair, bearing replacement, belt replacement)
      • - Milling head checked (repaired by supplier)
      • - Telescopic cover of the x-axis checked and repaired
      • - Adjustments performed with laser renishaw and balbar renishaw
      • - Painting in the original color
      • - Spindle hours: 8,087 h / spindle outer diameter (front bearing): 140 mm / spindle passage: 90 mm
      • - Clamping surface: 6,000 x 1,200 mm
      • - Table height: 925 mm / working feed: 10 - 6,000 mm/min
      • - Rapid traverse (x and y axis): 15,000 mm/min / rapid traverse (z axis): 10,000 mm/min
      • - Drive motor torque: 1,880 (s1) / 1,385 (s2) nm / gear stages: 2
    • Qualitative Machine Benefits:
      • - Complete cleaning of the machine
      • - Disassembly of the machine
      • - Hydraulic components checked
      • - Lubrication systems checked
      • - Control cabinet checked
      • - Control panel replaced
      • - Polycarbonate doors replaced
      • - Testing of all functions
      • - General check of all components

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
