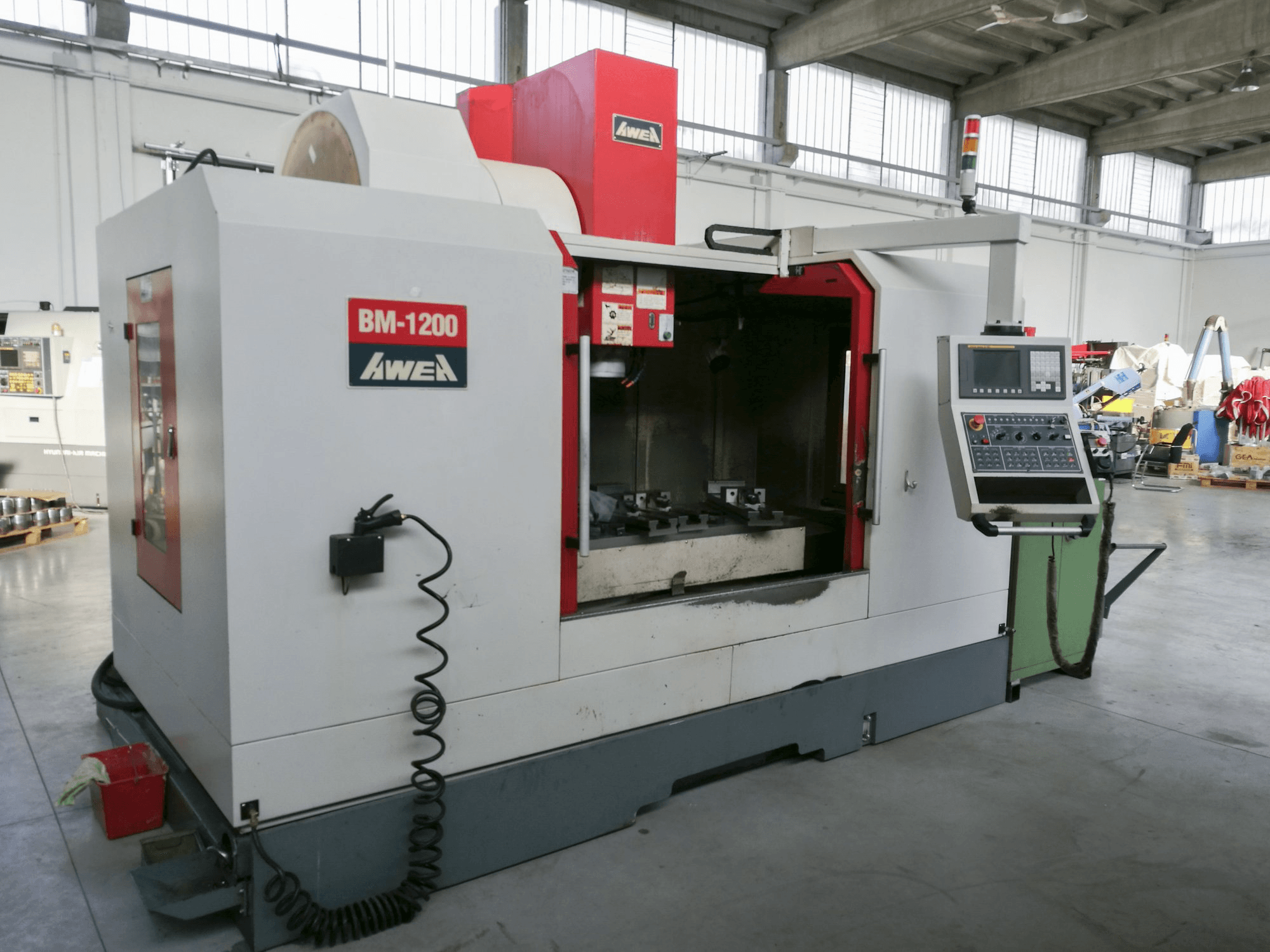

AWEA BM-1200 Machining Center

This AWEA BM-1200 Machining Center was manufactured in 2007 in Taiwan and is run through a FANUC 0i-MD Control unit. With a High Speed Automatic Tool Changer System that ensures a fast and reliable operation, this machine is ideal for heavy cutting thanks to its box-ways equipped axes.

Overview

brand: AWEA
year: 2007
MODEL: BM-1200
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - AWEA BM-1200

General Data

Measurements width: 3400 mm
Measurements depth: 2185 mm
Measurements height: 2717 mm
Machine weight: 7500 kg

Control Unit

Brand: FANUC
Model: 0i-MD

Main drive

Spindle speed range: 8000 1/min
Spindle motor power: 7.5/11 kW
Tool taper: 40 ISO

Movement

X-AXIS Movement: 1200 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 1300 mm
Outer width: 600 mm

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 90/150 mm
Max tool length: 250 mm

Media

Main electronic connection: 400 V / 50-60 Hz
Power consumption: 25 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
