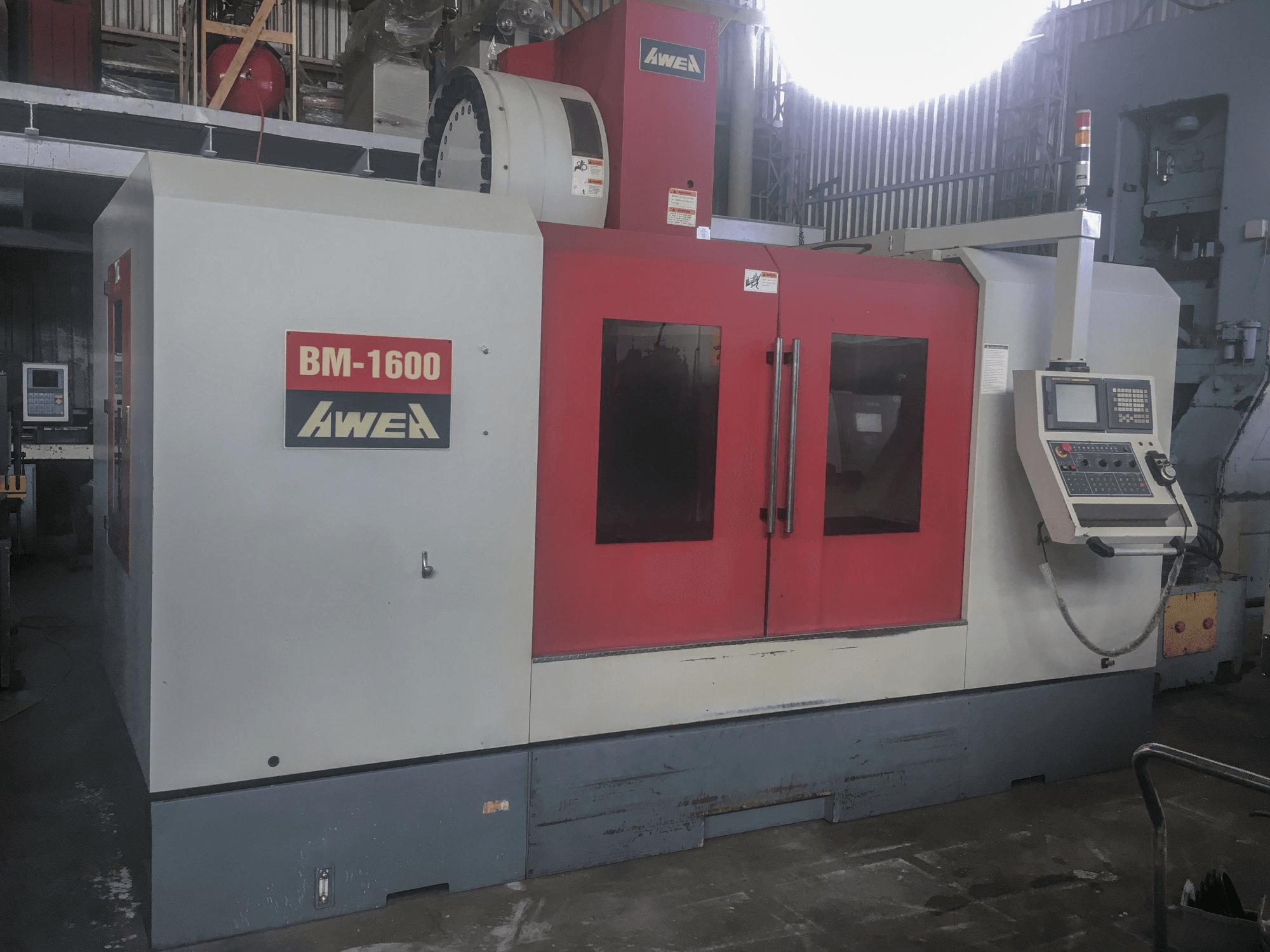

AWEA BM-1600 Vertical Machining Center

This AWEA BM-1600 Vertical Machining Center was made in Taiwan in 2006 and has a working record of 28729 production hours. Equipped with an FANUC 18i-MB Control unit, this robust model allows to process workpieces with up to 2000 kg of weight and enables tool changes in less than 7 seconds with a CT50 spindle taper. During the past, this machine has mainly processed steel, producing supplies for the automotive industry.

Overview

brand: AWEA
year: 2006
MODEL: BM-1600
production hours: 28729
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - AWEA BM-1600

General Data

Measurements width: 4400 mm
Measurements depth: 3000 mm
Measurements height: 3200 mm
Machine weight: 16000 kg

Control Unit

Brand: FANUC
Model: 18i-MB

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 2000 kg

Table

Outer length: 1700 mm
Outer width: 800 mm

Tools

Max weight: 7 kg
Max tool diameter: 130 / 250 mm
Max tool length: 300 mm

Media

Main electronic connection: 220 V / 3 P
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
