➤ Used AXA VCC 1200 | Vertical Machining Center For Sale

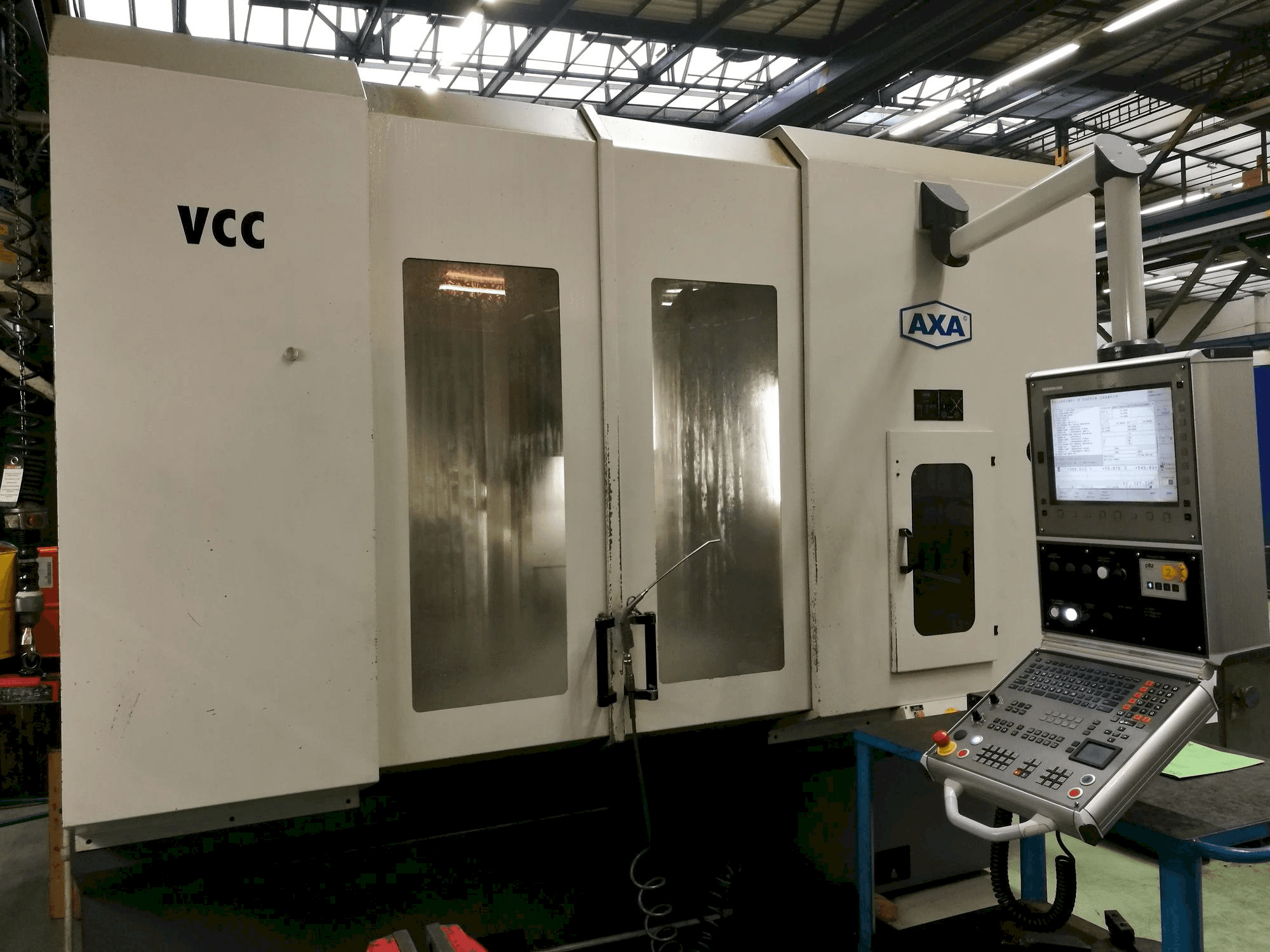

This AXA VCC 1200 Vertical Machining Center was made in the year 2012 in Germany. It has a production history of 32422 working hours since then. It is operated with a Heidenhain iTNC 530 control unit. This machine has a spindle speed range up to 12000 rpm. It includes a tool holders, a renishaw workpiece probe, and a Heidenhain TT 140 tool probe. It has been regularly maintained and serviced.

Overview

brand: AXA
year: 2012
MODEL: VCC 1200
production hours: 32422
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AXA VCC 1200

General Data

Measurements width: 3300 mm
Measurements depth: 600 mm
Measurements height: 700 mm
Machine weight: 9000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 700 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 85/135 mm
Max tool length: 400 mm
Type of tool holder: HSK-A63

Media

Power consumption: 55 kVA
Chip conveyor: Yes

Additional Equipment

- Tool holders
- Renishaw workpiece probe
- Heidenhain TT 140 tool probe

Additional Information

Machine history

Material type: Grey steel
Industries: Automotive, various

Machine Benefits

Technical Machine Benefits:
- - Spindle power (40/100% ed) 30/20 kw
- - Spindle torque (40/100% ed) 143/95 nm
- - Central oil lubrication
- - Cooling thru spindle
- - Flushing gun
- - Filtermist
- - Electronic handwheel
- - External & internal air cooling
Qualitative Machine Benefits:
- - Regularly maintained and serviced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
