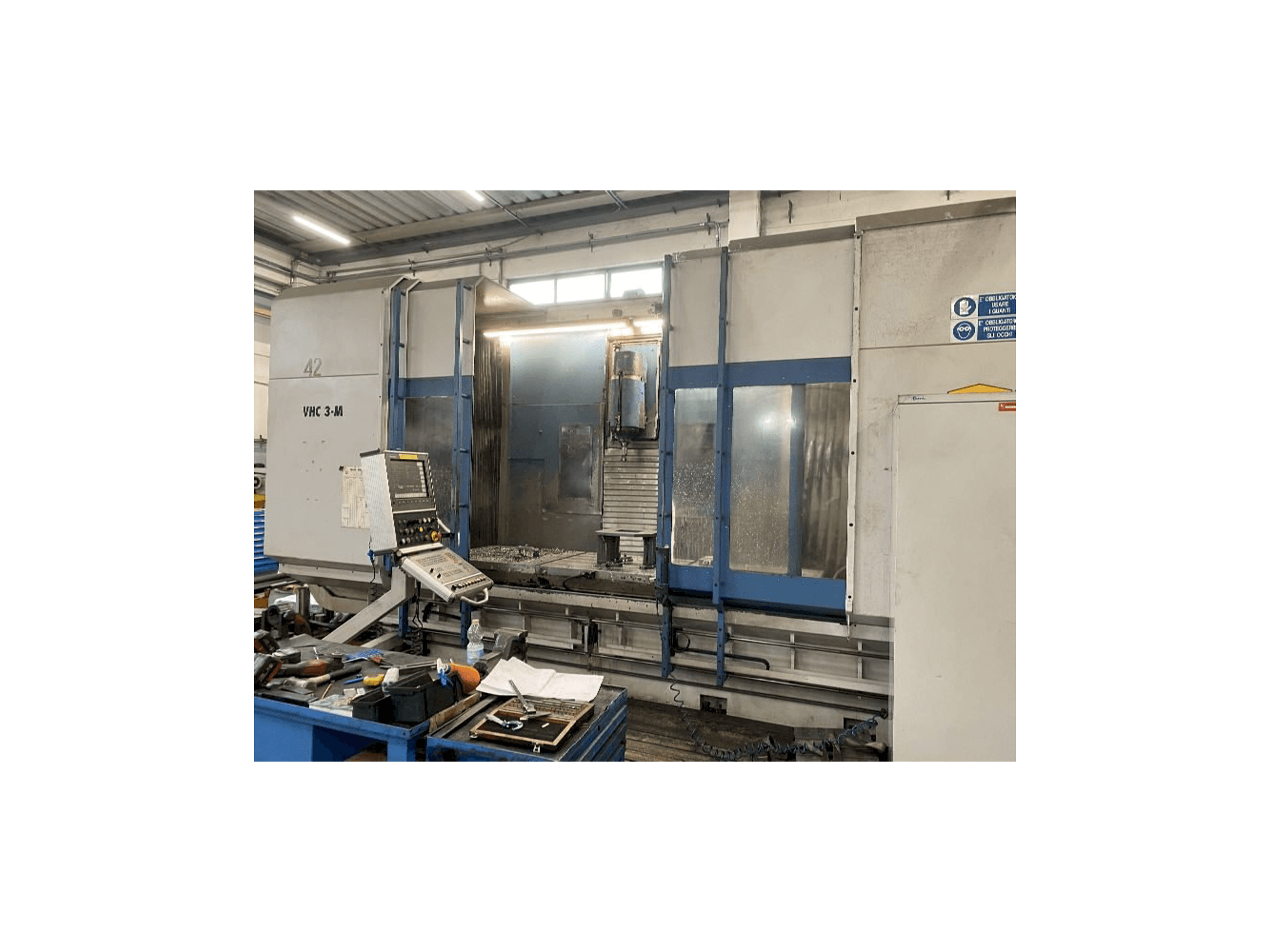

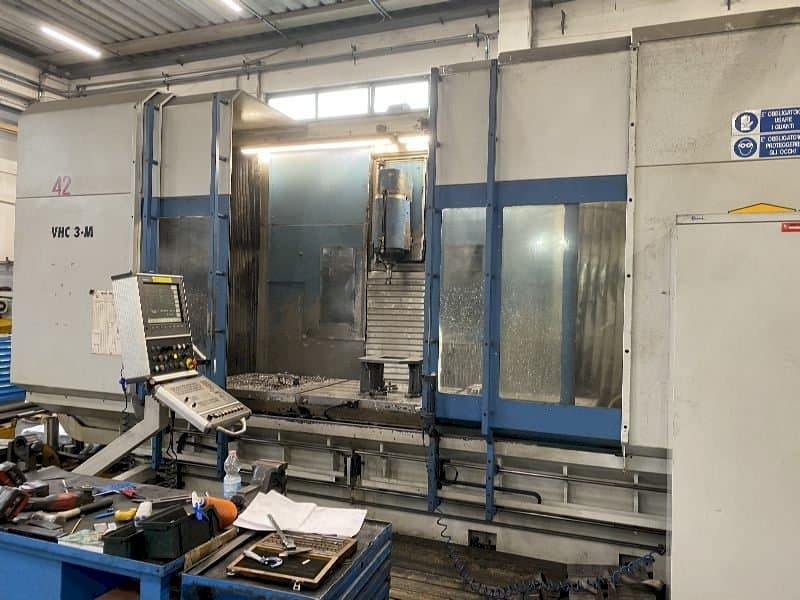

AXA VHC 3M/2E Milling Machine

This AXA VHC 3M/2E Milling Machine was manufactured in the year 2003 in Germany. It is equipped with a Heidenhain control unit. This 3 axis machine works with a spindle speed up to 6000 rpm and a spindle power of 17 KW. Includes a swivel head interpolating on the B axis AXA.

Overview

brand: AXA
year: 2003
MODEL: VHC 3M/2E
application type: Milling
Location: Italy
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AXA VHC 3M/2E

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 17 kW
Tool taper: HSK 63

Movement

X-AXIS Movement: 2600 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 3060 mm
Outer width: 800 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of tool pockets (2 atc) 22+22
- - Max. Load / max weight 800 kg
- - Maximum table load 1200 kg/m2
- - Swivel head interpolating on the b axis axa

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
