➤ Used AXA VHC 50 - XTS 2000 For Sale | gindumac.com

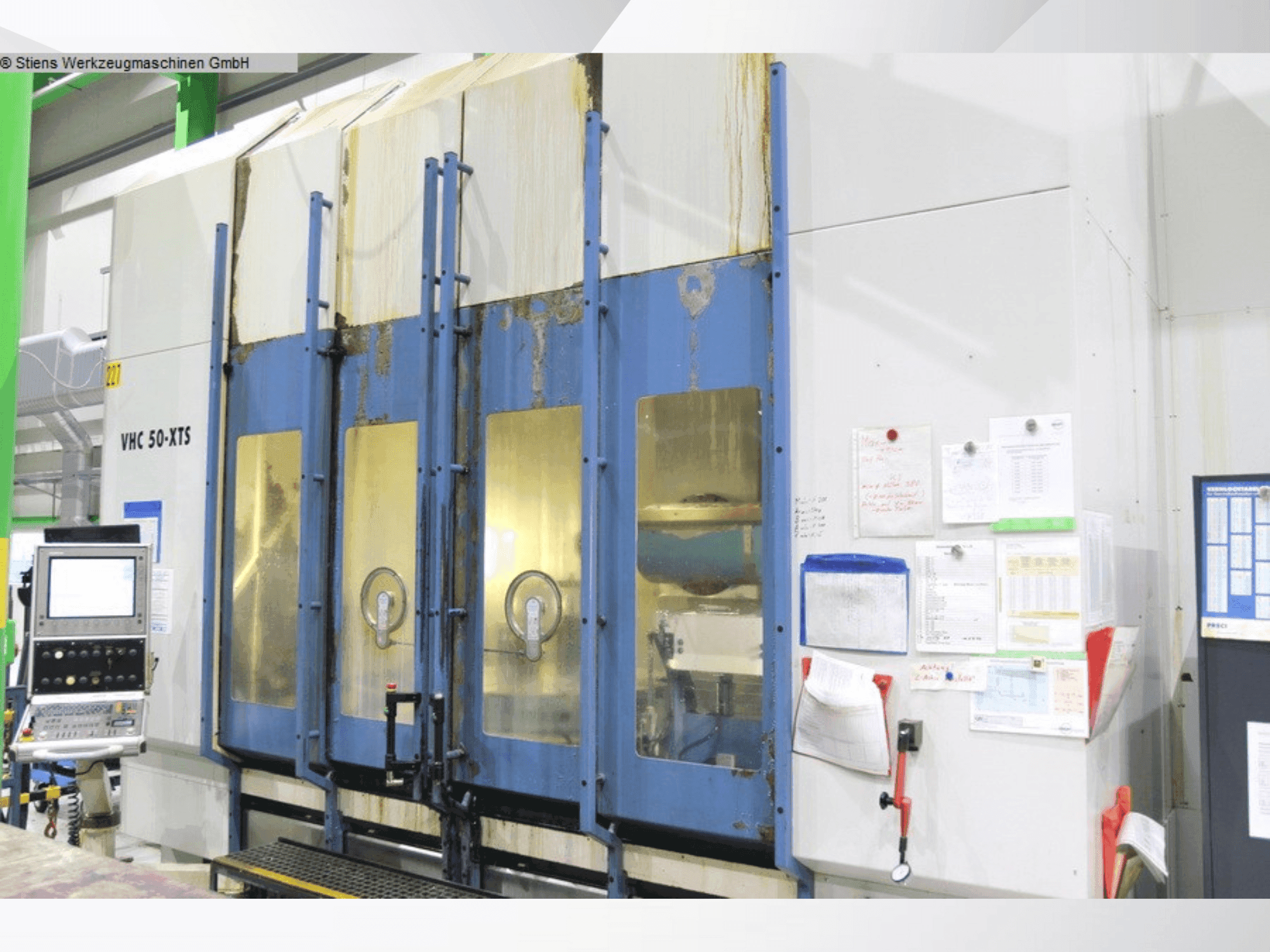

This 5-axis AXA VHC 50 - XTS 2000 universal machining centre was manufactured in 2008. It features a Heidenhain iTNC 530C control, a swivelling milling head with infinite positioning, and a NC rotary table. The machine offers a spindle speed up to 7,500 min/-1, a tool changer with 60 positions, and a high-pressure coolant system. Ideal for complex machining tasks, the AXA VHC 50 - XTS 2000 machine we have for sale. Contact us for further details regarding this universal machining centre.

Overview

brand: AXA
year: 2008
MODEL: VHC 50 - XTS 2000
production hours: 42554
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - AXA VHC 50 - XTS 2000

General Data

Measurements width: 7000 mm
Measurements depth: 10000 mm
Measurements height: 4000 mm
Machine weight: 33000 kg

Control Unit

Model: iTNC 530C
Brand: HEIDENHAIN

Main drive

Spindle speed range: 30 - 7.500 min-1 1/MIN
Spindle motor power: 25 kW
Tool taper: SK 50 DIN 69871A

Media

Chip conveyor: Yes

Additional Equipment

- X-Axis: 2000 mm (vertical), 1400/2 mm (horizontal) / Y-Axis: 900 mm (vertical/horizontal) / Z-Axis: 1200 mm (vertical), 940 mm (horizontal) / B-Axis: Swivelling milling head, +/- 115°
- Pick-up station
- Coolant system
- High-pressure cooling
- High-pressure cooling
- Paper belt filter
- Hydraulic unit
- Various tool holders approx. 10 pcs
- Measuring probe
- Electr. handwheel, Operating mode 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Infinitely variable positioning of the swivelling milling head
- - Rapid traverse (x/y/z): 30 / 30 / 25 m/min
- - Resolution: 0. 001°
- - Max. Tool diameter:with all spaces occupied: 110 mm
- - With free neighbouring box: 180 mm
- - Max. Tool length: 400 mm / max. Tool weight: 15. 0 kg
- - Changing time: approx. 8. 0 sec

Extra information

- Total power requirement: 75 kVA / Sold without tools and accessories / Distance between spindle nose and table:Vertical: 0 - 740 mm / Horizontal: 250 - 1.050 mm / Machine was newly painted inside and outside

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
