➤ Used AXILE G6i Machining Center For Sale | gindumac.com

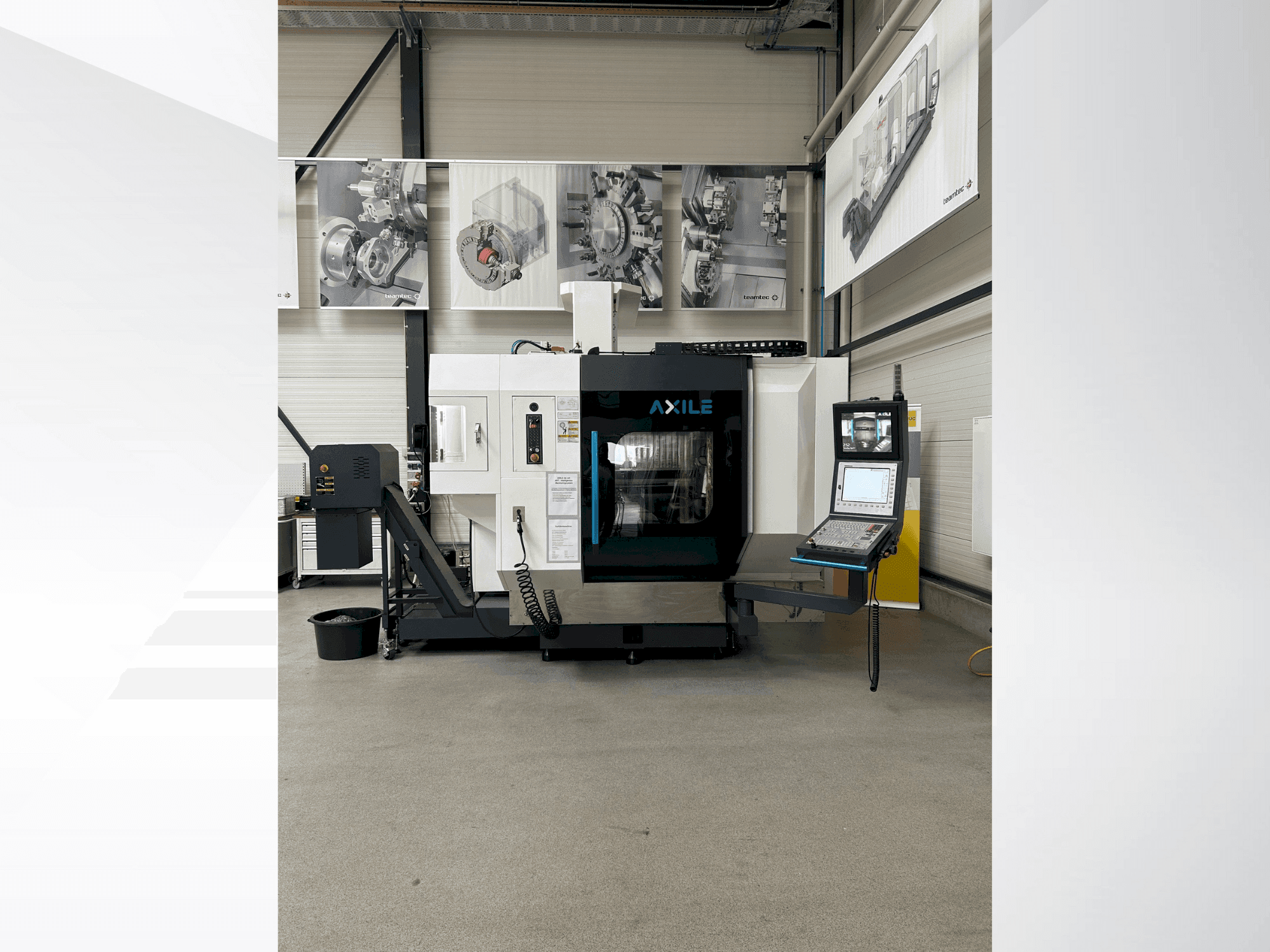

This 5-axis AXILE G6i vertical machining center was manufactured in 2022. Consider the opportunity to buy this AXILE G6i vertical machining center. Contact us for more information.

Overview

brand: AXILE
year: 2022
MODEL: G6i
production hours: 1200
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - AXILE G6i

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 25/40 kW
Number of axis: 5
Max payload: 600 kg

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 500 mm
A-AXIS Movement: ± 120° MM
C-AXIS Movement: 360° MM

Additional Equipment

- Hinged belt conveyor with coolant tank
- Flushing gun
- Air through the spindle
- The center of the 5 axes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Roller guides 45 mm
- - Automatic door for crane loading
- - Art™ - intelligent monitoring system
- - Tpc - tool-tip positioning control
- - Svs - spindle vibration supervision
- - Aac - axial accuracy control
- - Dcm dynamic collision monitoring
- - Tool center point management (tcp)
- - Working on inclined working plane (twp)
- - Torque: 87/135 nm

Extra information

- Air-conditioned control cabinet Signal lamp for end of cycle (3 colors) Workpiece Rotary/swivel table: Ø 600 mm with torque motor Payload: 600 kg Table Connections: 3x hydraulic and 1x pneumatic connection integrated Tools Tool Magazine: 80-position with Smart tool Preparation for BLUM laser tool Injection Unit HSK63 motor spindle with 20000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
