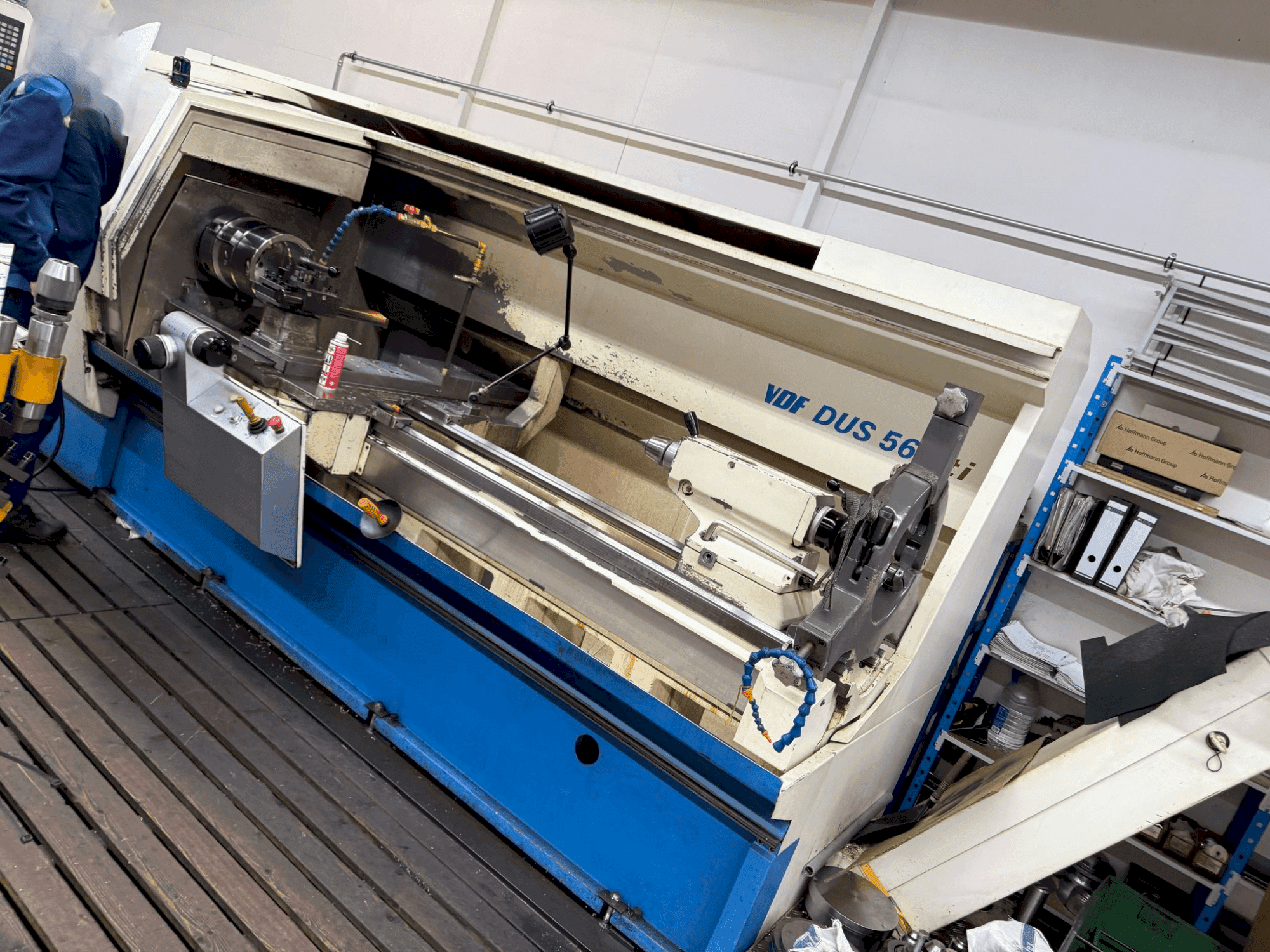

BOEHRINGER - VDF DUS 560 tiDE-TUR-BOE-2001-00001

Additional Equipment

• - Thread pitches: Metric threads (longitudinal, flat, and tapered) mm 0.1-400

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Circulation diameter over bed: 570 mm /circulation diameter over facing slide: 365 mm
  • - Movement of the facing slide: 345 mm/movement of the upper support: 125 mm / centre height over flat track: 280 mm
  • - Bed width: 380 mm / bed slide guide length: 520 mm / slide width: 225 mm / face slide length: 680 mm / top support width: 140 mm
  • - Pinol diameter: 100 mm / quill stroke: 190 mm / internal taper of the gun: mk5/ centre angle: 60 degrees
  • - Clamping and guiding device: face disc diameter: 560 mm / three- and four-jaw chucks diameter: 250... 315 mm/largest guide diameter of the fixed vice: 315 mm/largest guide diameter of the travelling vice: 160 mm
  • - Flying (max. Centre of gravity distance): 200 mm/from front edge of clamping device: 400 kg/with tailstock: 1000 kg/with riding vice and 1 setting vice: 1300 kg/with riding vice and 2 setting vices: 1600 kg
