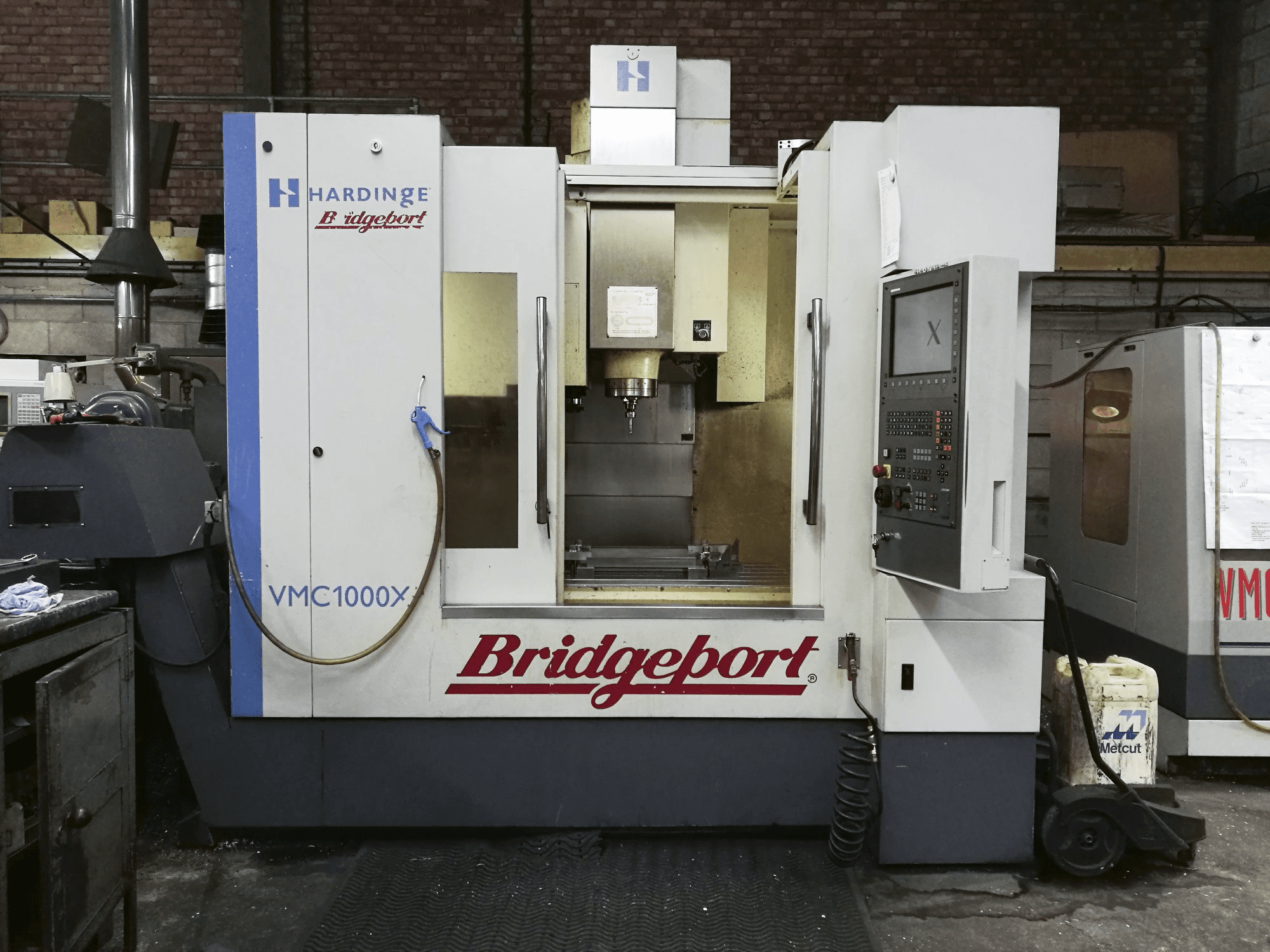

Bridgeport VMC XP3-1000 Machining Center

This Bridgeport VMC XP3-1000 Machining Center from 2004 is operated through a HEIDENHAIN iTNC 530 Control unit. Aside from its incorporated 30x tool changer, the equipment stands out for its high spindle speed range, of up to 12000 rpm.

Overview

brand: Bridgeport
year: 2004
MODEL: VMC XP3-1000
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC XP3-1000

General Data

Measurements width: 3192 mm
Measurements depth: 2819 mm
Measurements height: 2921 mm
Machine weight: 6700 kg

Control Unit

Model: iTNC 530
Release: 2003
Brand: HEIDENHAIN

Movement

X-AXIS Movement: 1020 mm
X-AXIS Rapid traverse: 43 m
X-AXIS Accuracy: 0.010
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 43 m
Y-AXIS Accuracy: 0.010
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 36 m
Z-AXIS Accuracy: 0.010

Table

Outer length: 1200 mm
Outer width: 600 mm
Number of tslots: 5

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 86 mm
Max tool length: 300 MM

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 30 kW
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
