Bridgeport - XR 1000IT-MIL-BRI-2008-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- ➤ Used BRIDGEPORT XR 1000 For sale | gindumac.com

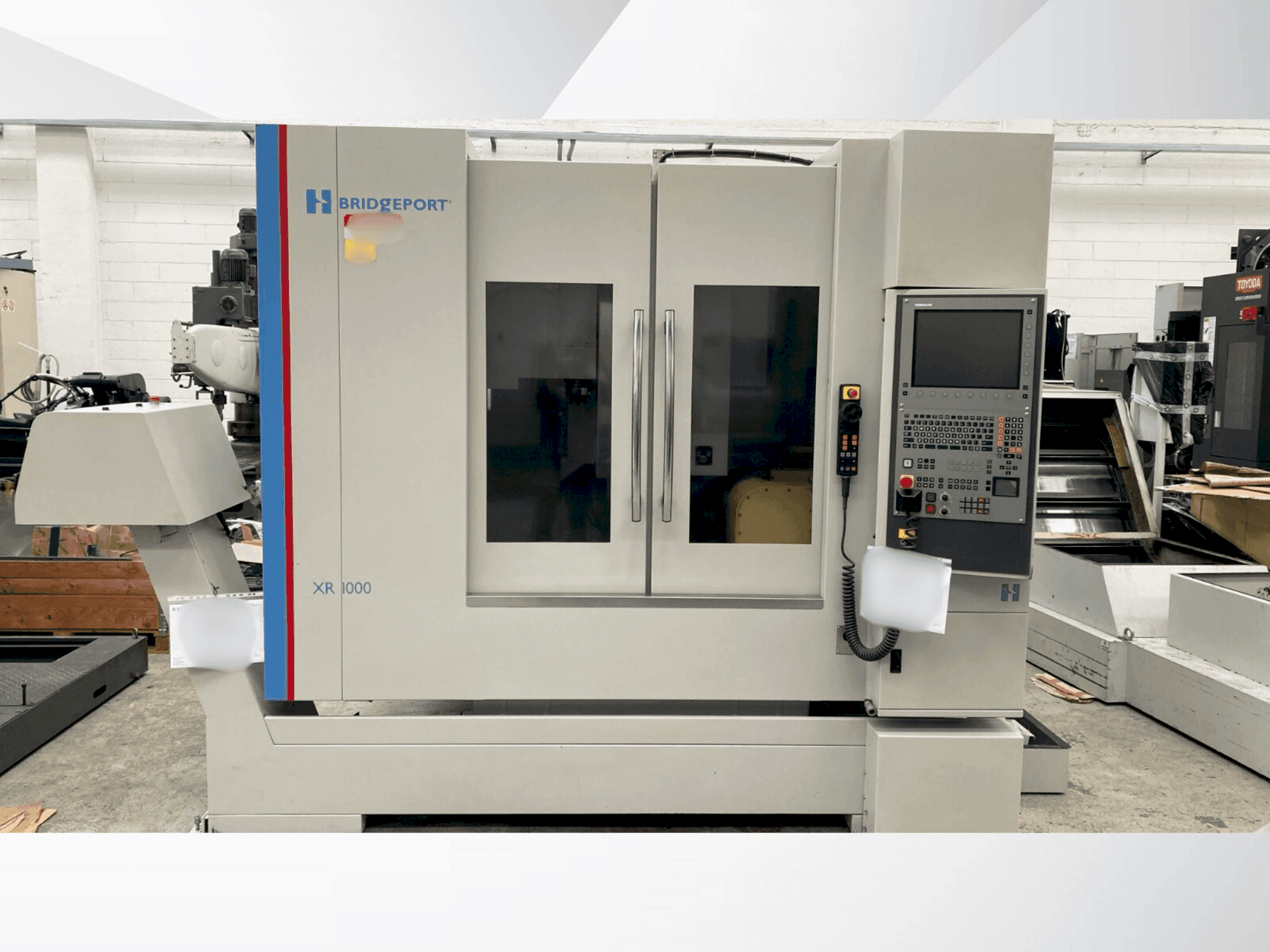

This 5-Axis BRIDGEPORT XR 1000 vertical machining center was manufactured in 2008, featuring a robust HEIDENHAIN iTNC 530 control system. It offers a spacious working area with X, Y, Z travels of 1020 mm, 610 mm, and 610 mm respectively, and supports a maximum workpiece weight of 900 kg. The spindle can achieve speeds up to 12,000 rpm, enhancing productivity. Consider this BRIDGEPORT XR 1000 vertical machining center ideal for precise and efficient machining. Reach out for more information.
Overview
- brand: Bridgeport
- year: 2008
- MODEL: XR 1000
- application type: Milling
- Location: Italy
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport XR 1000
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC 530
Main drive
- Number of spindles: 1
- Spindle speed range: 12,000 1/MIN
- Tool taper: BT-40
- Number of axis: 5
Movement
- X-AXIS Movement: 1020 mm
- Y-AXIS Movement: 610 mm
- Z-AXIS Movement: 610 mm
Workpiece
- Workpiece weight: maximum 900 kg
Table
- Outer length: 1200 mm
- Outer width: 600 mm
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool diameter: 125 mm
- Max tool length: 300 mm
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - 4th and 5th axis table
- - RENISHAW OMP 40-2 contact probe
- - Tool breakage probe
- - high pressure pump
Additional Information
- Technical Machine Benefits:
- - Enhanced machining capabilities with five-axis control and high-speed spindle.
- - Efficient tool management with quick tool change times and extensive tool monitoring.
- Qualitative Machine Benefits:
- - Increased precision and reliability with renishaw probes and heidenhain control.
- - Capability to handle heavy and complex workpieces efficiently.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
