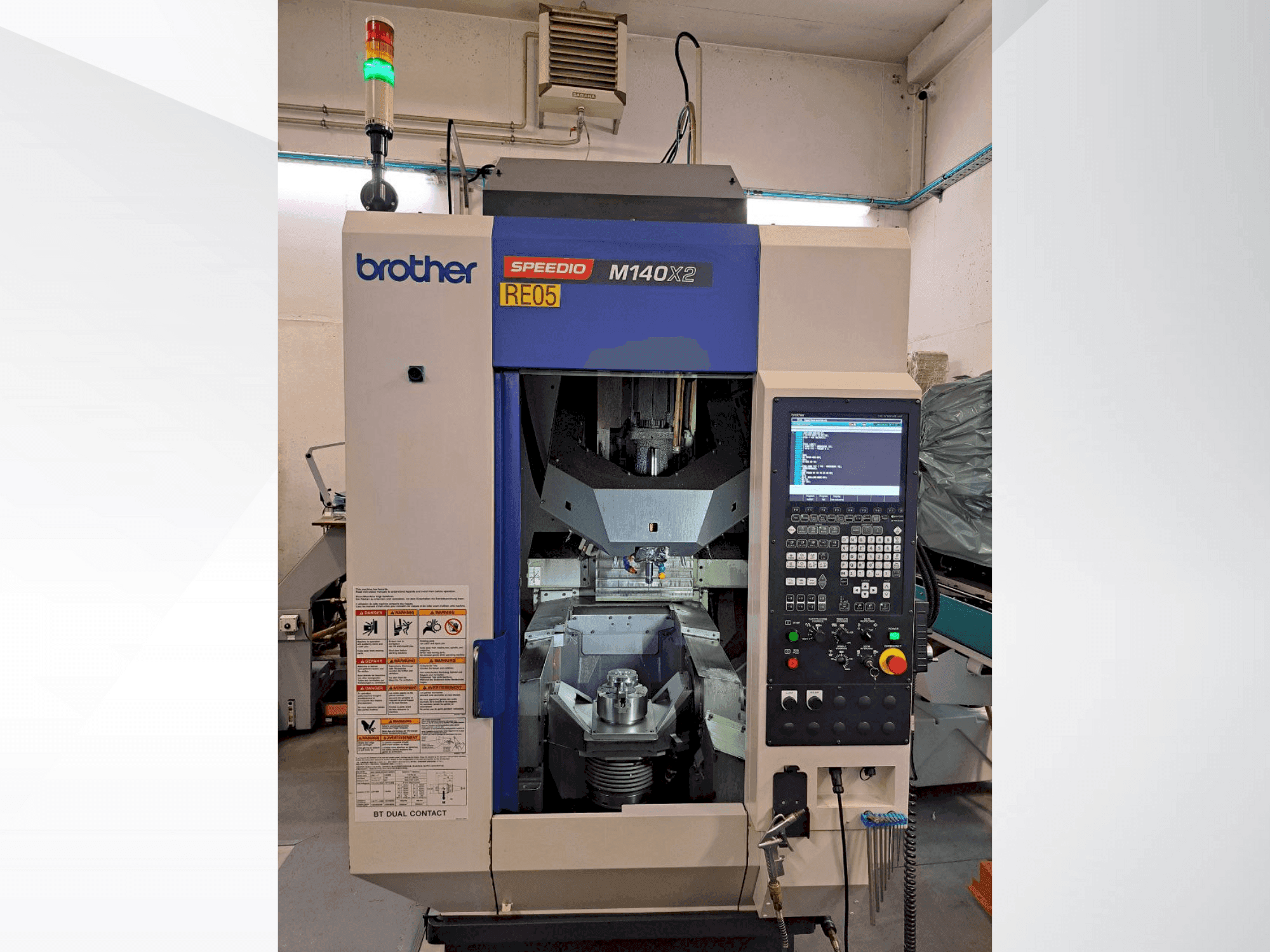

Used Vertical Machining Centre BROTHER Speedio M140X2 - 2017 - for sale | gindumac.com

This 5-Axis vertical machine center was manufactured in 2017. With a machining area of 200mm x 440mm x 305mm, the BROTHER Speedio M140X2 offers precise positioning accuracy of 0.006mm and repeatability of less than 0.004mm across its 5 axes. Equipped with a D140 spindle, it boasts a tool change speed of 0.9 seconds and a tool storage capacity of 22 tools. Invest in this BROTHER Speedio M140X2 vertical machine center for efficient and accurate machining operations. Contact us for further information.

Overview

brand: Brother
year: 2017
MODEL: SPEEDIO M140X2
production hours: 2609
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Brother SPEEDIO M140X2

General Data

Machine weight: 2603 KG

Main drive

Spindle speed range: Maximum 6000 1/MIN
Tool taper: 7/24 taper No. 30

Tools

Slots in storage: 22
Max weight: 3 KG
Max tool diameter: 80 MM
Max tool length: 200 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machining area dimensions: x axis - 200 mm, y axis - 440 mm, z axis - 305 mm
- - Spindle type: d140
- - Tool change speed: 0. 9 seconds
- - Power supply: ac v±10%, 50/60hz±1hz
- - Recommended air pressure: 0. 5 mpa
- - Recommended floor space: 1,280 mm x 3,829 mm
- - Positioning accuracy: 0. 006 mm for x, y, z axes
- - Repeatability positioning: less than 0. 004 mm for x, y, z axes
- - Tool selection mode: random shortcut
- - Main spindle power (10 minutes / continuous): 7/24 taper no. 30, 10. 1 kw / 9. 5 kw at 10,000 revolutions per minute (option)

Extra information

- -Axis movement motors: 1 kW for X, Y, Z axes -Rotary spindle motor: 0.4 kW -Power supply: 10.1 kW at 10,000 revolutions per minute (option)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
