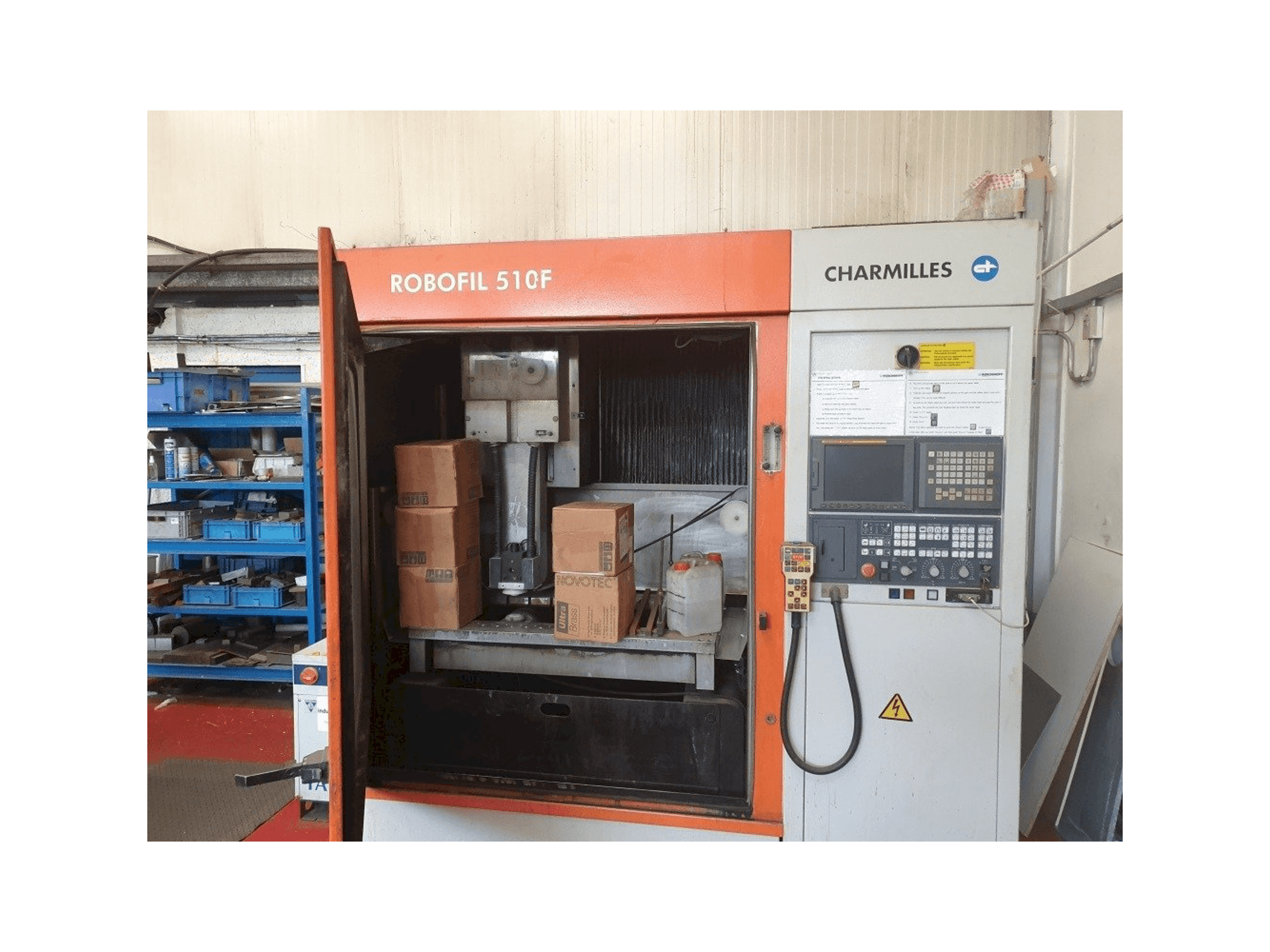

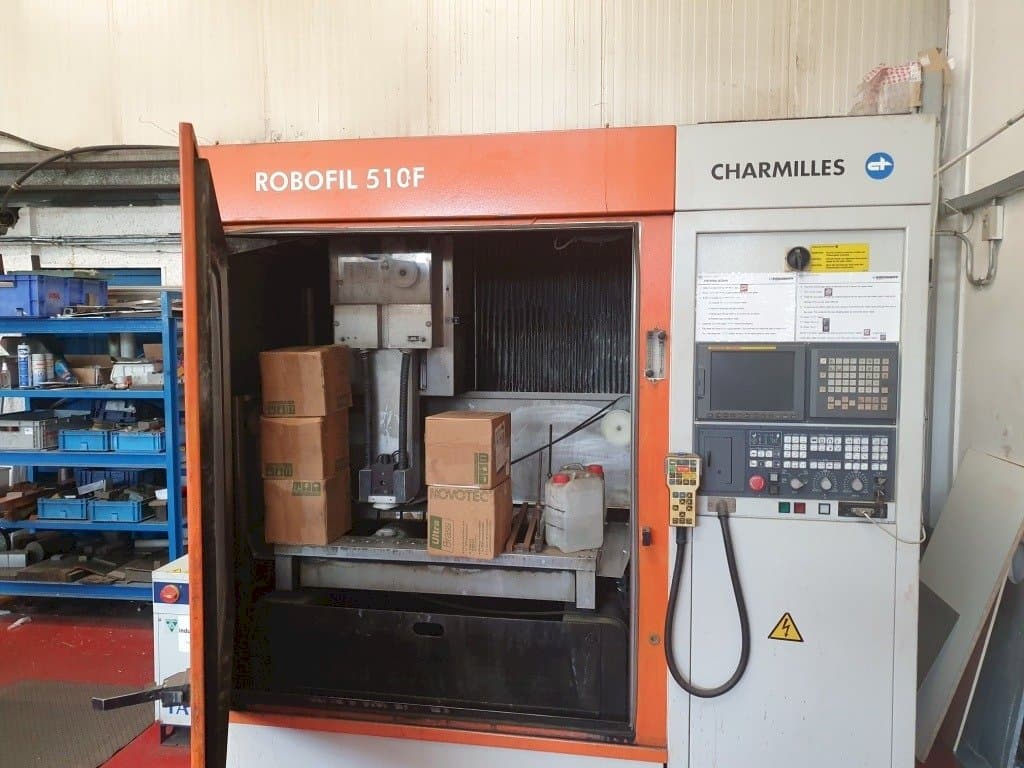

CHARMILLES Robofil 510F Erosion Machine

This CHARMILLES Robofil 510F Erosion Machine was made in the year 2001 in Switzerland. It has a production record of only 1560 working hours since then. It is equipped with a Fanuc control unit. This machine incorporates a wire diameter of 0,1 - 0,3 mm and a U/V travels of 700/400mm. It includes a Tae Evo 020 Chiller, and a Novotec Wire Spools as additional equipment. It has been well maintained.

Overview

brand: CHARMILLES
year: 2001
MODEL: Robofil 510F
production hours: 1560
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
availability: Sold
control unit brand: FANUC

Technical Information - CHARMILLES Robofil 510F

General Data

Measurements width: 2100 mm
Measurements depth: 2100 mm
Measurements height: 2230 mm
Machine weight: 3350 kg

Control Unit

Brand: FANUC

Main drive

Wire diameter: 0,1- 0,3 mm

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 m MM
Z-AXIS Movement: 400 mm

Workpiece

Workpiece x: 1200 mm
Workpiece y: 700 mm
Workpiece z: 400 mm
Workpiece weight: 1500 kg

Media

Main electronic connection: 400 V
Power consumption: 10 kVA

Additional Equipment

- Tae Evo 020 Chiller
- Novotec Wire Spools

Additional Information

Machine history

End product: Automotive parts
Industries: Automotive industry

Machine Benefits

Technical Machine Benefits:
- - U/v travels: 700/400mm
- - Taper capacity: 0 to 30 degrees
Qualitative Machine Benefits:
- - Very low hours
- - Well maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
