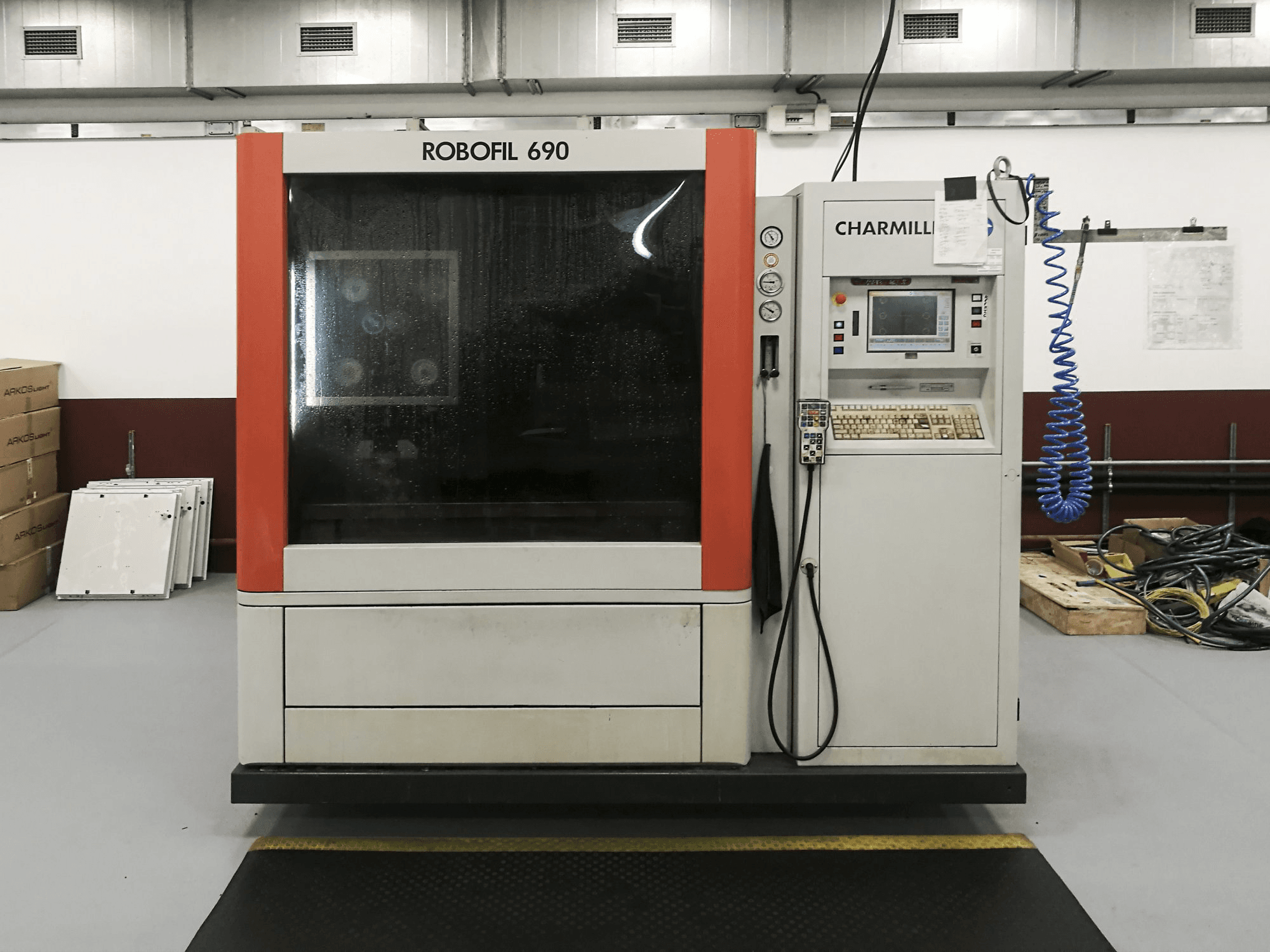

CHARMILLES ROBOFIL 690 Erosion Machine

This CHARMILLES ROBOFIL 690 Erosion Machine was manufactured in Switzerland in 2004 and has a working record of 24992 production hours. Operated through a CHARMILLES control unit, this machine has mostly processed steel, hard metals and aluminium for the automotive and medical industry. The big working table size, maximum workpiece weight, as well as the automatic wire feed, make this machine a high capacitive and productive equipment.

Overview

brand: CHARMILLES
year: 2004
MODEL: ROBOFIL 690
production hours: 24992
application type: EDM
Location: Spain
machine type: Wire EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES ROBOFIL 690

General Data

Measurements width: 2550 mm
Measurements depth: 1950 mm
Measurements height: 2000 mm
Machine weight: 4700 kg

Control Unit

Release: B9F2-0005
Interface: Windows
Remote control: Yes
Brand: CHARMILLES

Movement

X-AXIS Movement: 800 mm
X-AXIS Working Feed: 900 mm/min
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 900 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 900 mm/min
U/V Movement: 60 mm

Workpiece

Workpiece x: 1300 mm
Workpiece y: 910 mm
Workpiece z: 400 mm
Workpiece weight: 2300 kg

Media

Main electronic connection: 400 V / 50 Hz / 3P
Power consumption: 10 kVA
Air pressure: 6 bar
Dielectic tank: 250 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
