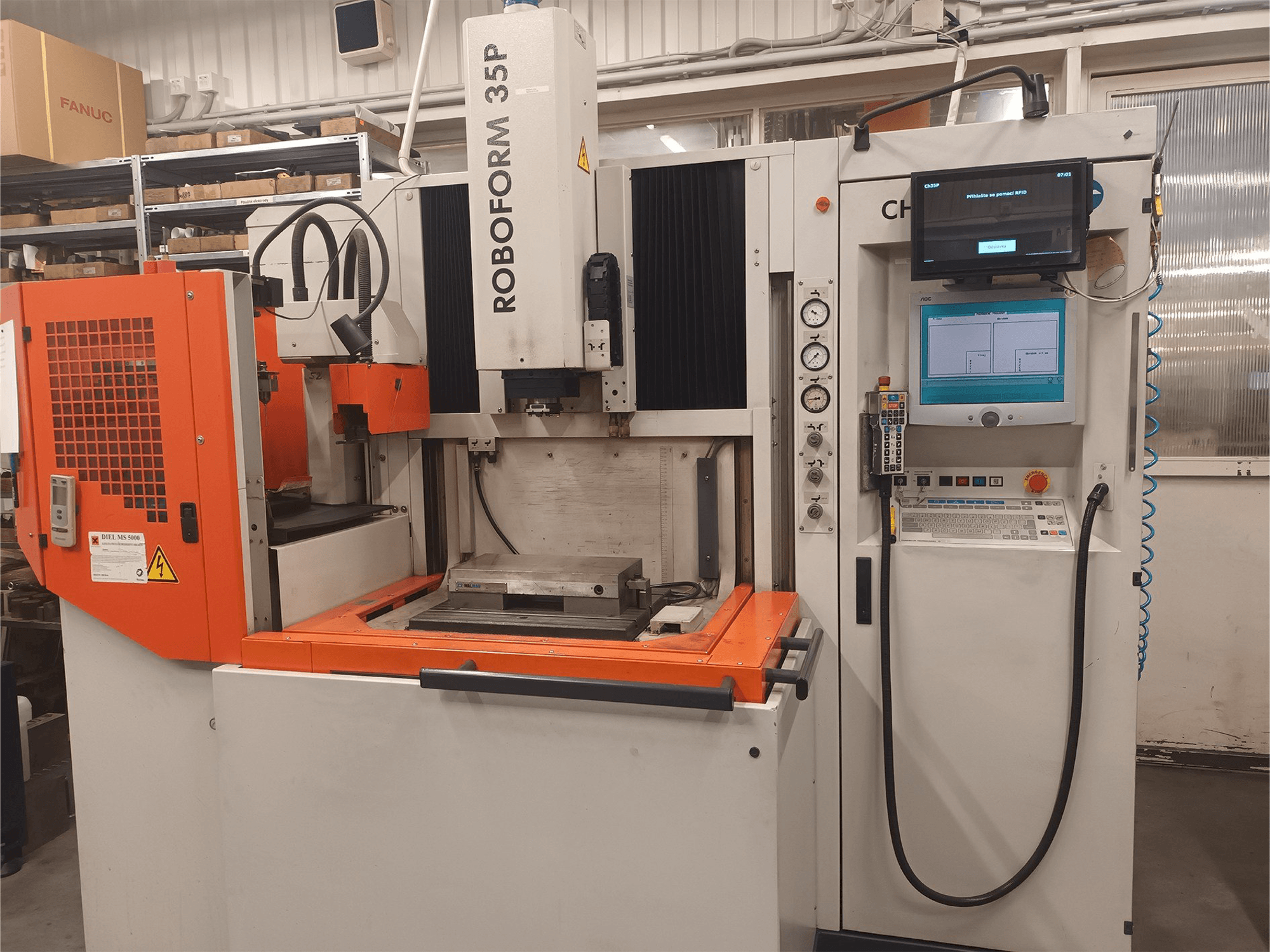

CHARMILLES ROBOFORM 35P EDM machine

This CHARMILLES ROBOFORM 35P EDM machine was made in Switzerland in 2001. It has been working for 37328 hours. It operates with a table dimensions of 500 x 400 mm. It comes with an electrode clamping EROWA ITS50 and electrode magazine of 20 positions.

Overview

brand: CHARMILLES
year: 2001
MODEL: ROBOFORM 35P
production hours: 37328
application type: EDM
Location: Czech Republic
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - CHARMILLES ROBOFORM 35P

General Data

Machine weight: 2500 KG

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece x: 780 mm
Workpiece y: 530 mm
Workpiece z: 300 mm
Workpiece weight: 800 KG

Table

Outer length: 500 mm
Outer width: 400 mm

Media

Main electronic connection: 3 x 380V / 50Hz
Power consumption: 5 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electrode clamping erowa its50
- - Electrode magazine: 20 positions
- - Dialectric tank volume: 800 litres
- - Tank dimensions: 780 x 500 mm
- - Distance between chuck and table min/max : 140/450 mm
- - Die sinking edm machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
