Chevalier 1418 VMC-40 Vertical Machining Center

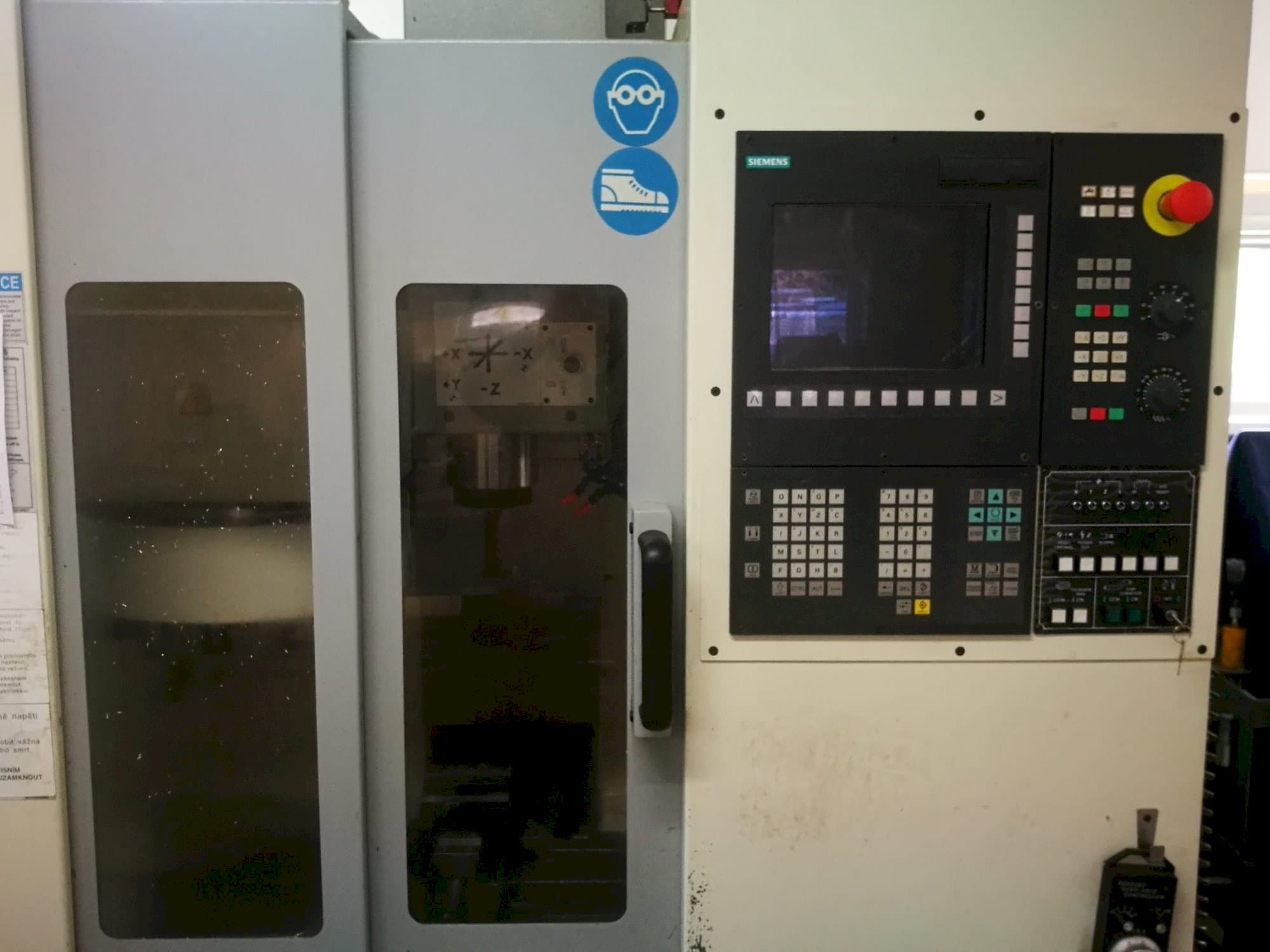

This Chevalier 1418 VMC-40 Vertical Machining Center was manufactured in the year 2009 in Taiwan. It has a production history of approximately 18000 working hours. It is operated through a Siemens 802 DSL control unit. It can work with a spindle speed up to 10000 rpm. It includes a chip conveyor, and a 10 tool holders.

Overview

brand: Chevalier
year: 2009
MODEL: 1418 VMC-40
production hours: 18000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Chevalier 1418 VMC-40

General Data

Measurements width: 2470 mm
Measurements depth: 1500 mm
Measurements height: 2110 mm
Machine weight: 2000 kg

Control Unit

Brand: SIEMENS
Model: 802 DSL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 8.5 kW (S6-40%)

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 380 mm

Workpiece

Workpiece weight: 150 kg

Table

Outer length: 700 mm
Outer width: 320 mm
Number of tslots: 3
Distance between: 100 mm

Tools

Slots in storage: 12
Max weight: 3 kg
Max tool diameter: 76 mm
Type of tool holder: 40

Media

Main electronic connection: 400 V
Power consumption: 12 kVA
Chip conveyor: Yes

Additional Equipment

- 10 tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis ready
- - Handwheel
- - Rapid feedrate on x, y, z axes 36/36/36 m/min.
- - Cutting feedrate 10000 mm/min.
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
