Chiron Fz 08w Vertical Machining center

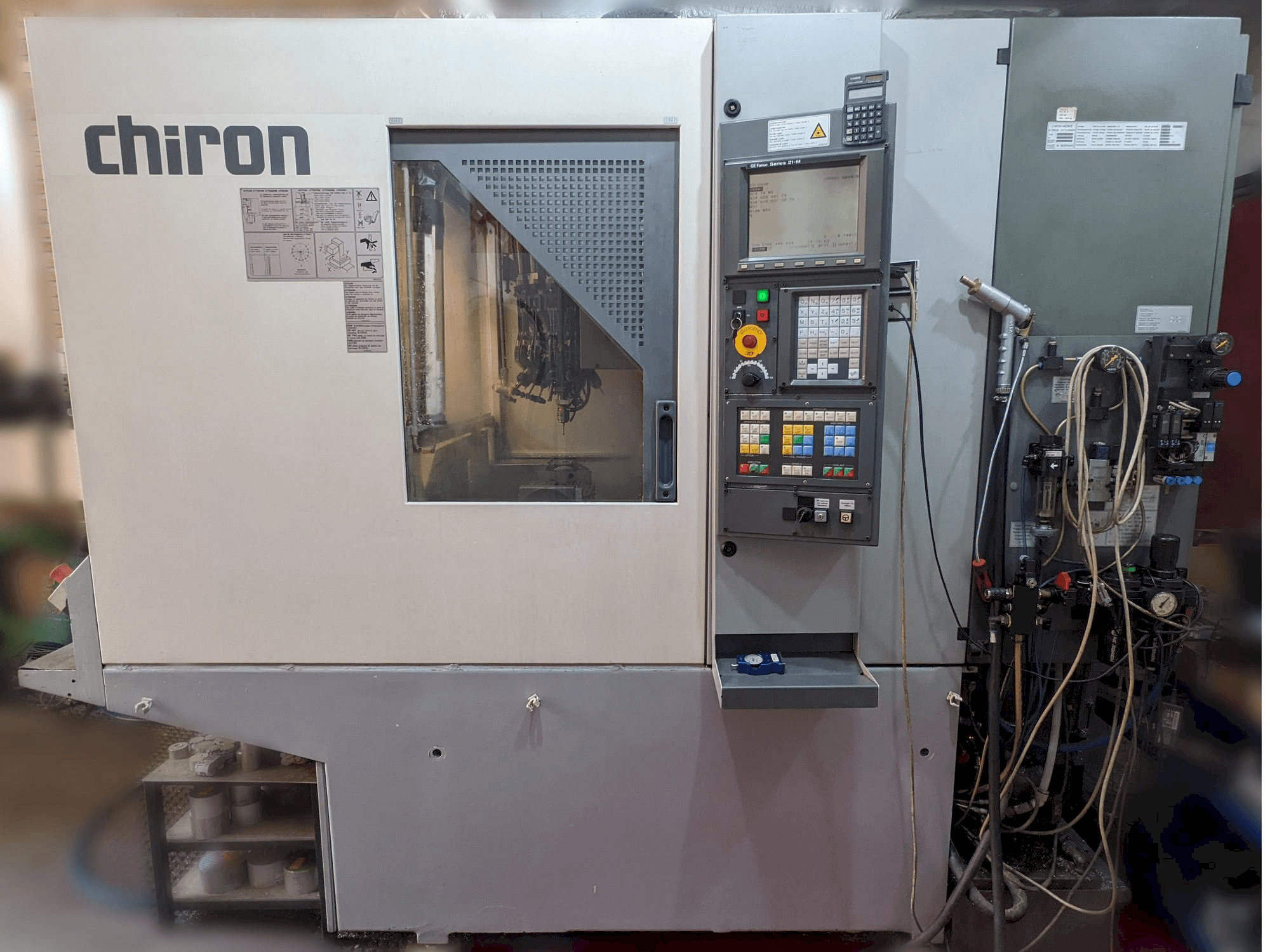

This Chiron Fz 08w Vertical Machining Center was manufactured in the year 1998 in Germany. It is equipped with a Fanuc 21-M control unit and has 4 axis. The machine has a spindle speed of 15000 rpm, is in good condition and well maintained.

Overview

brand: CHIRON
year: 1998
MODEL: Fz 08w
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - CHIRON Fz 08w

General Data

Machine weight: 2200 kg

Control Unit

Model: 21-M
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 50 kg

Table

Outer length: 460 mm
Outer width: 300 mm

Tools

Type of tool holder: HSK-A32

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Good status

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
