- CHIRON FZ15 W HS Vertical Machining Center

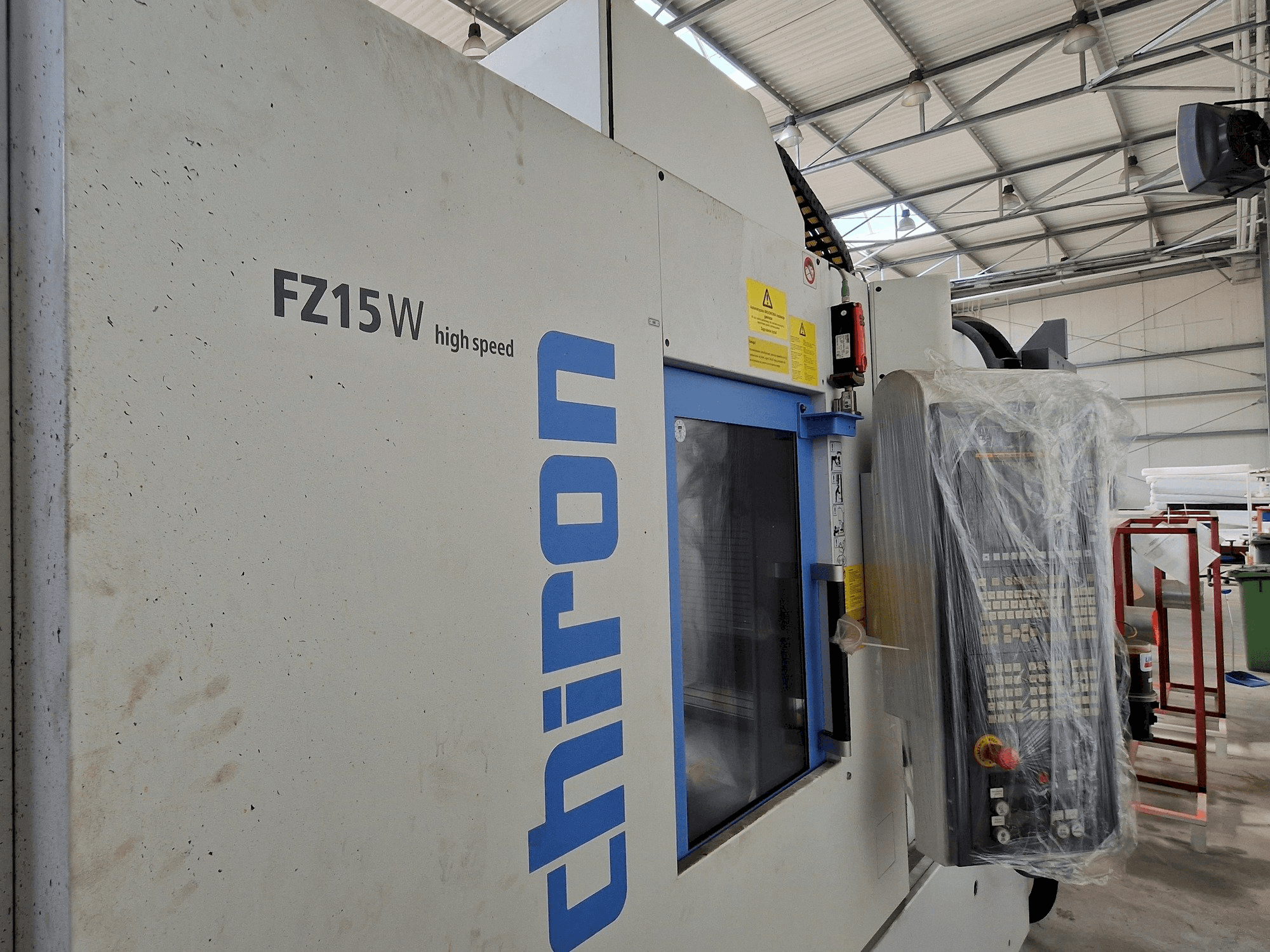

This CHIRON FZ15 W HS Vertical Machining Center was manufactured in the year 2019 in Germany and has only 28 working hours. It is equipped with a FANUC 31i-B5 control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.
Overview
- brand: CHIRON
- year: 2019
- MODEL: FZ15 W HS
- production hours: 28
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - CHIRON FZ15 W HS
General Data
- Machine weight: 8000 kg
Control Unit
- Brand: FANUC
- Model: 31i-B5
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 15 kw
- Number of axis: 5
Movement
- X-AXIS Movement: 550 mm
- X-AXIS Rapid traverse: 75 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 75 m/min
- Z-AXIS Movement: 425 mm
- Z-AXIS Rapid traverse: 75 m/min
Table
- Outer length: 2660 mm
- Outer width: 400 mm
- Max distance between vertical spindle and table: 240 mm
- Table load: 300 kg
Tools
- Number of stations: 20
- Max tool diameter: 175 mm
- Max tool length: 300 mm
- Type of tool holder: HSK-A 63 DIN 69893
Media
- Main electronic connection: 400V / 50Hz
- Power consumption: 16 kva
Additional Information
- Technical Machine Benefits:
- - Workpiece changing device: 0 / 180°
- - Single spindle headstock
- - Spindle torque max: 95 nm
- - 5 axis path control / 10. 4” color screen
- - Single lamp for 3 signals
- - Flashing gun
- - Oil free maintenance unit
- - Cooling system
- - Chip conveyor
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
